Setup step-by-step

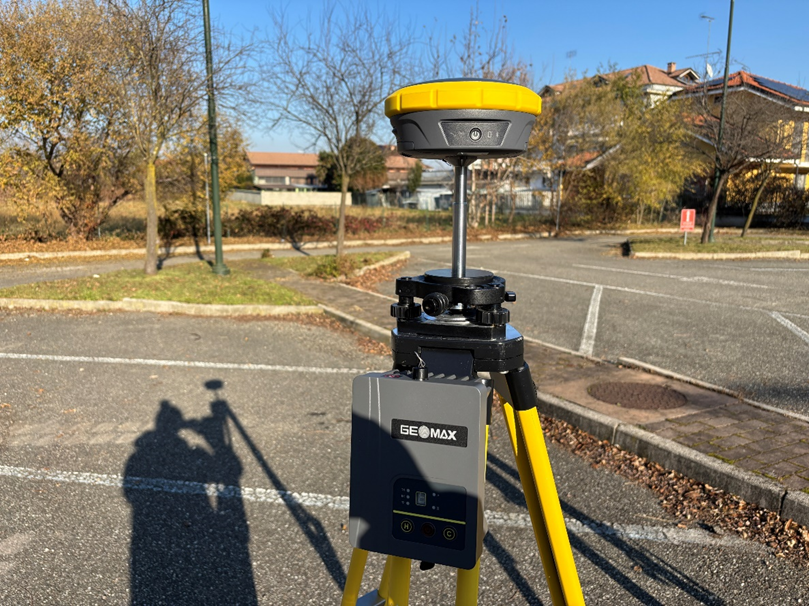

  1. Setup the GNSS base receiver and the TRU35 on a tripod.

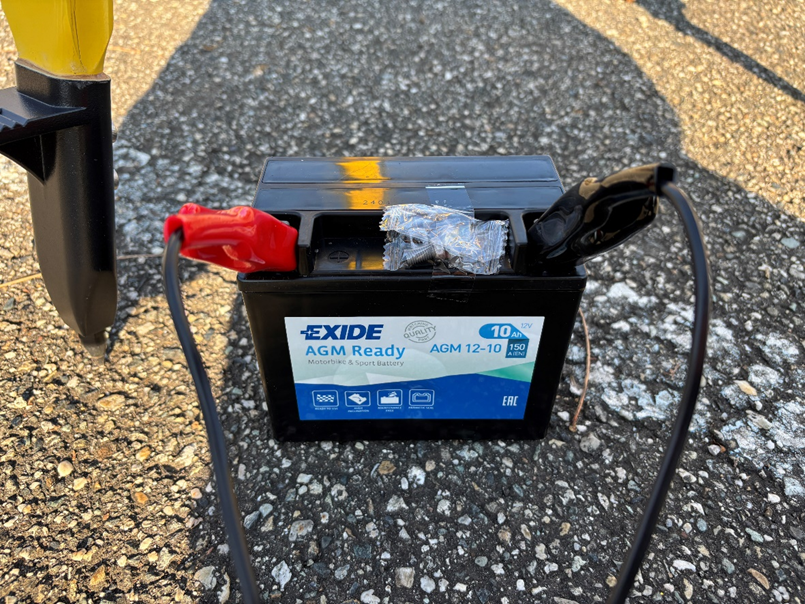

  2. Connect the crocodile clamps to the external battery.

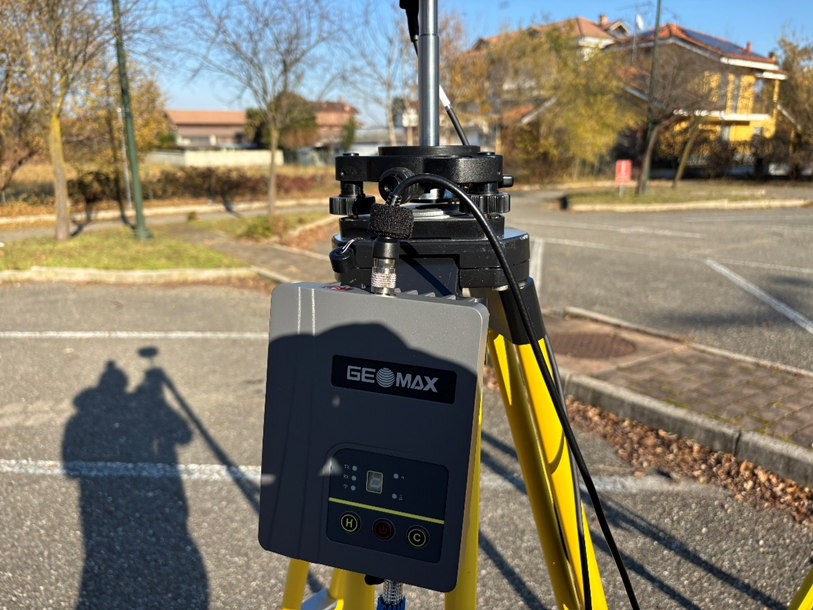

  3. Connect the cable from the external battery to the TRU35 Port 1.

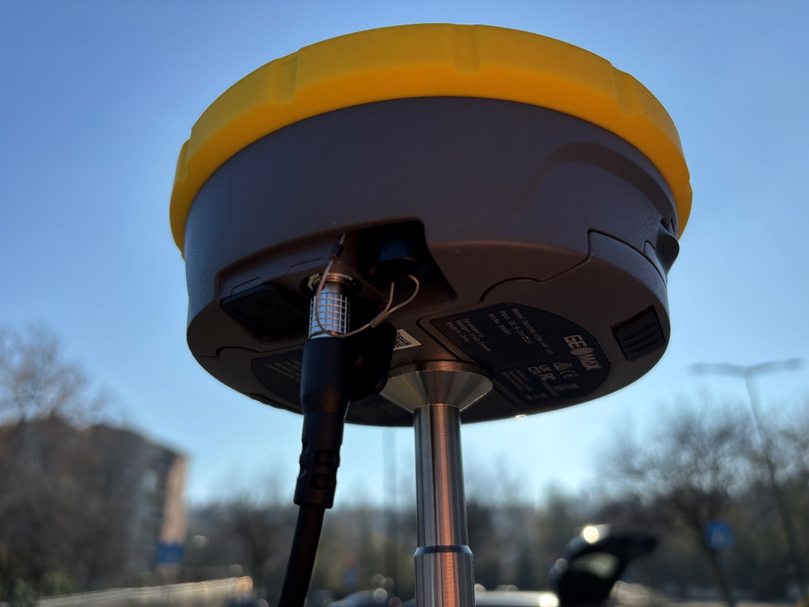

  1. Connect the other connector of the cable to the GNSS receiver. If a Zenith15/25/40 is used, connect the adaptor.

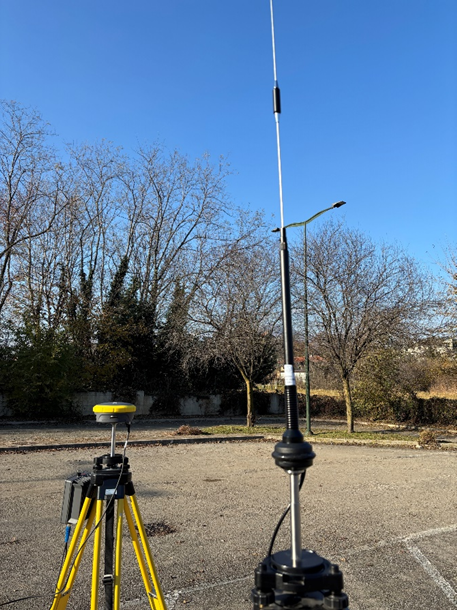

  1. Setup the UHF radio antenna on a tripod or on a GNSS pole.

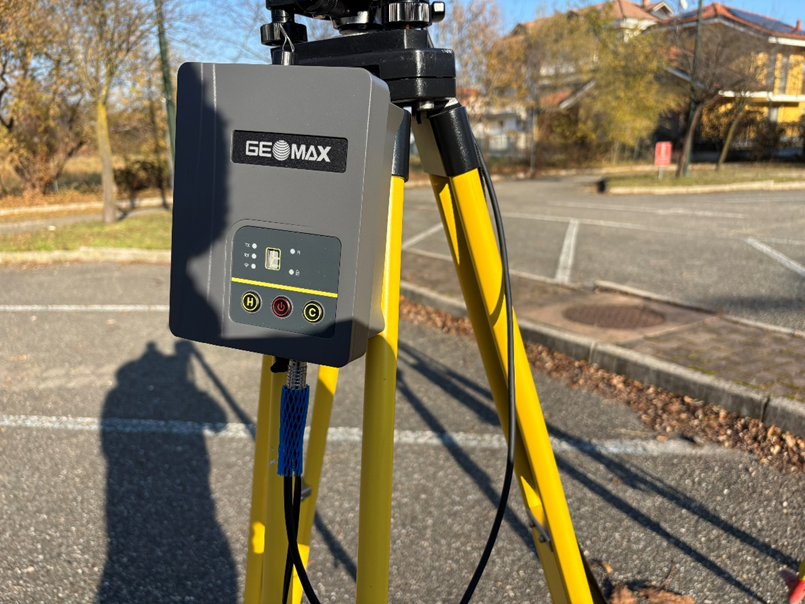

  1. Connect the UHF antenna cable to the TRU35 radio to Port 2.


  1. Turn on the GNSS receiver base and the TRU35.

  1. Configure the TRU35 radio with Android Zenith Manager application.

  1. Configure and start the GNSS base using X-PAD.

  1. TRU35 starts to transmit RTK corrections.

  1. Configure and connect the GNSS rover to receive RTK corrections.
