3D mesh

Creates a 3D mesh from points clouds. It can be used on a limited set of points to create a 3D surface of any shape.

The maximum number of points that can be used to generate the surface is 100.000; if the number of selected points overpass the limit they will be decimated.

• Click Cloud.

• Use the commands to select the points to be used to generate the mesh.

• Click 3D mesh.

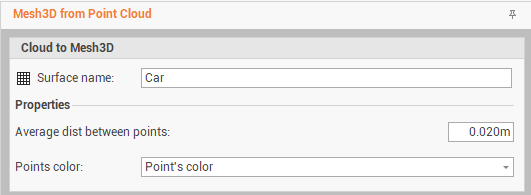

• This opens a new panel on the right.



  • Surface name: the name of the generated mesh.

  • Average dist between points: the average distance between the points to consider to generate the mesh.

  • Points color: how the mesh is colored.

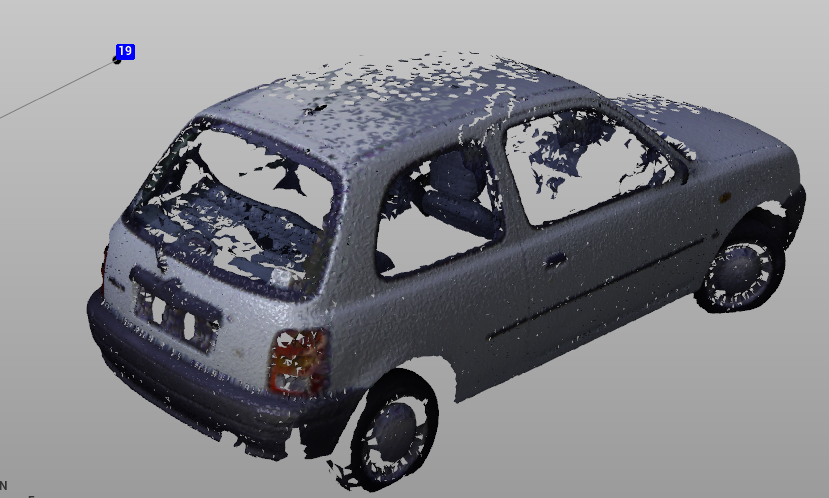

• Confirm to create the 3D mesh.
