Add measure by Alignment Offset

The command allows you to create new measurements for alignment from two points and offset distance.

• Click Survey.

• Click Add measure by offset Distance-Distance.



• elect in the graphic view the first auxiliary point.

• Select in the graphic view the second auxiliary point.

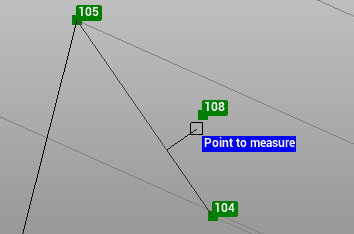

• Select in the graphic view the point to measure to create the measure.

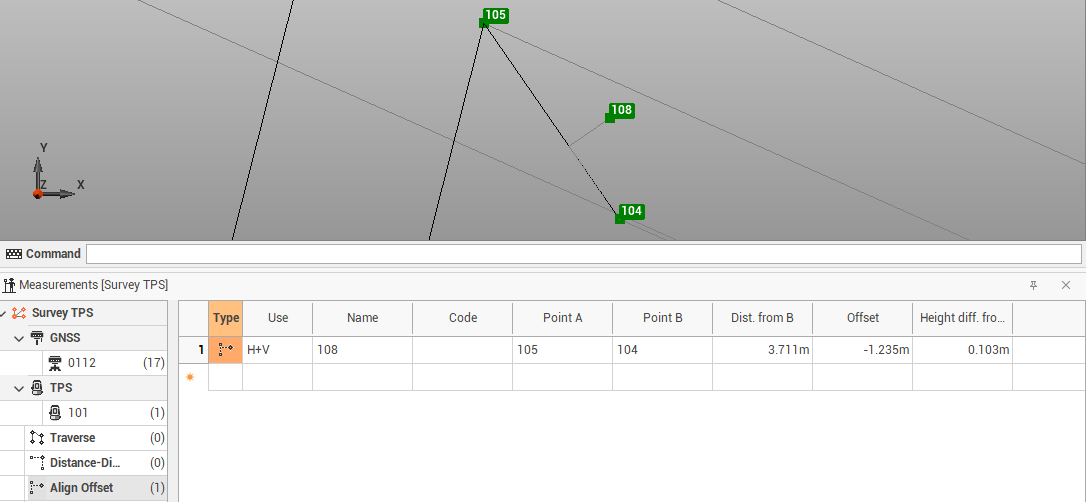

• The measure is added to the Measurement table.
