Add measure by offset Distance-Distance

The command allows you to create new measurements by intersection of two distances from two points.

• Click Survey.

• Click Add measure by offset Distance-Distance.



• Select in the graphic view the first auxiliary point.

• Select in the graphic view the second auxiliary point.

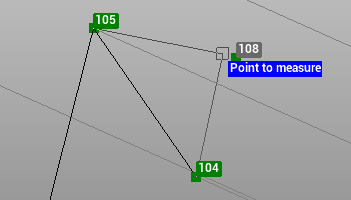

• Select in the graphic view the point to measure to create the distance-distance measure.

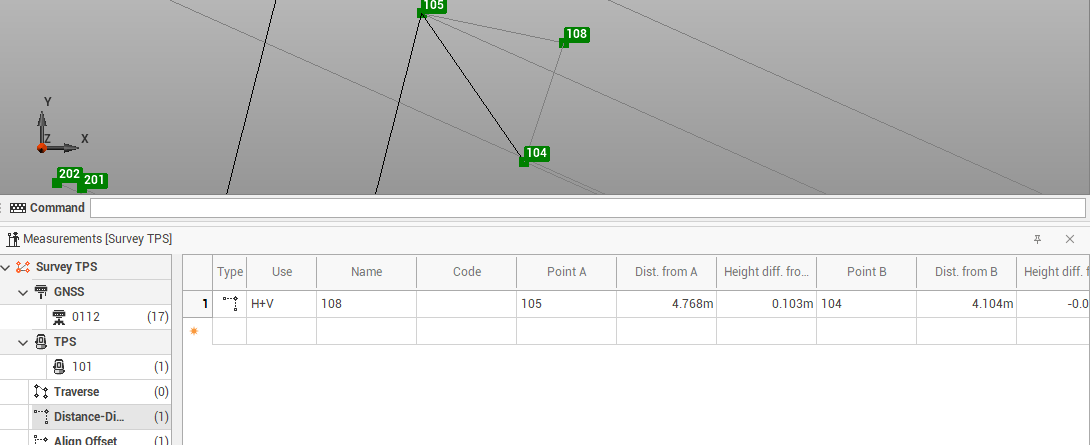

• The measure is added to the Measurement table.
