Align

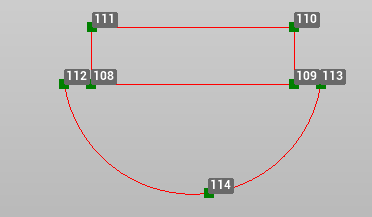

Use the command Align to align selected objects to other objects in 2D or 3D.

• Click Edit.

• Click Align.



• Click on graphic view to select the objects to align.

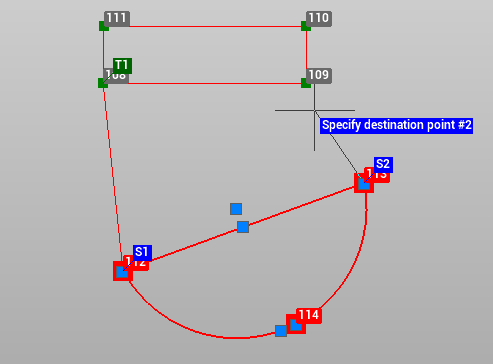

• Specify source and destination for 2 or more points.



• Select the alignment options:

  • If objects to align have to be scaled or not.

  • If objects to align are centered to the destination object or keeping the first point fixed.

• Confirm the selection.
