Area

The command Area allows to:

• Calculate the area and perimeter of selected points

• Generate a simplified view of the data.

• Store the annotations as labels.

How to use the function step-by-step

To use the Area function:

• Click Home.

• Click Area.



• Select the points that define the area.

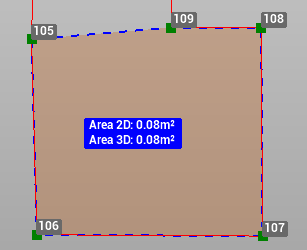

• The annotation shows the area enclosed by the selected points.

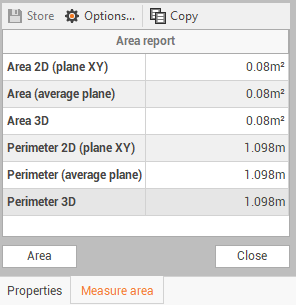

• On the Measure area panel, you can visualize additional information.



Store annotation values

It is possible to store annotations.

• After measuring an area with the Area function, the panel is opened.

• Click Options.

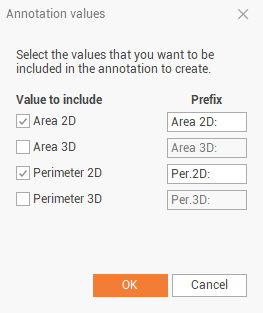

• Select the values to include in the annotation and click OK.

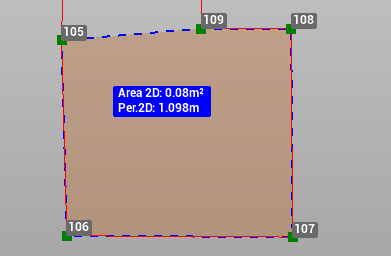

• Click Store to store the annotation label.
