Baselines
Baselines page shows the baselines created after a GNSS processing.
Click Baselines.

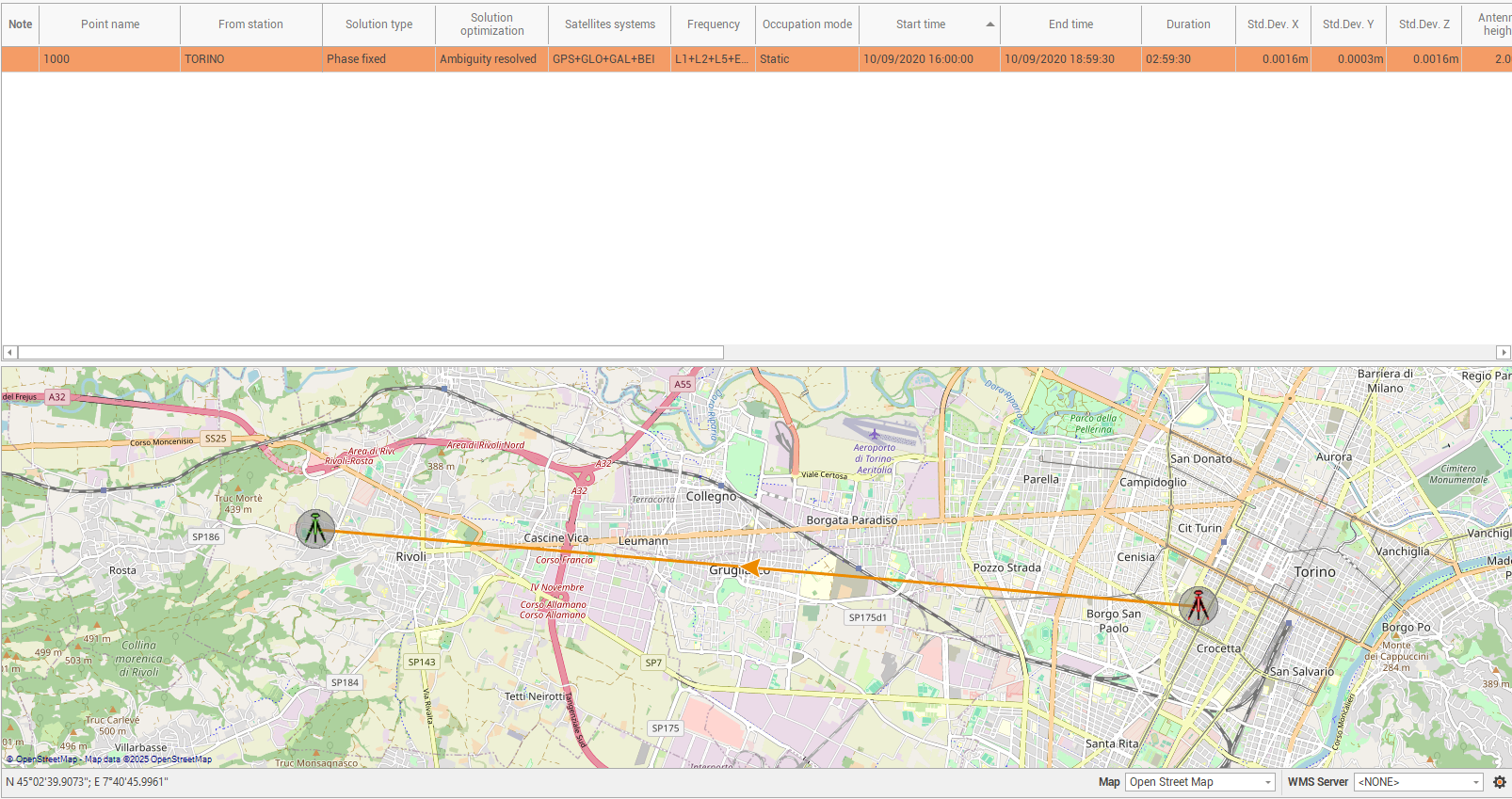

In the central panel the calculated baselines.
In the map view the baselines are visualized as arrows.
The table shows the calculated baselines.
Note: shows notes or errors related to the processing of the selected baseline.
Point name: the name of rover in the baseline.
From station: the name of reference station in the baseline.
Solution type: the type of GNSS solution after the processing.
Solution optimization: the calculation strategy used by the software.
Satellite systems: the satellite constellations used for the baseline processing.
Frequency: the frequencies used for the baseline processing.
Occupation mode: the occupation mode if static or kinematic.
Start time: the starting date and time of the raw data processing for the selected baseline.
End time: the ending date and time of the raw data processing for the selected baseline.
Duration: the duration of the observations used for processing the baseline.
Std Dev X,Y,Z: the standard deviation of result for X,Y,Z components.
Antenna height: the rover antenna height.
Antenna name: the rover antenna name.
Ephemeris type: the type of ephemeris used, if broadcast or precise.
WGS84 latitude, longitude, height: the coordinate of the result as WGS latitude, longitude and height.
X,Y,Z: the coordinate of the result as X,Y,Z if a coordinate system has been assigned to the project.
dx, dy, dz: the values of the baseline vector.
Slope distance: the slope distance of the baseline vector.
To delete an existing baseline click on Delete or select Delete from the context menu of the baseline.
