Block create

Create function allows to create a block from selected objects.

• Click Draw.

• Click Create.



• The command opens a panel on the right.

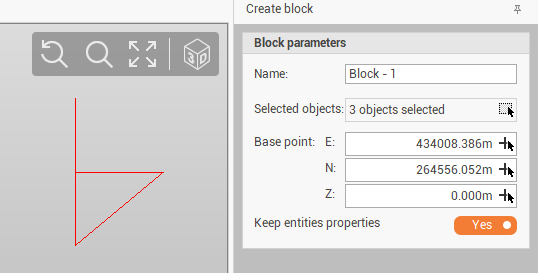

• Enter the requested parameters:

  • Name: the name of the block.

  • Selected objects: to select from graphic view the object we want to use to create the block.

  • Base point: the coordinates of insertion point of the block. Click on the arrow to define it on graphic view.

• Click Create to create the block.

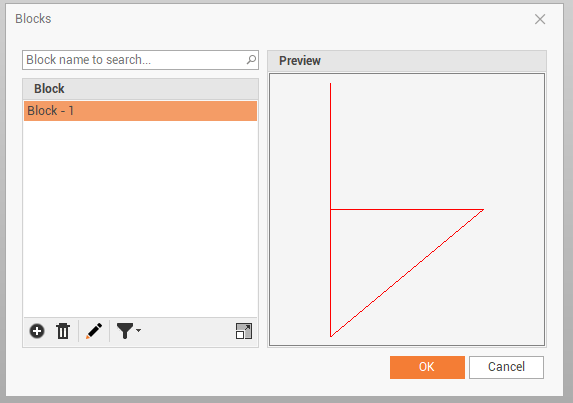

• The block is now available in the block manager.
