Create projection plane

Use the commands in projection plane to create a projection plane.

  • Horizontal.

  • Vertical.

  • By 3 points.

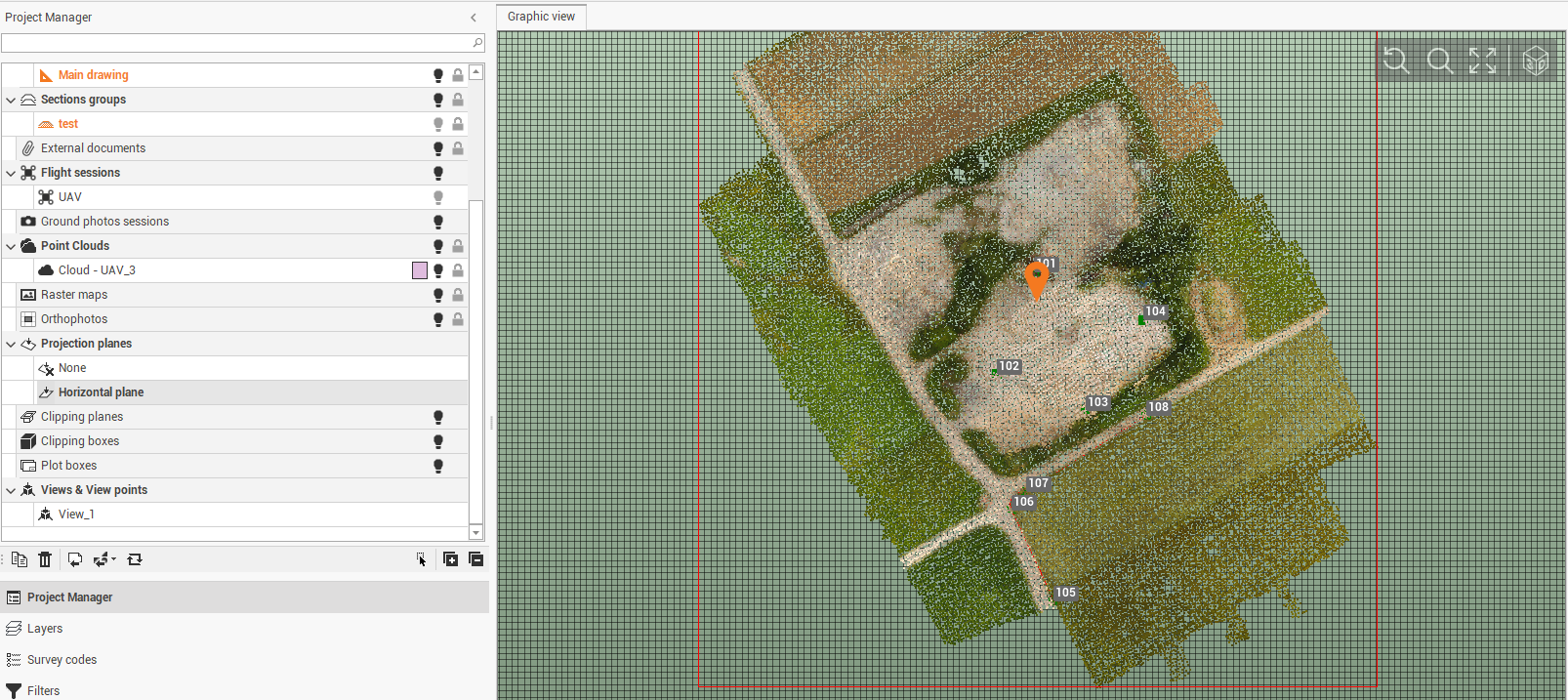

Horizontal

Use the command Horizontal to create an horizontal projection plane.

  • Click Draw.

  • Click Horizontal under projection plane menu.

  • Click on the graphic view to define the reference elevation of the projection plane.

  • All created elements will be projected on the horizontal projection plane. All points are on the elevation of the projection plane.


Vertical

Use the command Vertical to create a vertical projection plane.

  • Click Draw.

  • Click Vertical under projection plane menu.

  • Click on the graphic view to define the direction of the vertical projection plane, identified by 2 points.

  • All created elements will be projected on the vertical projection plane.

    Screenshot 2024-12-13 164608-20241213-154610.png

By 3 points

Use the command By 3 points to create a sloped projection plane.

  • Click Draw.

  • Click By 3 points under projection plane menu.

  • Click on the graphic view to define the plane by selecting the 3 points that define the plane.

  • All created elements will be projected on the sloped projection plane.
