Creating a project

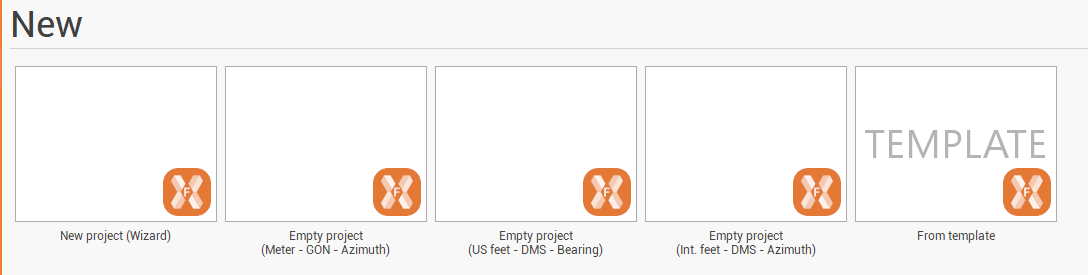

When opening the program, the starting window opens. From there, create a new project or open an existing one.
New project (Wizard): Starts a project using a guided data import. You can import data from different sources such as DWG/DXF or ASCII.
Available below options depends on selected software language.
Empty project (Meter - GON - Azimuth): Starts a project with meter as the distance unit, GON as the angle unit and Azimuth as the azimuth mode.
Empty project (US feet - DMS - Bearing): Starts a project with US feet as the distance unit, degree-minutes-seconds as the angle unit and Bearing as the azimuth mode
Empty project (Int feet - DMS - Bearing): Starts a project with International feet as the distance unit, degree-minutes-seconds as the angle unit and Azimuth as the azimuth mode
From template: Starts a project using a template as model. See Creating a project template on how to create a template.
By default projects are located in: C:\Users\Public\Documents\X-PAD Office Fusion. You can change the default project folder from the Fusion options (see General options )
