Dimensions

• Use the command Dimensions to create dimensioning.

  • Linear.

  • Aligned.

  • Aligned (auto).

  • Angular.

  • Radius.

  • Diameter.

Linear

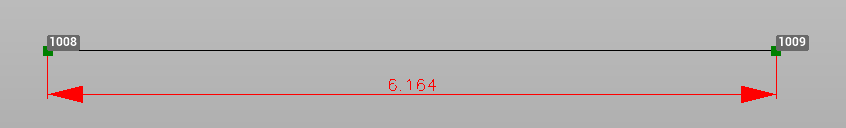

• Use the command Linear to create linear dimensioning. Linear dimensioning is oriented on the X axis.

• Click Draw.

• Click under Dimensioning to open the drop-down menu.

• Click Linear.

• Click on the entity in the CAD.

• Graphically define the distance from the CAD entity and confirm the creation.



You can click on the dimensioning text to move the dimensioning once it has been created.

Aligned

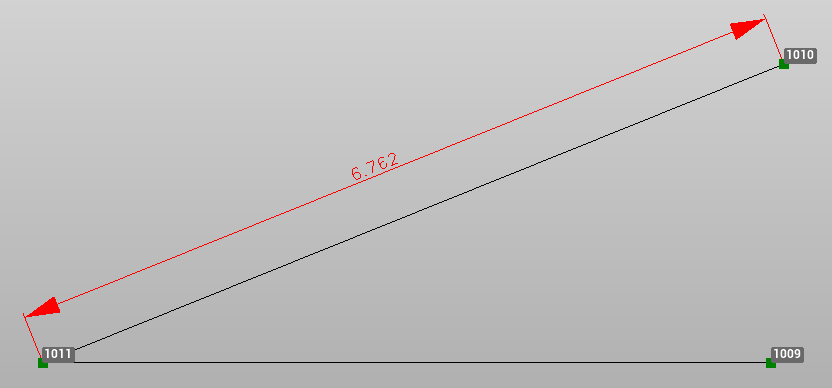

• Use the command Aligned to create an aligned dimensioning. The aligned dimensioning is aligned along the selected entity.

• Click Draw.

• Click under Dimensioning to open the drop-down menu.

• Click Aligned.

• Click on the entity in the CAD.



Aligned (auto)

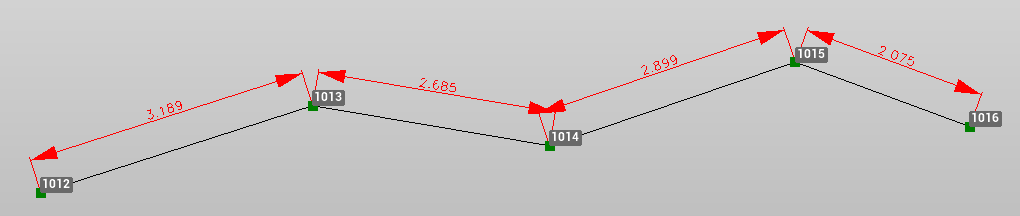

• Use the command Aligned (auto) to create an aligned dimensioning along a polyline, automatically dimensioning all segments of the polyline. The aligned dimensioning is aligned along the selected entity.

• Click Draw.

• Click under Dimensioning to open the drop-down menu.

• Click on Aligned (auto).

• Click on the entity in the CAD. If a polyline is selected, the dimensioning is created for all segments.



Angular

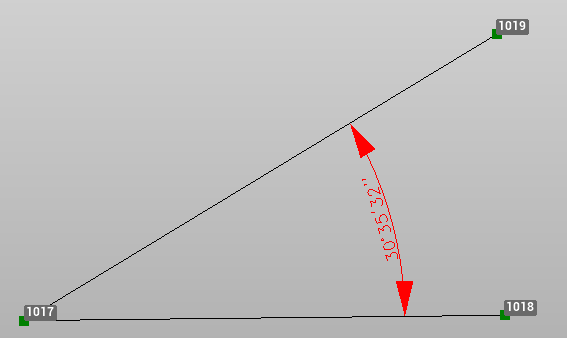

• Use the command Angular to create a dimensioning of the angle between two lines.

• Click Draw.

• Click under Dimensioning to open the drop-down menu.

• Click Angular.

• Click on the first line in CAD. Then click on the second line in CAD.



Radius

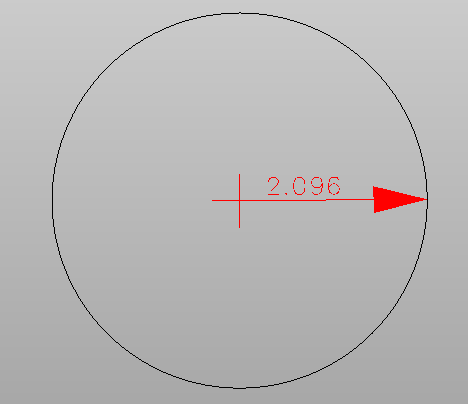

• Use the command Radius to create a dimensioning of the radius of a circle.

• Click Draw.

• Click under Dimensioning to open the drop-down menu.

• Click Radius.

• Click on a circle entity in CAD.



Diameter

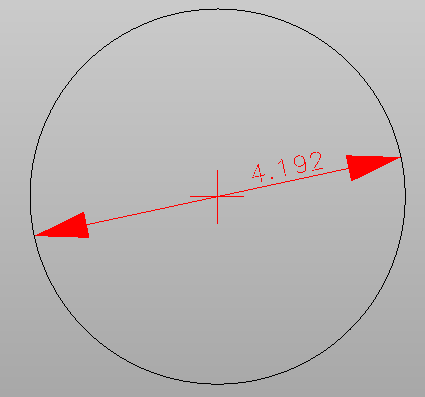

• Use the command Diameter to create a dimensioning of the diameter of a circle.

• Click Draw.

• Click under Dimensioning to open the drop-down menu.

• Click Diameter.

• Click on a circle entity in CAD.
