Empty table

Use the command Empty to create an empty drawing table.

• Click Draw.

• Click Empty.

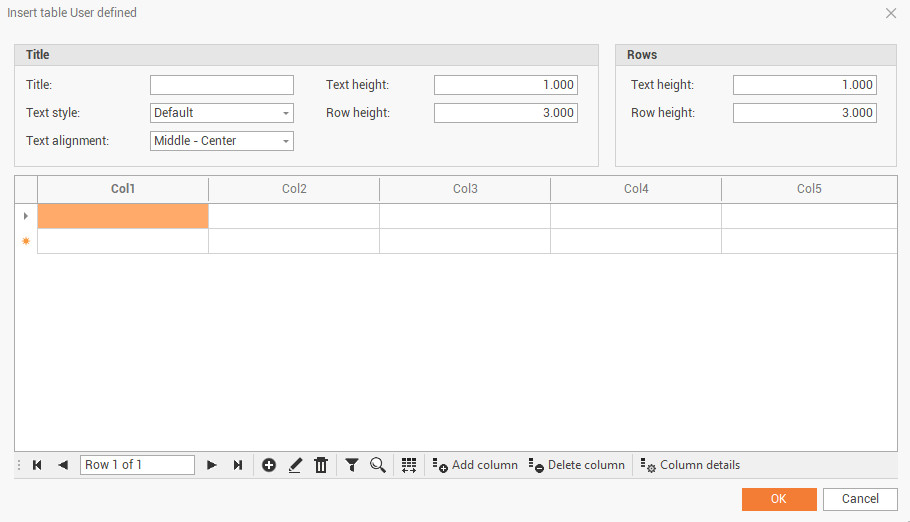

• The command opens a window used to define the new table.



• Title: the title of the table.

  • Text style: select from the available text styles the text style to use.

  • Text alignment: the alignment of the title text.

  • Text height: the height of the title text.

  • Row height: the height of the title row.

• Rows: parameters on the table rows.

  • Text height: the height of the text in the rows.

  • Row height: the height of the table rows.

• In the bottom part of the table there are some commands to edit the table.



  • Insert: to insert a new row.

  • Edit: to edit selected row.

  • Delete: to delete selected row.

  • Filter: adds the possibility to filter the values in the columns.

  • Find: opens the search panel.

  • Auto width: enable it to automatically adapt the width of the columns to the content.

  • Add column: this function opens a new window to give the possibility to add additional columns.

  • Delete column: deletes the selected column.

  • Column details: this function opens a new windows to edit the column properties.

  • Convert to editable: allows to edit the table content.

• Click OK and on the graphic view click to insert the table on the desired position.
