Explode

Use the command Explode to explode reference blocks selected in their basic components.

  • Click Edit.

  • Click Explode.

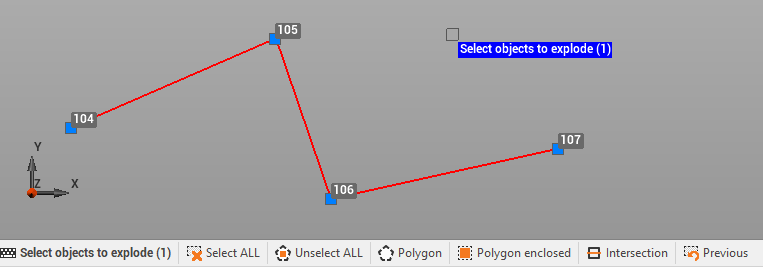

  • Select the objects to explode, for example blocks or polylines.

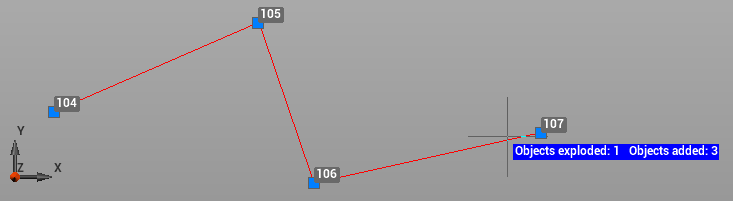

  • Right click to confirm the selection and explode the selected objects.
