Export data for X-PAD Survey or X-PAD Build

You can create the file containing the topographical data of the active survey subproject in the format of X-PAD Survey and X-PAD Build, to be loaded on the controller.

• Click File.

• Click Create X-PAD Survey file.

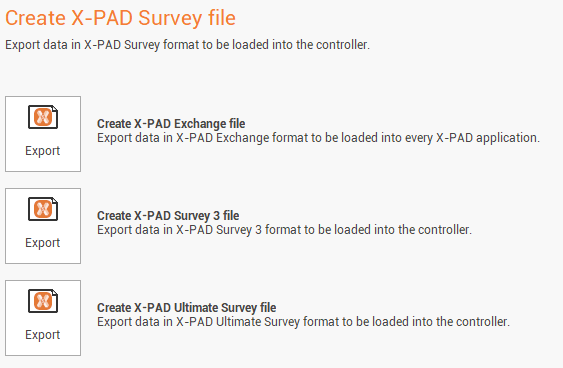

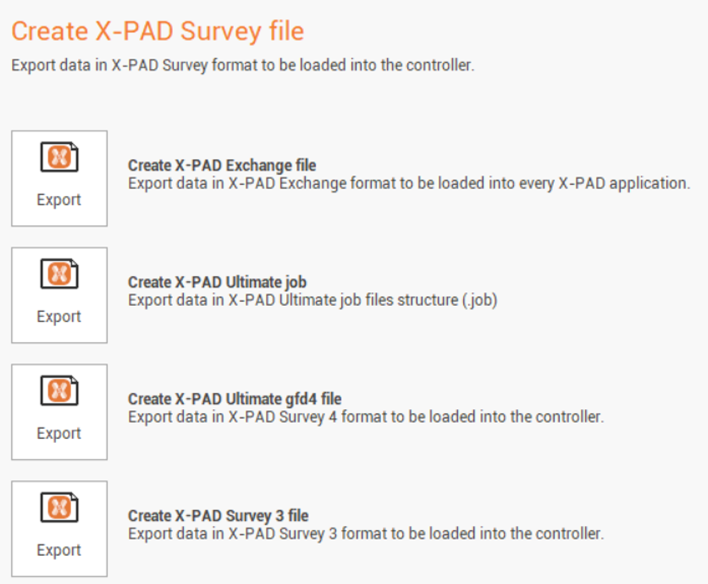

• It is possible to export in different formats:



  • Create X-PAD Exchange file: exports data in the X-PAD Exchange format (.xpad) to be loaded into every X-PAD application.

  • Create X-PAD Survey 3 file: exports data in X-PAD Survey 3 format (.gfd) to be loaded into the controller running X version 3.

  • Create X-PAD Ultimate Survey file: exports data in X-PAD Ultimate Survey format (.gfd4) to be loaded into the controller running X-PAD Ultimate Survey/Build/GO in the latest release.

• Select the format to export.

• Enter the filename and the export location. Click on to select have more export options.

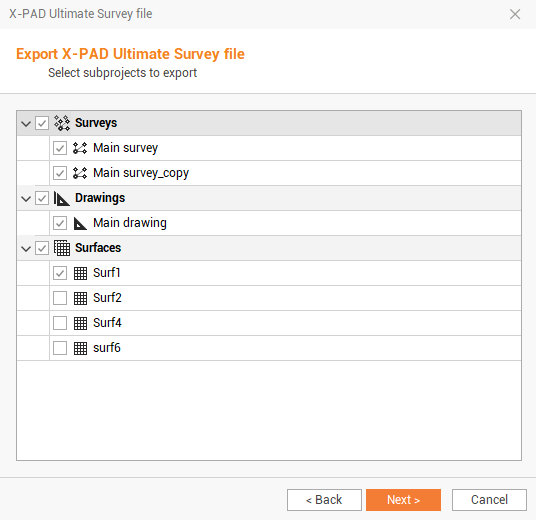

• Select the subprojects to export. Survey, drawing, surfaces and raster subprojects can be exported.
