Export of Google Earth KML file

You can export data in KML format to be loaded to Google Earth.

• Click File.

• Click Create Google Earth KML file.

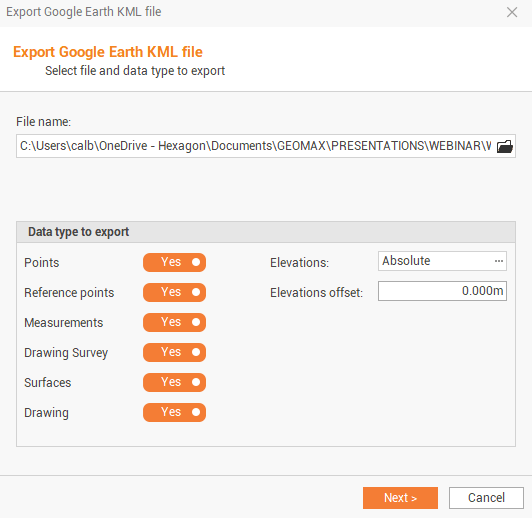

• The command opens a window.



  • File name: allows to choose the name and the path where you want to save the file.

  • Points: enables/disables export of survey subproject points.

  • Reference points: enable/disable export of reference points.

  • Measurements: enables/disables export of measure drawing.

  • Drawing survey: enables/disables export of survey drawing.

  • Surface: enables/disables export of surface subproject data compatible with the format LandXML.

  • Drawing: enable/Disable the export of drawing data.

  • Elevation: allow to choose whether to export elevations Absolute or the Ground (2D).

  • Elevations offset: allows to apply a vertical offset to the value of the elevation of the elements.

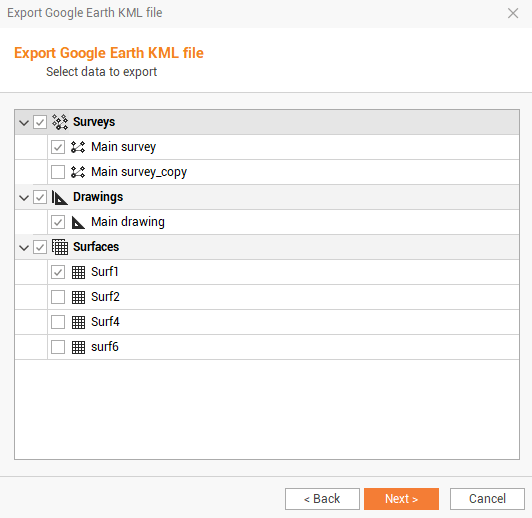

• Click Next to select the subproject to export.



• Click Next to export the data.

• Click on Start Google Earth to open the application if available on PC, or click End to conclude the export process.

This export can only be used if a coordinate system has been set or if GNSS measures are present in the survey subproject.
