Extrude to create a mesh

Any drawing object or block can be extruded along a reference 3D polyline to create complex 3D elements such as wall, slopes, or sidewalks.

The drawing object or block to be extruded has to be on the XY plane.

• Click Draw.

• Click Extrude.

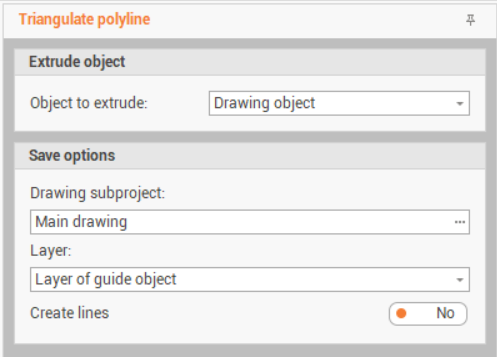

• This command opens a new panel on the right.



  • Drawing subproject: the drawing subproject where to create the mesh.

  • Layer: the layer where the mesh is created.

    • Layer of guide object: the used layer is the layer of the guide polyline.

    • Layer of the object to extrude: the used layer is the layer of the object to extrude.

    • Other layer: allows to select a different layer.

  • Create lines: enables the creation of lines of the extruded object along the guide polyline direction.

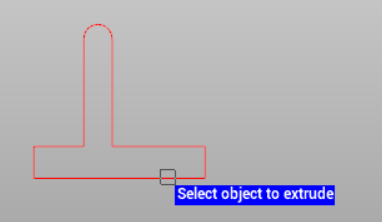

• Select the object to extrude.

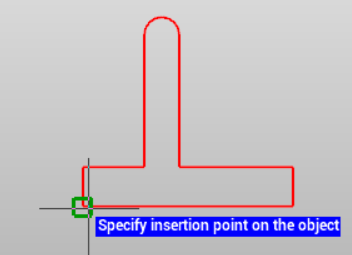

• Specify the insertion point on the object.

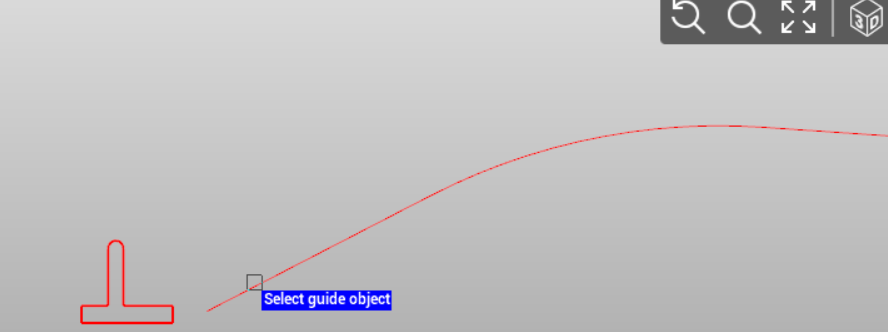

• Select the guide object.

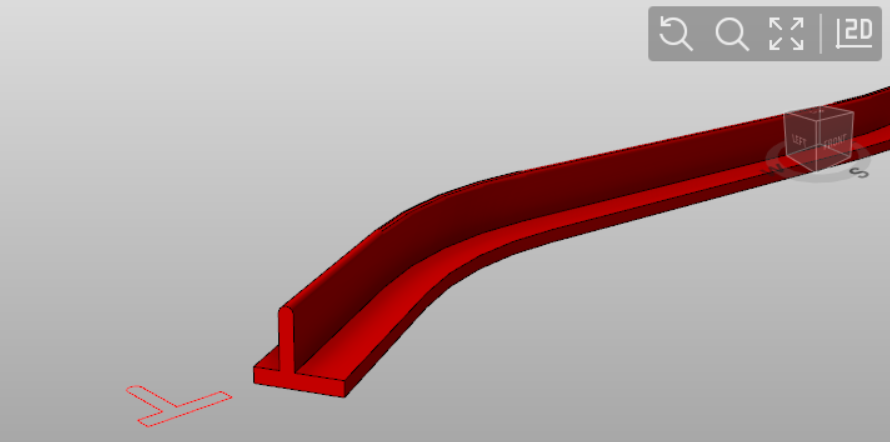

• The object is extruded along the guide object.
