Labels styles
Label styles window allows to define the style and the labels to be used with Labels command.
Click Draw.
Click Styles.
In the Label styles panel it is possible to create or edit label styles for points, objects or polygons.

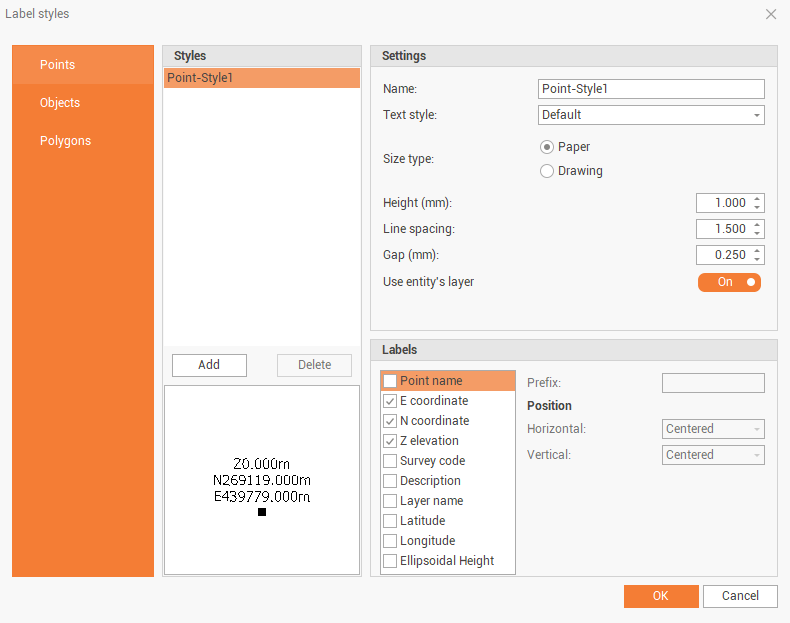

Points style
The Points page allows to customize the style for points labels.
Styles
Add: creates a new style.
Delete: deletes selected style.
Settings
Name: the name of current style.
Text style: the text style of the label. Click to select the text style from available styles.
Size type: changes the size type from the unit used in paper or in drawing.
Height: the height of the label text.
Line spacing: the line spacing of the label text.
Gap: the distance between the label text and the line connecting the point to the label.
Use entity’s layer: if enabled, use the layer of the selected point.
Labels
Labels: activates the labels to write.
Prefix: for same label, you can edit the prefix.
Position: the label position.

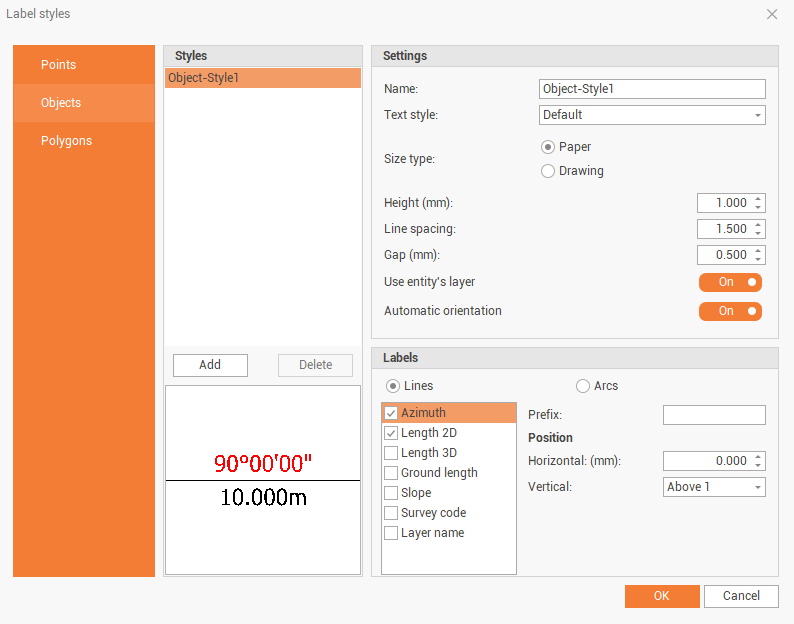

Objects style
The Object page allows to customize the style for objects labels.
Styles
Add: creates a new style.
Delete: deletes selected style.
Settings
Name: the name of current style.
Text style: the text style of the label. Click to select the text style from available styles.
Size type: changes the size type from the unit used in paper or in drawing.
Height: the height of the label text.
Line spacing: the line spacing of the label text.
Gap: the distance between the label text and the object.
Use entity’s layer: if enabled, use the layer of the selected point.
Automatic orientation: if enabled automatically orient the text according to the 2D view.
Labels
Labels: activates the labels to write for lines and arcs.
Prefix: for same label, you can edit the prefix.
Position: the label position.

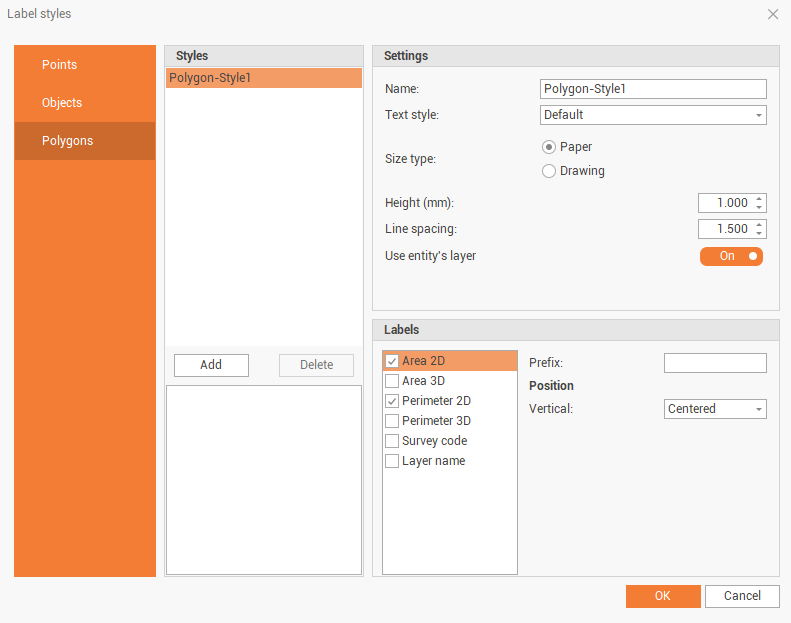

Polygons style
The Polygon page allows to customize the style for polygons labels.
Styles
Add: creates a new style.
Delete: deletes selected style.
Settings
Name: the name of current style.
Text style: the text style of the label. Click to select the text style from available styles.
Size type: changes the size type from the unit used in paper or in drawing.
Height: the height of the label text.
Line spacing: the line spacing of the label text.
Use entity’s layer: if enabled, use the layer of the selected point.
Labels
Labels: activates the labels to write.
Prefix: for same label, you can edit the prefix.
Position: the label position.

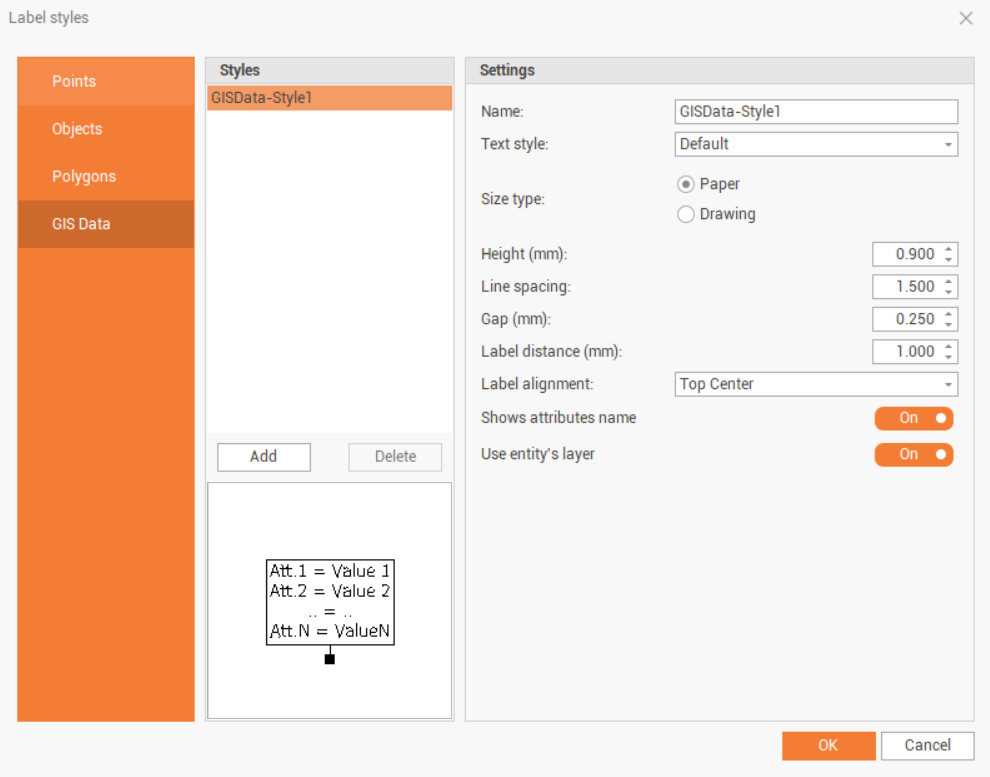

GIS Data style
The GIS Data page allows to customize the style for GIS data labels.
Styles
Add: creates a new style.
Delete: deletes selected style.
Settings
Name: the name of current style.
Text style: the text style of the label. Click to select the text style from available styles.
Size type: changes the size type from the unit used in paper or in drawing.
Height: the height of the label text.
Line spacing: the line spacing of the label text.
Gap (mm): the distance between the text and the box.
Label distance (mm): the distance between the point and the box.
Label alignment: the alignment of the label text.
Show attribute name: enables the visualization of the name of the attributes.
Use entity’s layer: if enabled, use the layer of the selected point.
