Line

Use the command Line to draw a line.

• Click Draw.

• Click Line.

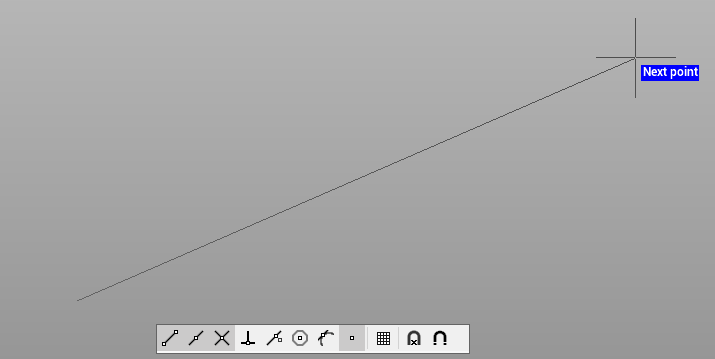

• Click on graphic view to create the line. In the bottom bar of the graphic view you can activate/deactivate the object snap.



If the command Create point is active, the item will be saved in the Survey subproject. With this command active the vertexes are topographic points.

• The command have properties that are activated by right-clicking in the CAD window

  • Close : allows to join the last vertex of the element drawn with the first. If the item was drawn by the polyline command, the option will create a closed polyline

  • Undo last point : allows to delete the last vertex of the line or polyline.

  • Extend : extends the object while keeping the same direction but using as a reference for extension length a reference point.

  • Intersection : allows to extend the segment to the intersection with a reference direction.
