Manage surface triangles
Add triangles
The command Add triangles allows to manually create new triangles selecting the 3 vertexes.
Click Surfaces.
Click Add new triangle.

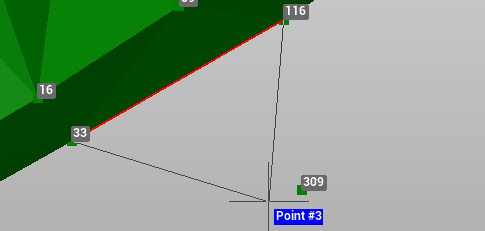

Select in CAD the 3 vertexes of the new triangle.

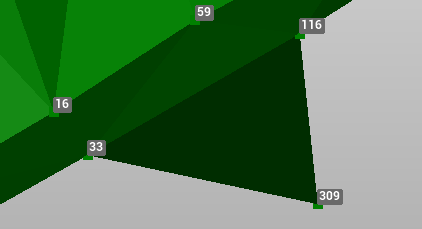

The new triangle is part of the selected Surface subproject.
Delete triangles
Delete triangles command deletes selected triangles from a surface.
Click Surfaces.
Click Delete triangle.

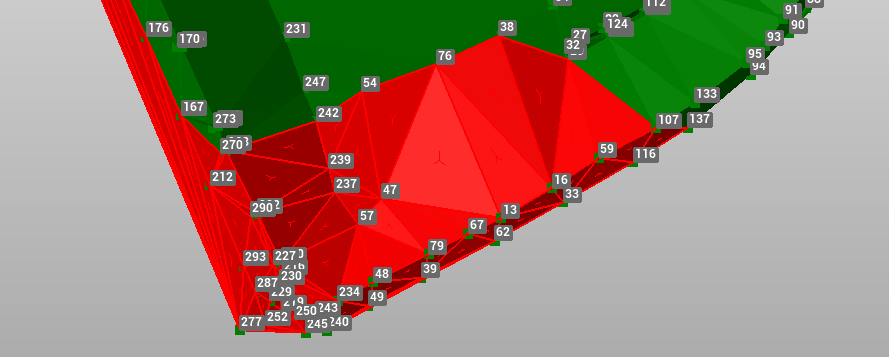

Select in CAD the triangles to delete. It is possible to select multiple triangles with an area selection. Selected triangles are visualized in red.
Right-click to confirm
Swap faces

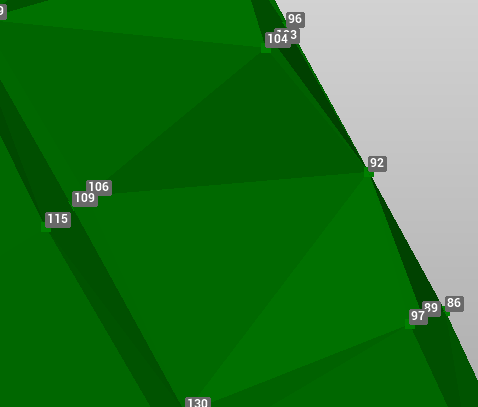

You can invert the faces of two adjacent triangles by selecting the shared side. This command allowsto manually improve a triangular model to make it more like the real model.
Click Surfaces.
Click Swap faces.

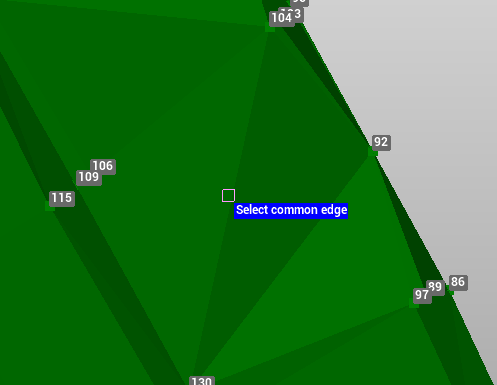

Select the common edge between two triangles.
Right click to confirm.
