Measure (Align Offset)

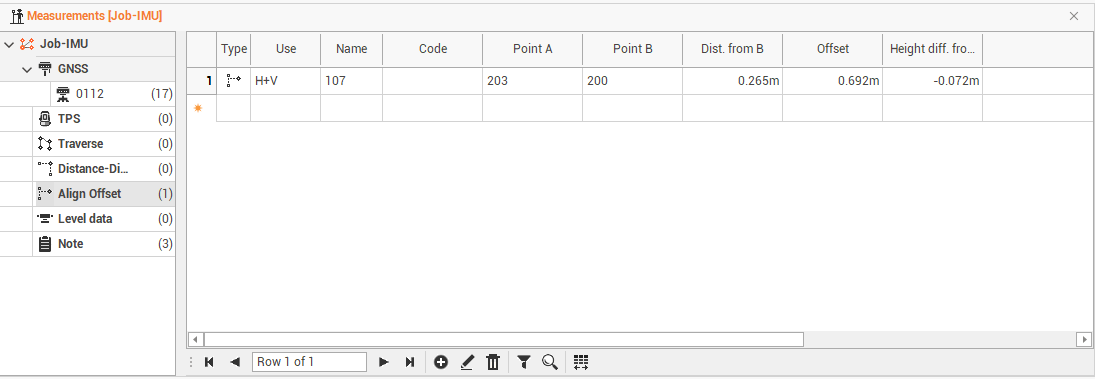

The table shows the values of measurements at points measured by alignment and offset from two reference points. The table shows the following data:
The information available are the following:
Type: the type of measure.
Use: to set the mode in which the program uses the measurement in the calculation of the survey. The option H + V allows the program to use both the horizontal and vertical component of the measurement. The option Only H or Only V They set the use of the measure only as a horizontal measure or only as a vertical one.
Name: the name of the point.
Code: the survey code associated with the point surveyed.
Point A: the name of the first reference point.
Point B: the name of the second reference point.
Distance from B: the distance from the reference point B.
Description: the point description.
Date/time: the date and time when the point was measured.
Recording: this box shows if there are voice notes related to the measurement.
Photo/Sketch: the photo or sketch related to the measurement.
Double-click on a measure or click on Edit to access a specific window that allows the measurement data changing.

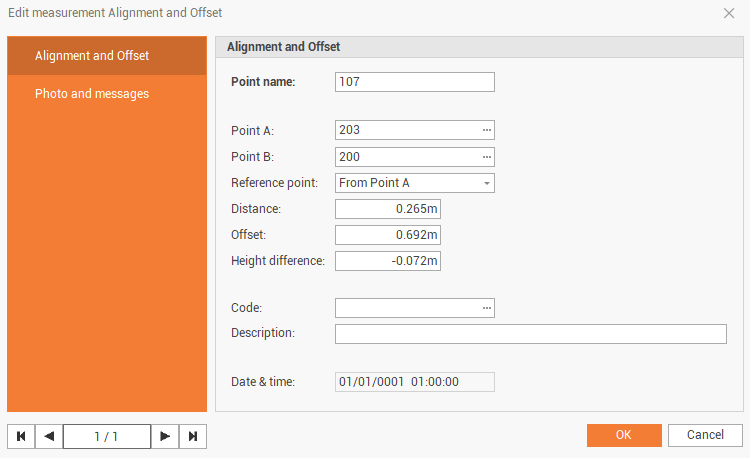

The Edit measurement Alignment and offset page shows information on the measurement.
Point name: the name of the point.
Point A: the name of the first reference point.
Point B: the name of the second reference point.
Reference point: if the distance is calculated from reference point A or reference point B.
Distance: the distance from the reference point along the alignment.
Offset: the offset from the alignment to the point.
Height difference: the elevation difference of point to measure from reference point.
Code: the survey code associated with the measured point.
Description: the point description.
Date/time: the date and time when the point was measured.

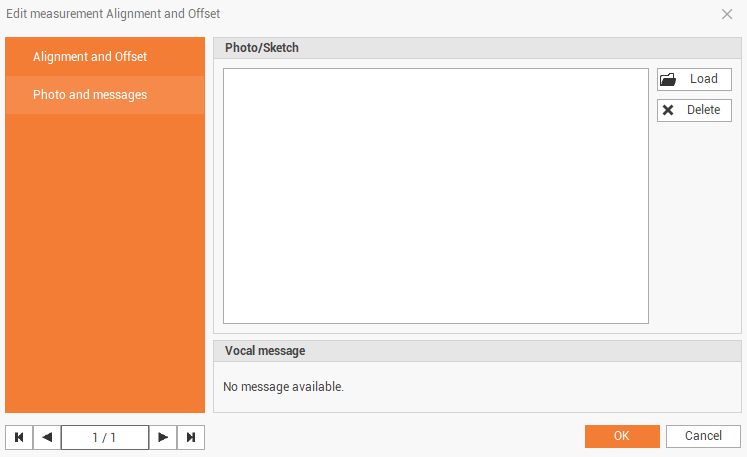

The photo and messages page shows the photo and vocal message assigned to the point.
