Measure (Distance-Distance)

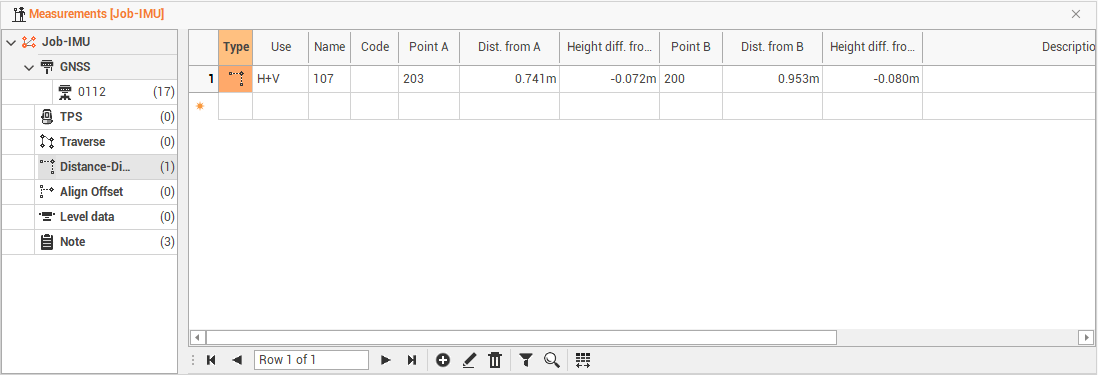

The table shows the values of the GNSS measures surveyed by intersection of distances and its data relative to two reference points. The table shows the following data.
The information available are the following:
Type: the type of measure.
Use: to set the mode in which the program uses the measurement in the calculation of the survey. The option H + V allows the program to use both the horizontal and vertical component of the measurement. The option Only H or Only V They set the use of the measure only as a horizontal measure or only as a vertical one.
Name: the name of the point.
Code: the survey code associated with the point surveyed.
Point A: the name of the first reference point.
Distance from A: the distance from the reference point A.
Height difference from A: the elevation difference of point to measure from reference point A.
Point B: the name of the second reference point.
Distance from B: the value of the distance from the reference point B.
Height difference from B: the elevation difference of point to measure from reference point B.
Description: the point description.
Date/time: the date and time when the point was measured.
Recording: this box shows if there are voice notes related to the measurement.
Photo/Sketch: the photo or sketch related to the measurement.
Double-click on a measure or click on Edit to access a specific window that allows the measurement data changing.

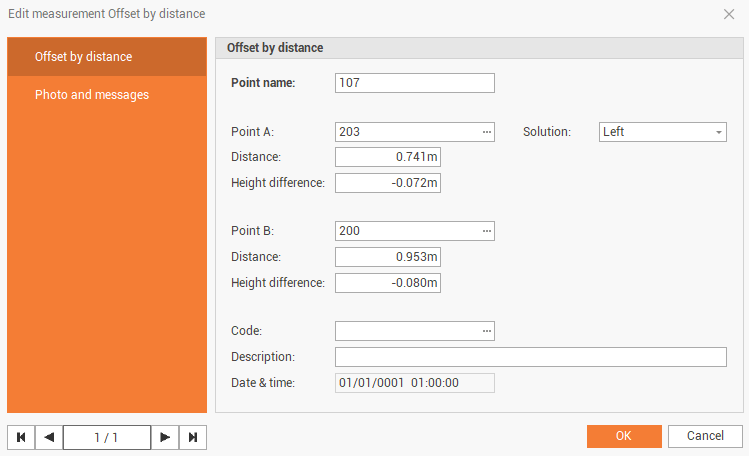

The Edit measurement Offset by distance page shows information on the measurement.
Point name: the name of the point.
Point A: the name of the first reference point.
Solution: if the point solution is on the left or right from the 2 auxiliary points.
Distance: the distance from the reference point A.
Height difference: the elevation difference of point to measure from reference point A.
Point B: the name of the second reference point.
Distance: the value of the distance from the reference point B.
Height difference: the elevation difference of point to measure from reference point B.
Code: the survey code associated with the measured point.
Description: the point description.
Date/time: the date and time when the point was measured.

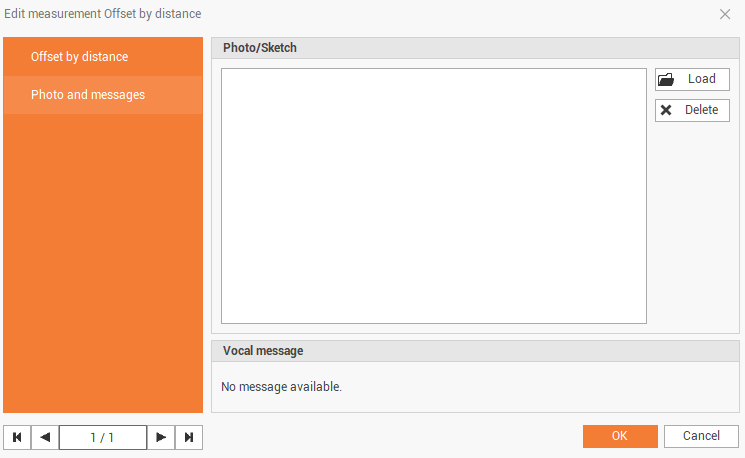

The photo and messages page shows the photo and vocal message assigned to the point.
