Move GNSS base

Move GNSS base command moves the position of the GNSS base entering new coordinate or shift values.

• Click Survey.

• Click Move GNSS base.



• The command requires the input of the relocation data in the right-side panel. It is possible to choose several options to perform the re positioning.



  • New coords LLH.

  • Shift LLH (from current).

  • New coords ENZ.

  • Shift ENZ (from current).

When the base is moved, also the connected baselines and rover points are moved.

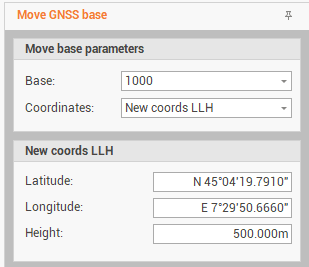

New coords LLH

• Sets the new latitude, longitude and height of the base.



• Enter the requested parameters:

  • Base: select the base to be moved.

  • Coordinates: choose the method to set the movement. Select New coords LLH to enter the new coordinates as latitude, longitude and ellipsoidal elevation.

  • Latitude: the new latitude of the base.

  • Longitude: the new longitude of the base.

  • Height: the new height of the base.

• Click on Move to move the base and relative baselines

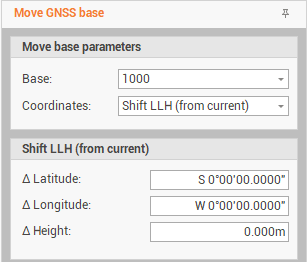

Shift LLH (from current)

• Sets the difference in latitude, longitude and height to move the the base.



• Enter the requested parameters:

  • Base: select the base to be moved.

  • Coordinates: choose the method to set the movement. Select Shift LLH (from current) to enter the shift as latitude, longitude and elevation.

  • Δ Latitude: the shift value to calculate the new latitude of the base.

  • Δ Longitude: the shift value to calculate the new latitude of the base.

  • Δ Height: the shift value to calculate the new latitude of the base.

• Click on Move to move the base and relative baselines

New coordinate ENZ

• Defines the new ENZ coordinates of the base.



• Enter the requested parameters:

  • Base: select the base to be moved.

  • Coordinates: choose the method to set the movement. Select New coords XYZ to enter the shift as latitude, longitude and elevation.

  • E: sets the new east coordinate of the base. You can select the new location in the graphics view by pressing the button .

  • N: sets the new north coordinate of the base. You can select the new location in the graphics view by pressing the button .

  • Z: sets the new elevationt coordinate of the base. You can select the new location in the graphics view by pressing the button .

• Click on Move to move the base and relative baselines

Shift ENZ (from current)

• Sets the difference for the east, north and elevation coordinates to move the base.



• Enter the requested parameters:

  • Base: select the base to be moved.

  • Coordinates: choose the method to set the movement. Select Shift ENZ (from current) to enter the shift as latitude, longitude and elevation.

  • ΔE: sets the shift value to calculate the new east coordinate of the base.

  • ΔN: sets the shift value to calculate the new north coordinate of the base.

  • ΔZ: sets the shift value to calculate the new elevation coordinate of the base.

• Click on Move to move the base and relative baselines
