Offset

Use the command Offset to create a parallel copy of the selected object at specified distance.

• Click Edit.

• Click Offset.

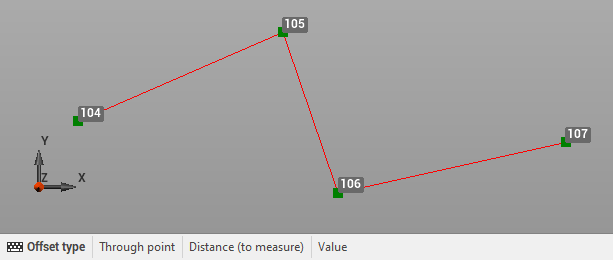

• Select the offset type:

  • Through point: select in CAD the point or position through which the offset copy should pass.

  • Distance (to measure): measure in CAD the offset distance.

  • Value: enter the offset distance.

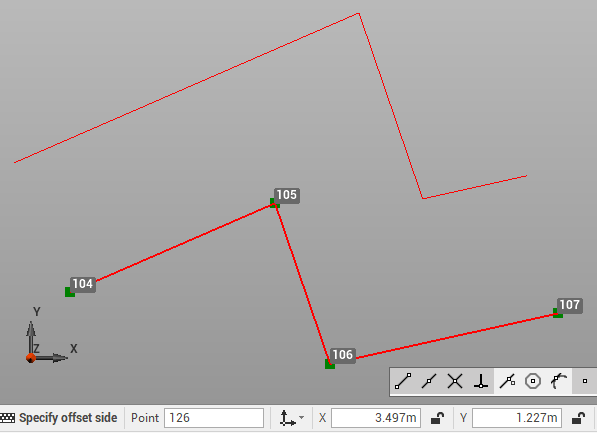

• Enter the required information to create a copy of the selected object at entered offset.
