Plot current view

The command Current view is used to plot the current view, independently from a plot box.

  • Click Output.

  • Click Current view.

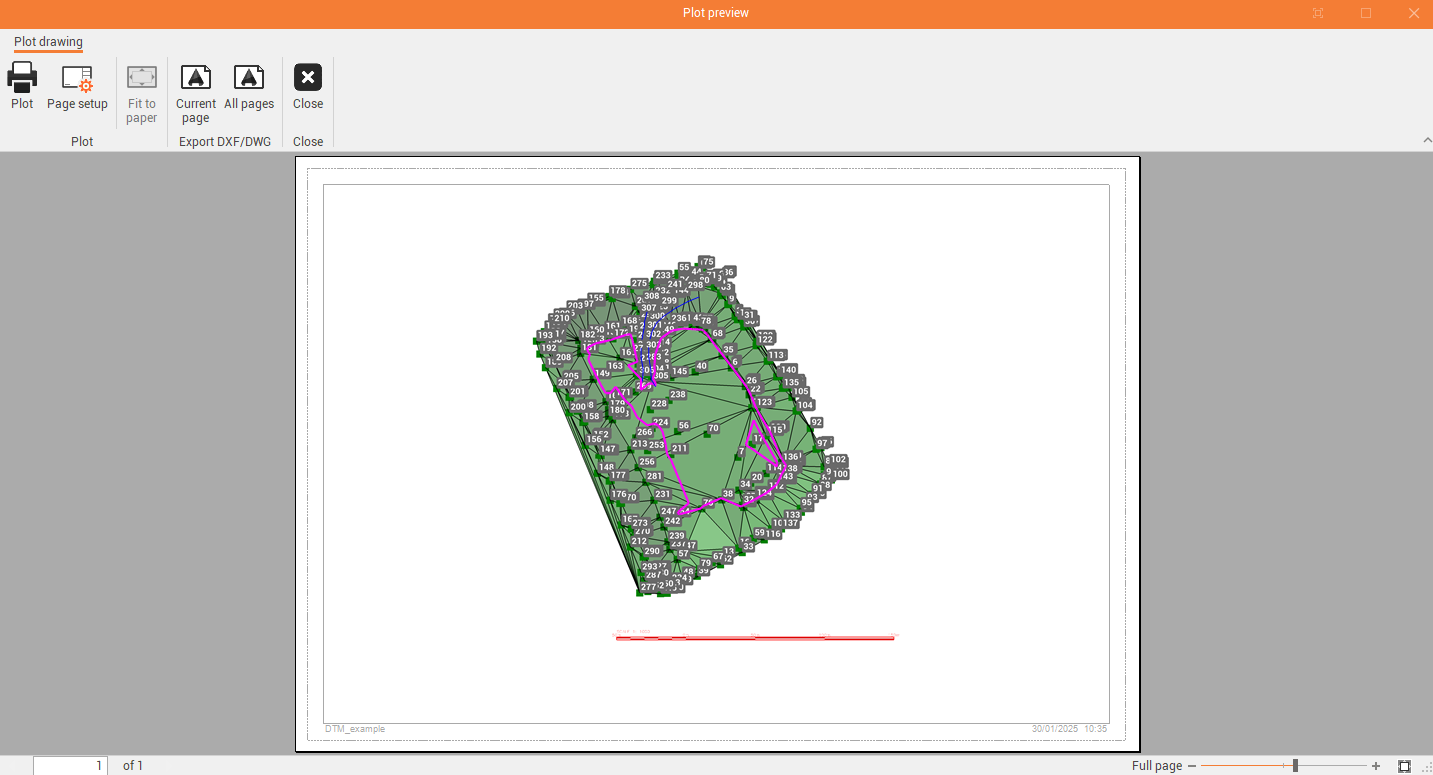

  • This commands opens the preview window.


  • The plot preview has different commands:

    • Plot: to send the preview to the printer.

    • Page setup: to open the page setup window.

    • Fit to paper: fits the drawing to the current paper size.

    • Current page: exports the current page to DXF/DWG.

    • All pages: exports all pages to DXF/DWG.

    • Close: close the preview.
