Points labels

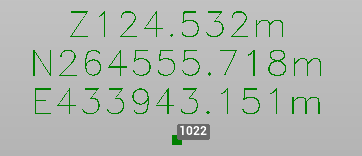

Use the command Points to create labels on points or position with information according to the selected label style.

• Click Draw.

• Click Points.



• The command opens a panel on the right.

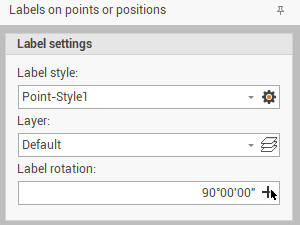

• Change the settings in the Label settings panel:

  • Label style: to select the style from the drop-down menu. Click on the gear icon to open the style settings.

  • Layer: to select on which layer create the label, in case the label is a Label position.

  • Label rotation: the rotation of the label. Click on the cross icon to define graphically on CAD the angle.

• Click on a point to create a Label point or in a position on CAD to create a Label position
