Raw data import

  • GNSS Post Processing module is designed to post process GNSS raw data, imported in different formats.

  • The supported raw data are:

    • Rinex data: the standard and most common format to store and share GNSS raw data is the Receiver Independent Exchange Format (RINEX). RINEX data can be imported with extensions .??o, .??d, .zip, .gz, .rnx

    • M00: raw data stored from GeoMax receiver models Zenith25, Zenith25Pro, Zenith15, Zenith16 and Zenith40.

    • DAT: raw data stored from GeoMax receiver models Zenith10, Zenith20, Zenith35, Zenith35 Pro, Zenith55, Zenith60, Zenith60 Pro.

    • ZIP: allows to import a compressed ZIP file regardless of their format.

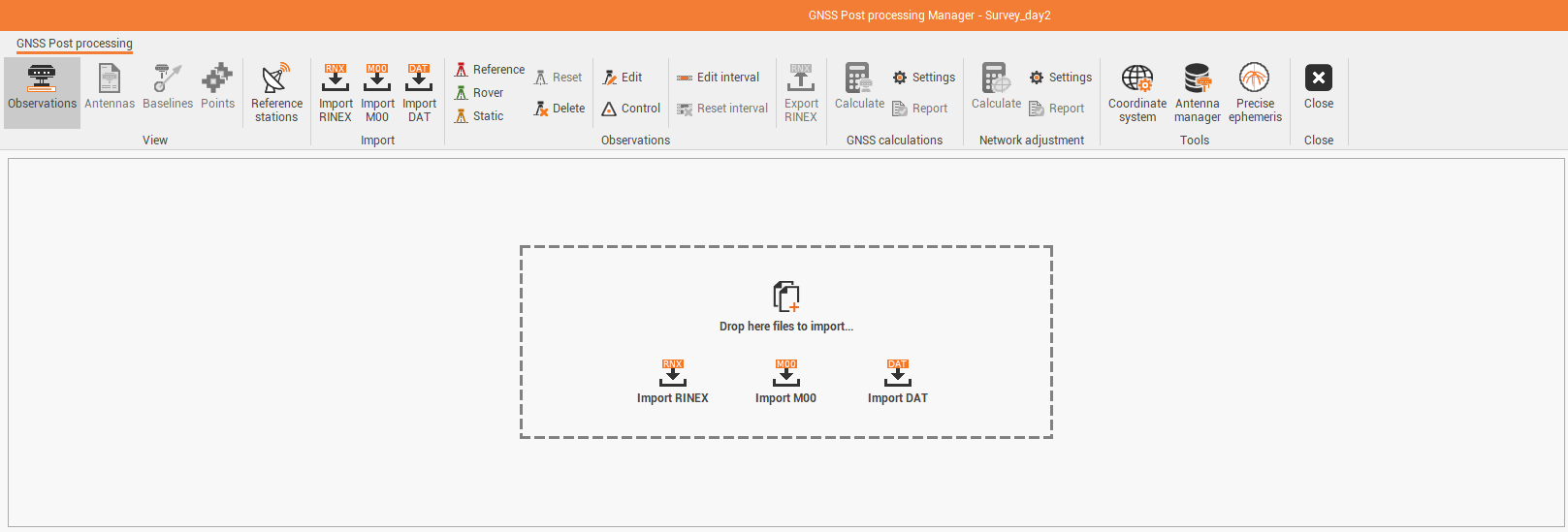

  • To import raw data, you can import or drop the files immediately after the module is started.

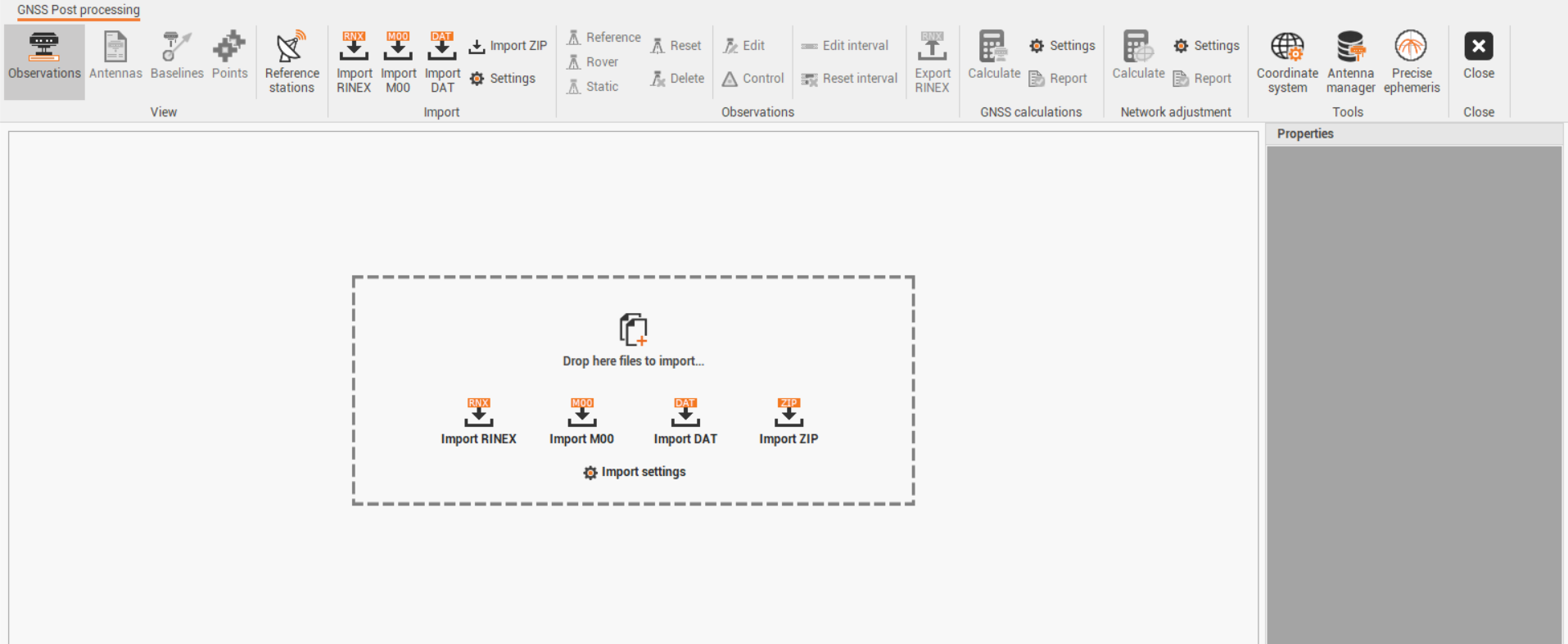

  • Or using the functions available in the top bar.

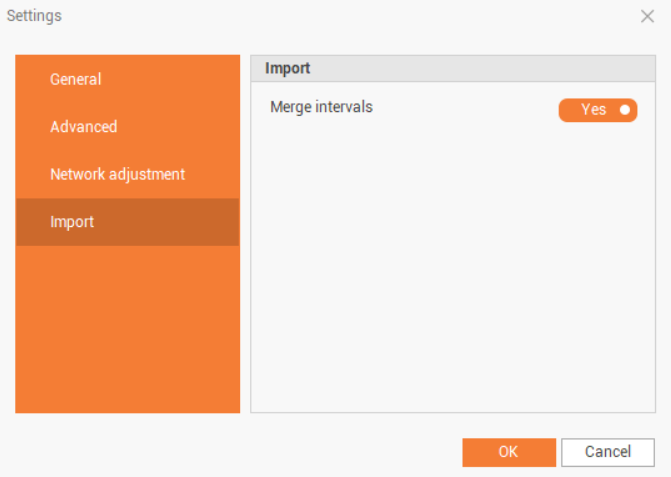

  • Click Settings to open the Import settings.


    • Merge intervals: for observations is possible to specify whether intervals on the same point ID should be considered as separated data acquisitions or merged into a single observation.

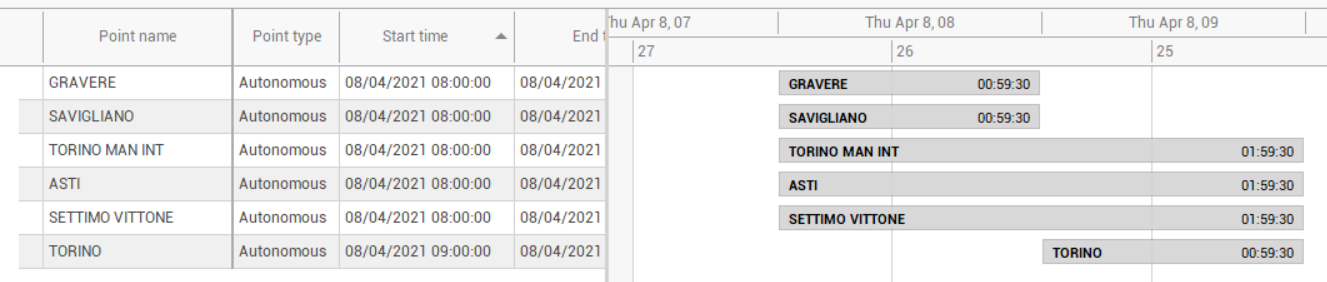

      • Merge intervals is enabled:

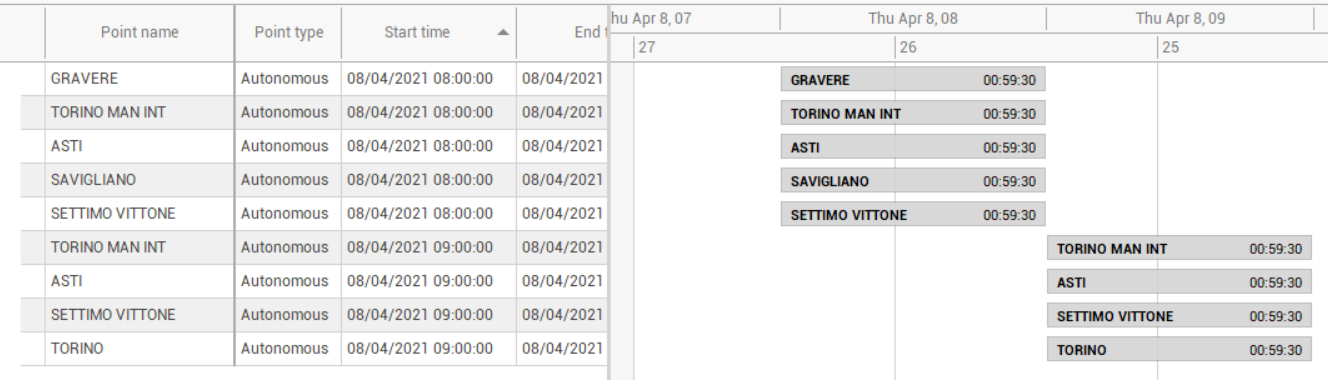

      • Merge intervals is disabled:
