Show slope symbols direction

This option displays the symbols that indicate the slope direction of main triangle in the selected surface.

• Click Surface.

• Click Slope symbols.

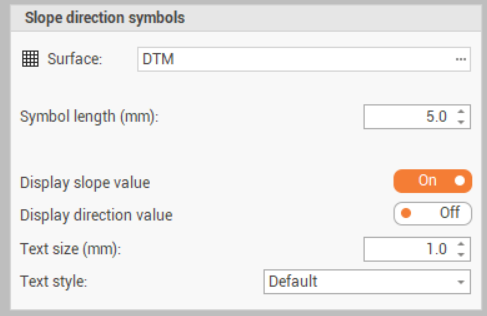

• This opens a new panel on the right.



  • Surface: select the surface on which to display the slope symbols.

  • Symbol lenght (mm): the lenght of the slope symbols.

  • Display slope value: enables/disables the visualization of the slope value.

  • Display direction value: enables/disables the visualization of the slope direction as azimuth.

  • Text size (mm): the size of the texts.

  • Text style: the style of the texts.

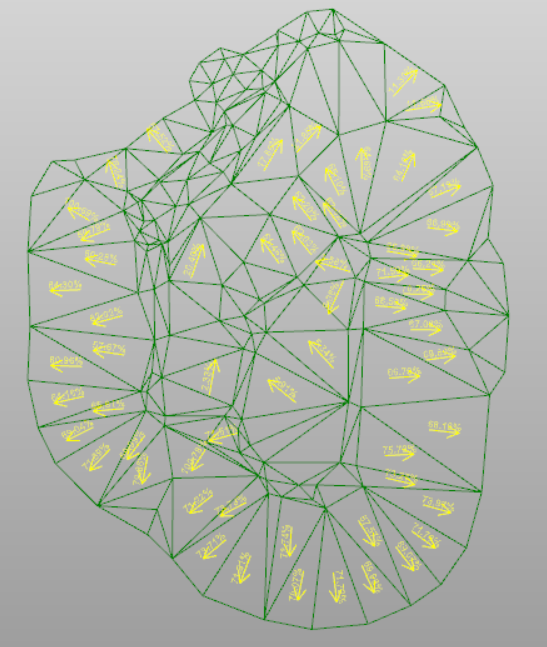

• Click Generate to generate the symbols and texts.
