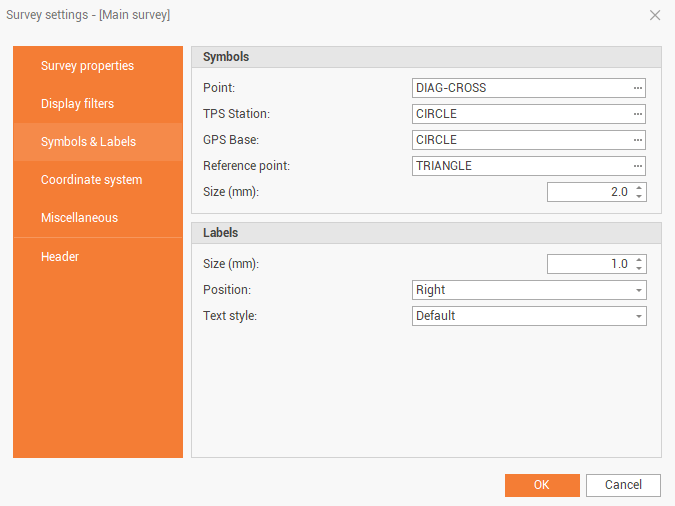

Symbols & Labels


  • Symbols: parameters related to CAD symbols for the entities.

    • Point: sets the symbol or block to be applied to the topographic points of the subproject.

    • TPS Station: sets the symbol or block to apply to the TPS stations in the subproject.

    • GPS Base: sets the symbol or block to apply to the GPS station present in the subproject.

    • Reference point: sets the symbol or block to apply to the reference points in the subproject.

    • Size (mm): sets the size of the symbols in mm at the applied representation scale.

  • Labels: parameters related to labels in CAD.

    • Size (mm): sets the size of the labels displayed in mm at the applied representation scale.

    • Position: it allows you to choose the position of the labels relative to the point symbol.

    • Text style: sets the text style to apply to point labels, TPS stations, GPS bases, and reference points.

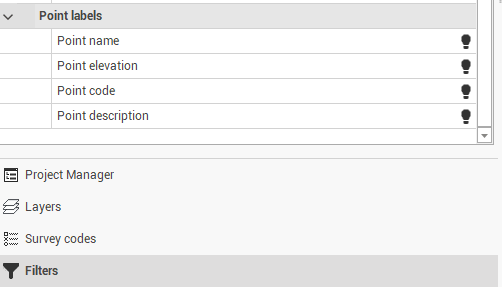

You can hide or display the labels of the topographical points from the filter management panel of the survey subproject.
