X-sections

X-PAD Office Fusion allows to calculate cross sections and longitudinal profiles. These allows to provide a representation of the surface, of the Point clouds, of the survey compared to a cutting plane

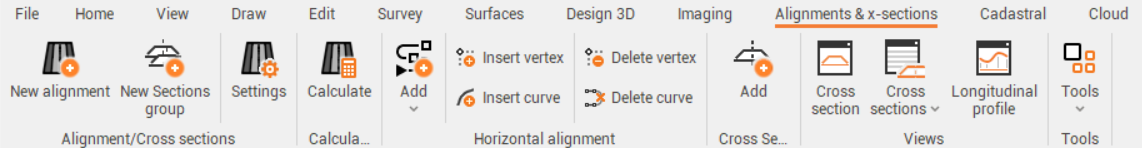

which can be vertical, horizontal or sloping. All commands to generate and manage cross sections and profiles are in the X-sections toolbar.

The basic steps are:

1. Place the sections or profile to be calculated on the planimetry.

2. Set the rules for the calculation, which define how the section lines are calculated.

3. Calculate section.

4. Set the drawing layout to print.

Cross sections and longitudinal profiles are It is possible to represent the elevations of different surfaces, for example those of the original terrain and the "as Built" ones.

• Create a new X-Sections group

• Section settings

• Add section

• Calculate cross sections

• Sections and profile management

• Topographic points from cross sections

• Create a cross section on 2 surfaces step-by-step
