Access the CAD project manager

X-PAD Ultimate Survey 1.png | X-PAD Ultimate Build 1.png | X-PAD Ultimate GO 2.png

  • Project Manager is a panel that allows access to the management and modification of the several types of entities that can be displayed in the CAD window.

  • Open CAD.

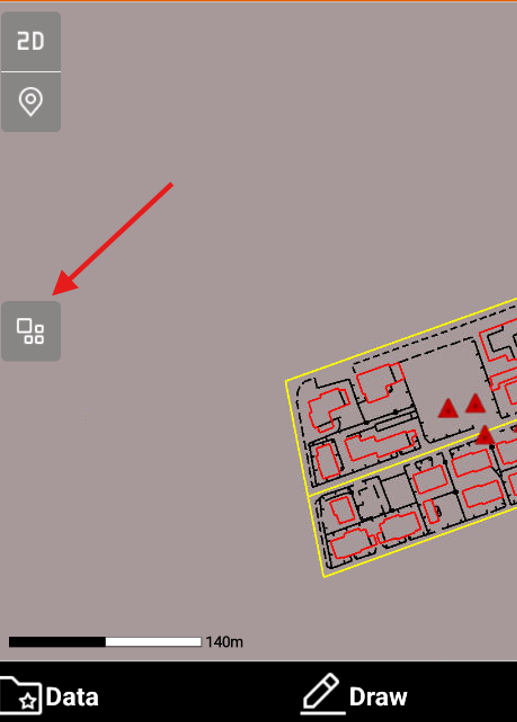

  • Click Project Manager icon.

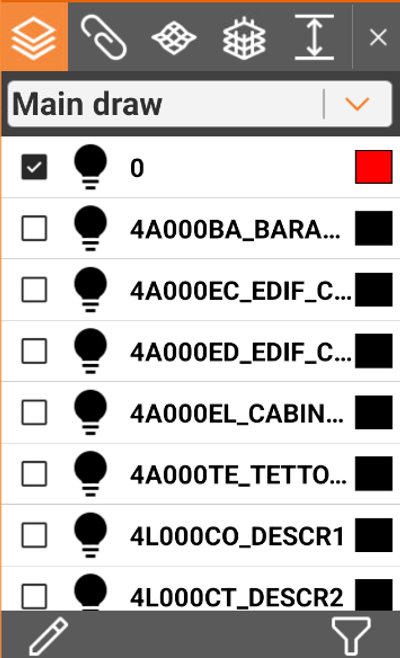

  • This opens a new panel.


    • Layer image-20250514-123801.png : access the layer management and graphical properties of drawing elements.

    • External reference image-20250514-123651.png : access the external reference management.

    • Surfaces image-20250514-123706.png : access the management of display and properties of the surfaces.

    • BIM surface image-20250514-123727.png : access the management of the display of the entities present in the files type IFC.

    • Cut planes image-20250514-123743.png : allows to define a range of elevations that has to be visible; everything else outside the defined range is not visible.
