Automatic measuring

X-PAD Ultimate Survey 1.png + AUTOMEASURING

  • Automatic measuring starts the automatic measuring of the points using the configured parameters.

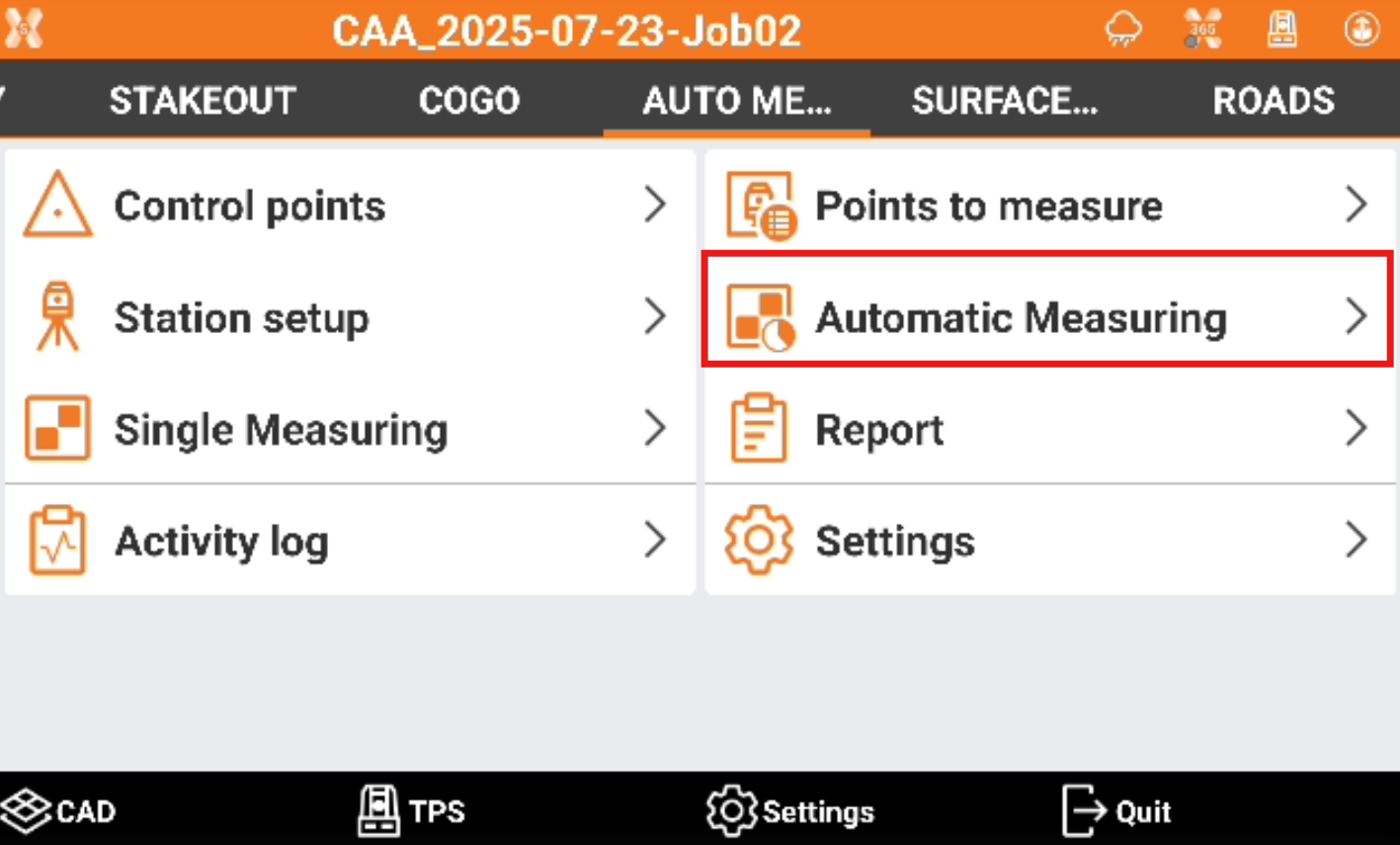

  • Click Automatic measuring.


  • Tap Start measuring to start the automatic measurement procedure based on defined parameters.

  • At the defined time intervals, the connection to the station is activated.

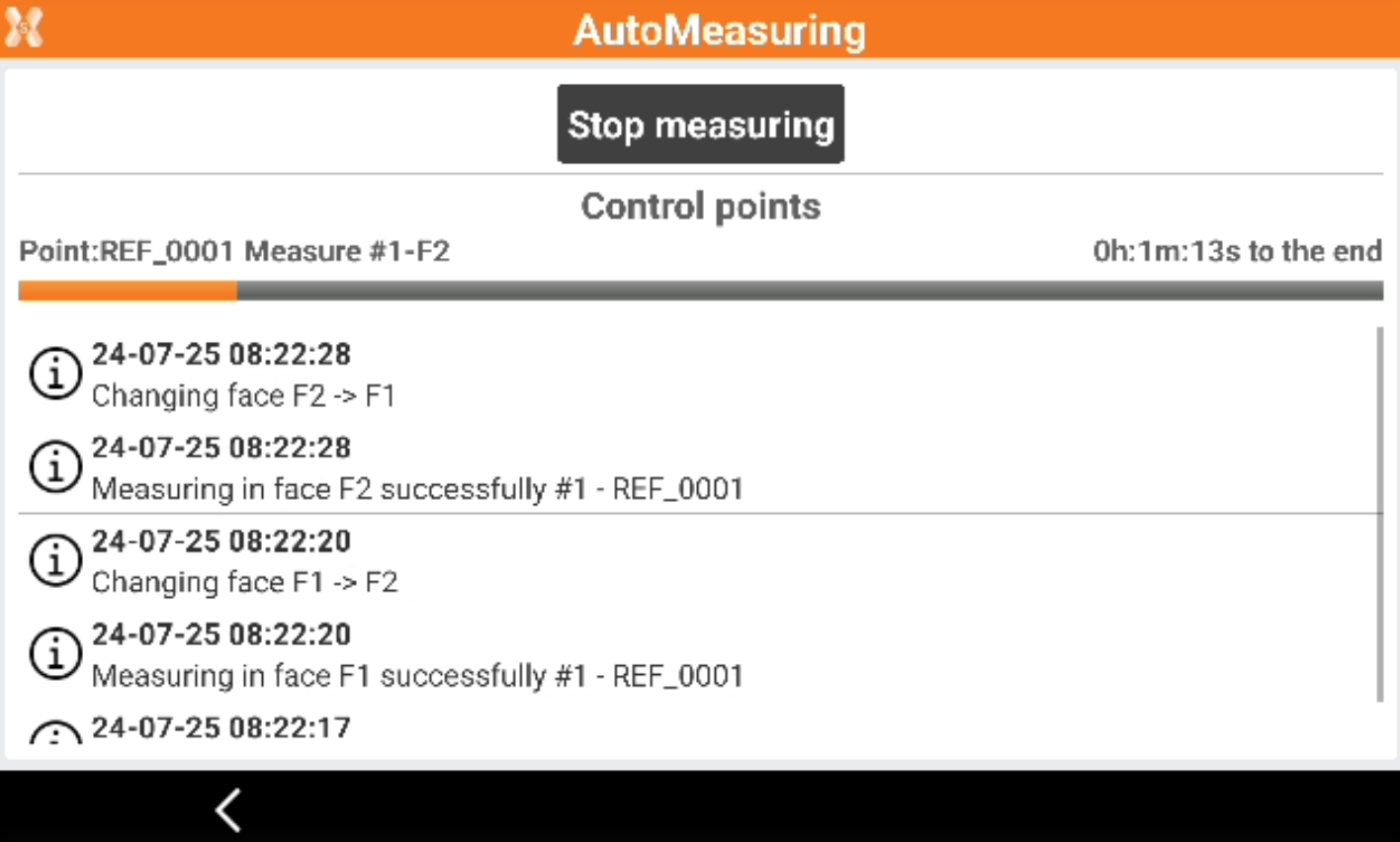

  • A log of operations done is visible on screen and recorded in the activity log.


  • The reference points are measured and the position of the station is checked. A scale factor is applied to correct the distances measured after the environmental temperature and pressure have been added.

  • The defined points are measured automatically.

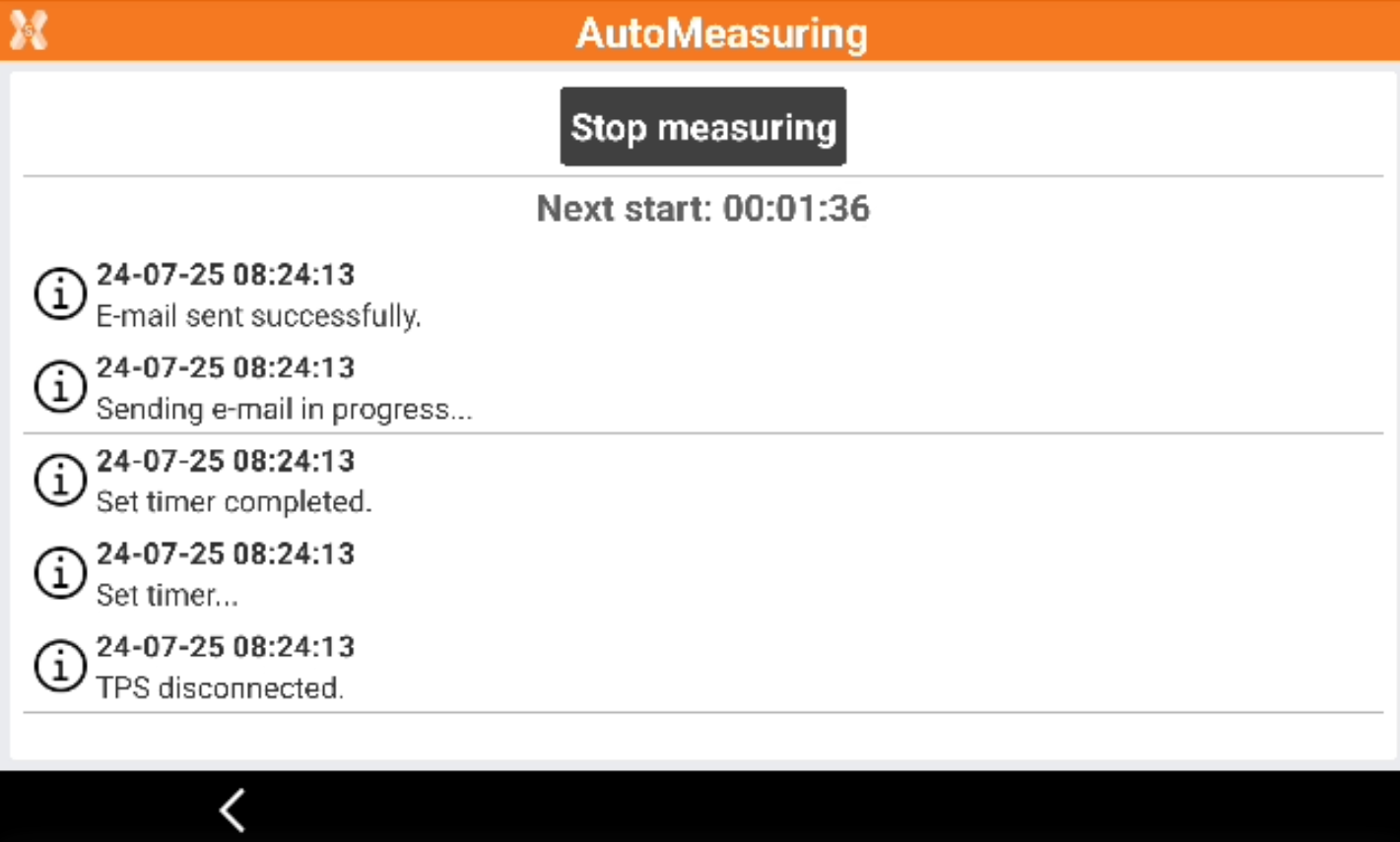

  • At the end of a measuring session, a report is generated that can be sent by e-mail or saved on an FTP area.

  • When problems are found during the measuring sessions notifications can be sent. Problems are for example points not measured or exceeded tolerance.

  • Tap Stop measuring to stop the automatic measurement procedure otherwise the automatic procedure automatically restarts at the defined time internal.
