CAD 3D view

X-PAD Ultimate Survey 1.png | X-PAD Ultimate Build 1.png

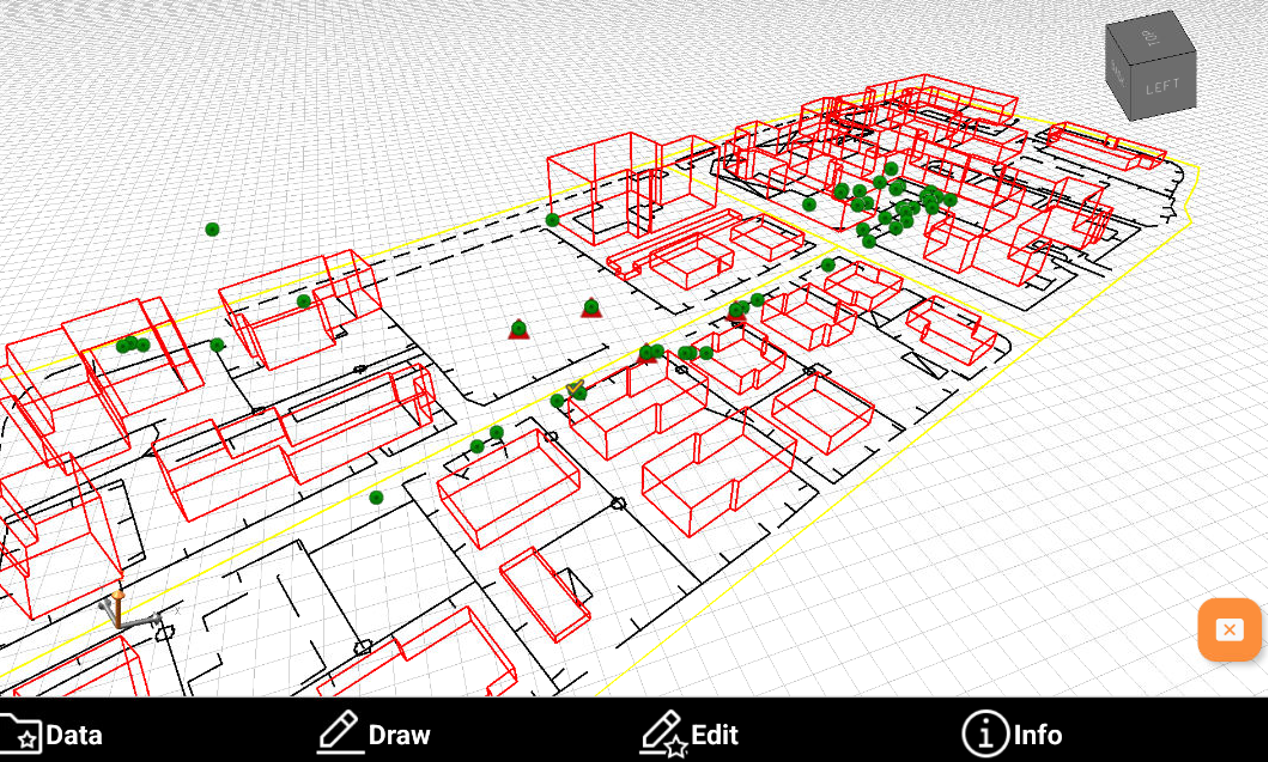

  • The software CAD allows the visualization in 3D.

  • Click 3D image-20250509-094255.png to enable the 3D view.


  • Select one of the predefined views using the faces of the cube.


  • Click on the graphic area and drag to change the point of view.

  • Tap in the graphic area using two fingers and move them apart to zoom in.


  • Tap in the graphic area using two fingers and bring them closer together to zoom out.
