Distance and offset

|

• Distance and offset calculates the position of a new topographic point referring to a reference object.

• Click Edit.

• Select Dist&Offset.

• Select from CAD the reference object referring to which to calculate the position of the point.

• Enter the distance along the reference object.

• Enter the offset from the reference object.

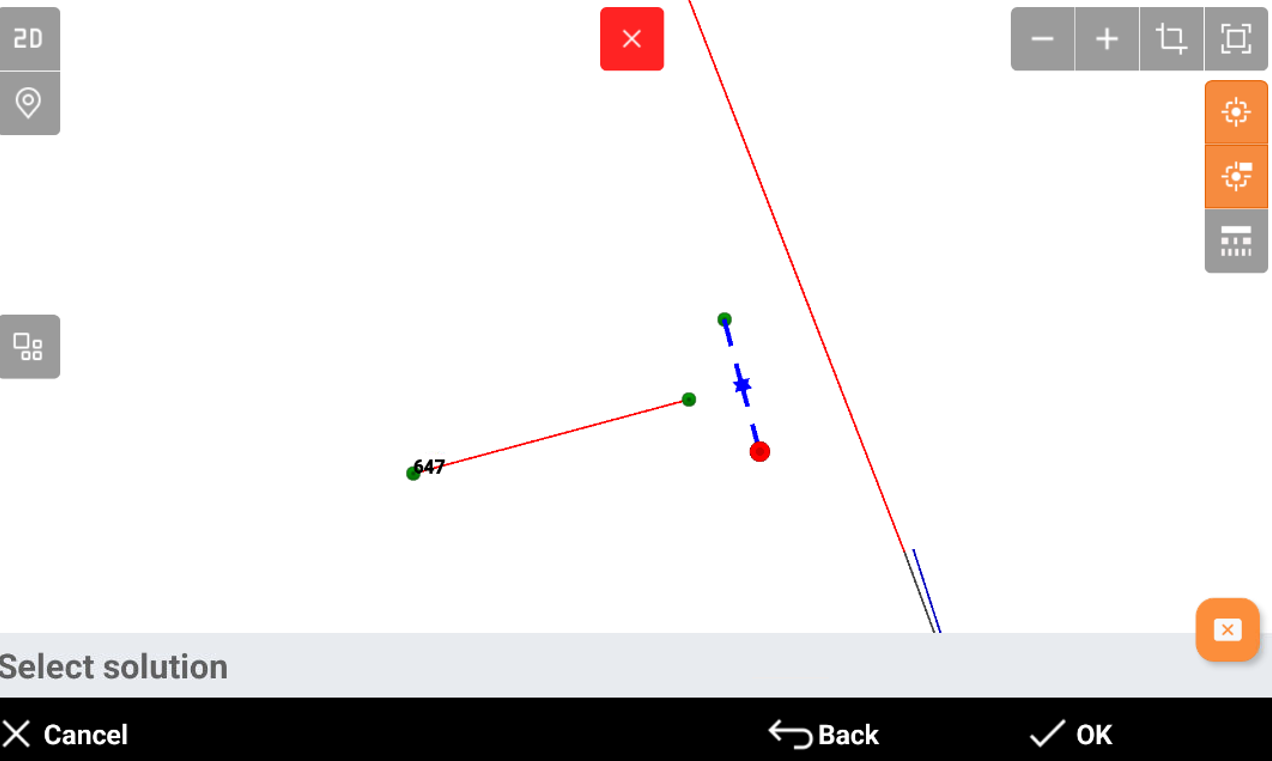

• The software shows the calculation preview.



• Click OK to save the point.
