Export a HeXML file
|
|
The HeXML format is a XML-based data exchange format developed by Hexagon for the surveying and construction industry, enabling data transfer between Leica Captivate instruments and other software. It acts as a hybrid between the standard LandXML format and proprietary data structures, allowing for the export and import of various survey data.
The software allows to export topographic points, reference points, measurements, drawing, code lists and surfaces in HeXML file format.

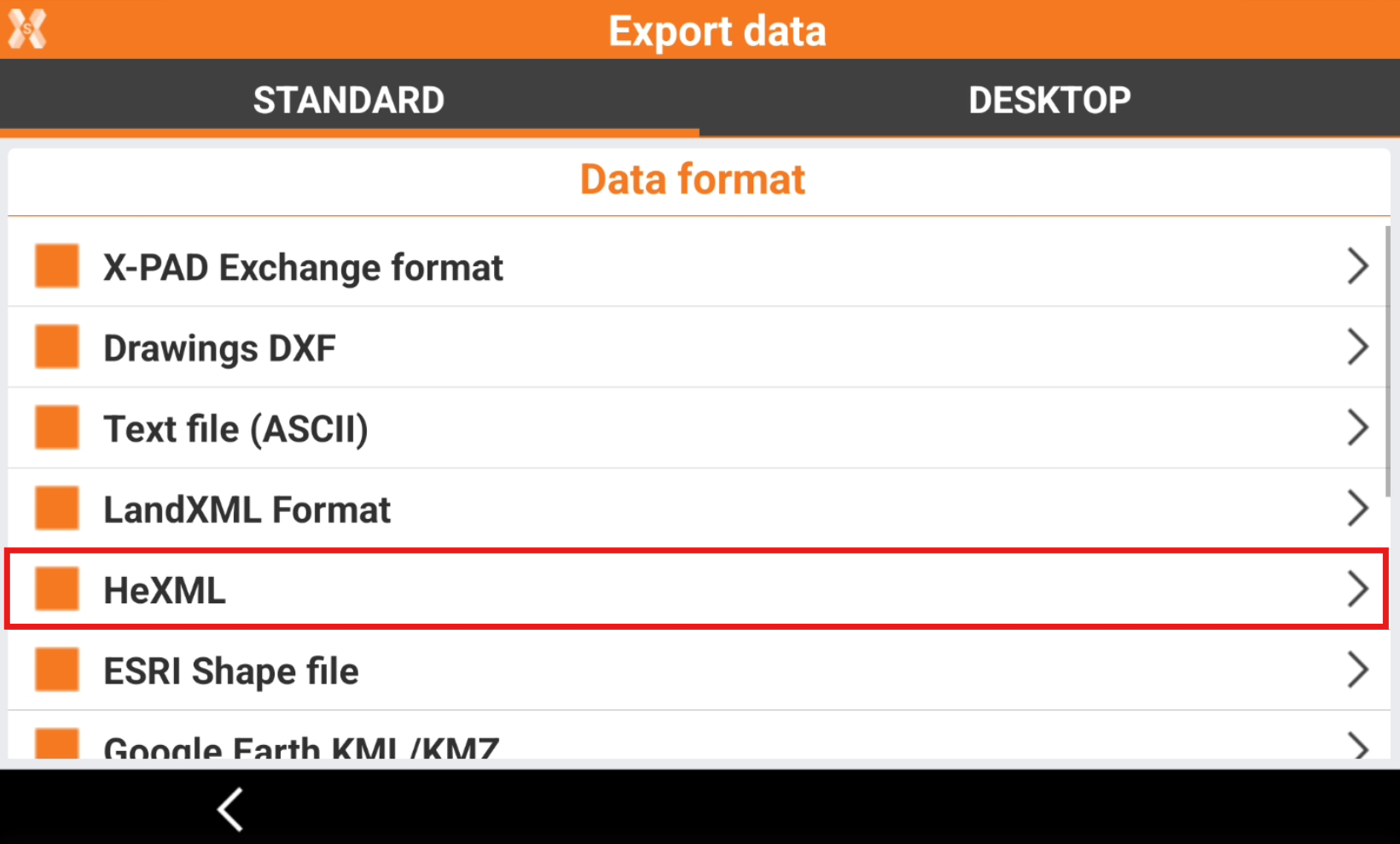

To export the data in HeXML select HeXML Format.

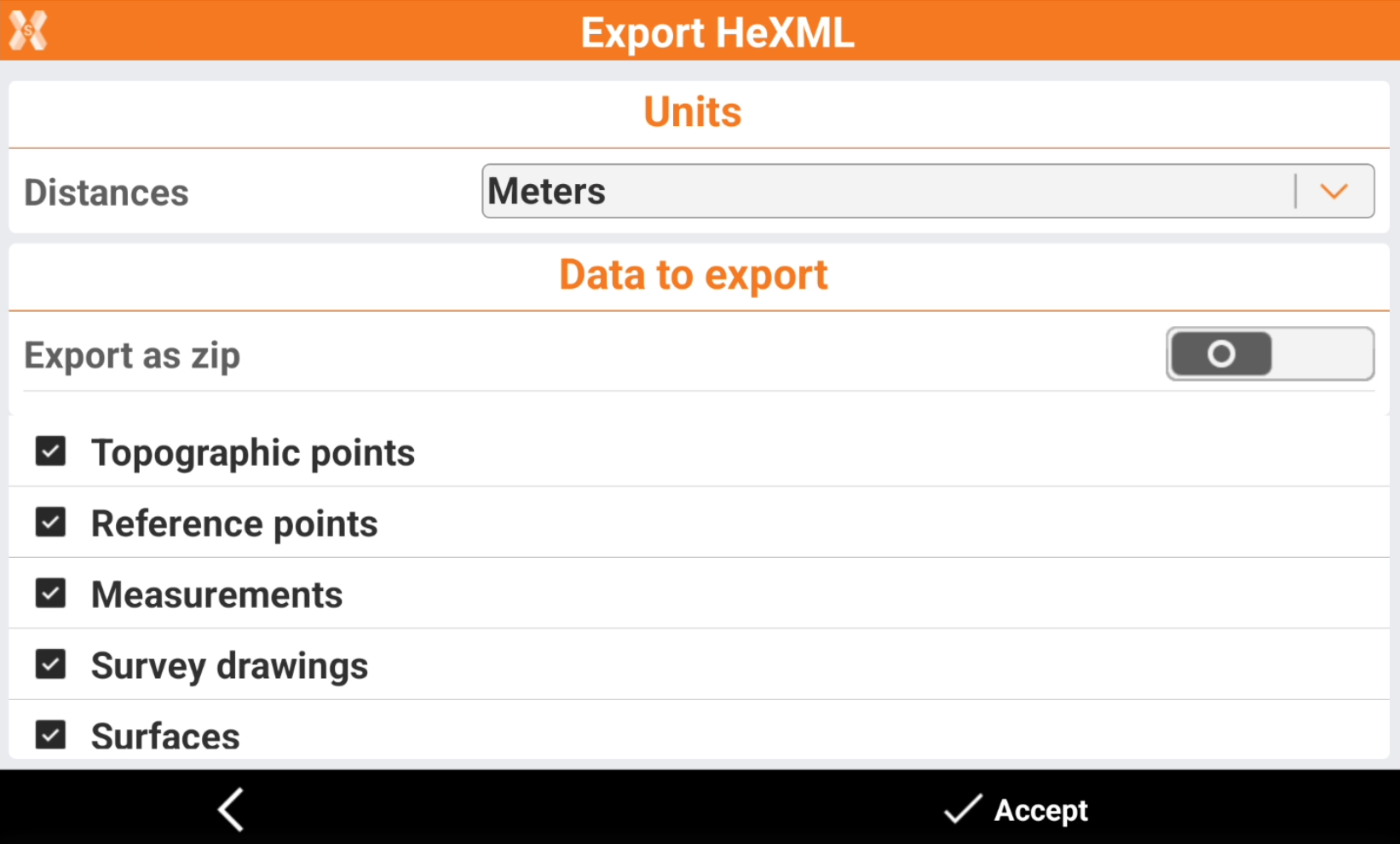

Enter the HeXML Export parameters.
Distances: the units used in the exported file.
Export as zip: the file exported will be compressed in a zip file.
Data to export: allows to select the data to export.
Click Accept to export the file.
