GPS Status page

| |

• The GPS Status page allows to display different information on the GNSS receiver connected:

  • Quality of the signal.

  • Number and position of satellites.

  • Current coordinate.

  • Information about the base and the .

  • Position in a map.

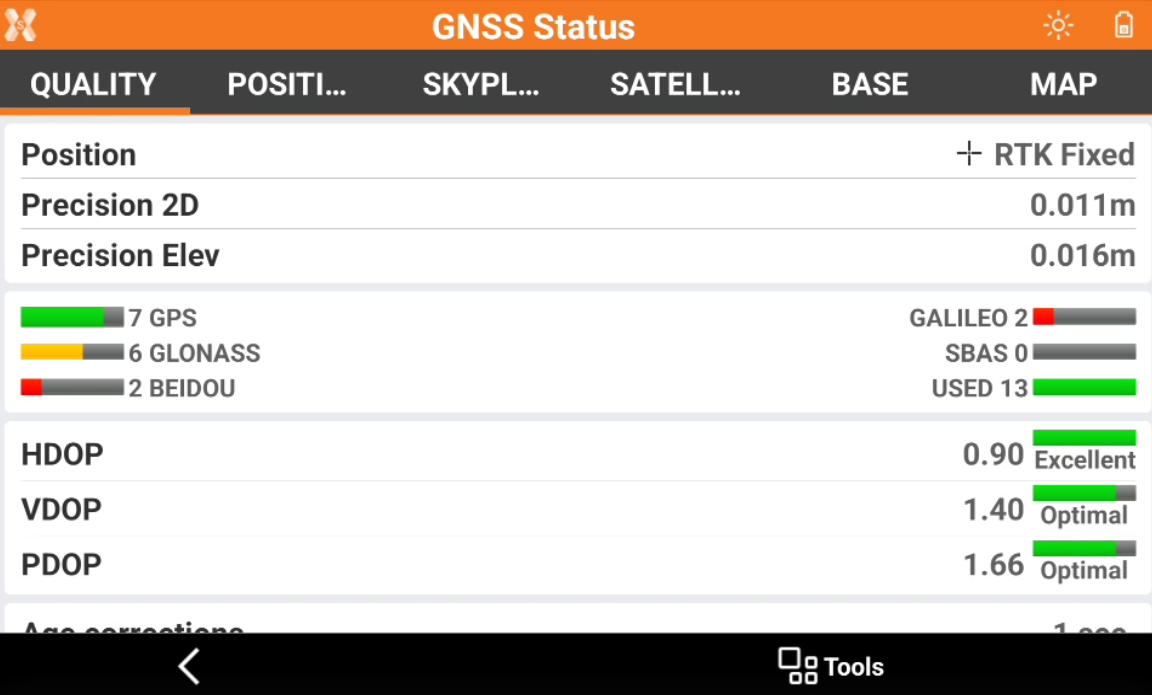

Quality page

• Quality page shows information on the current quality of the GNSS receiver.



  • Position: displays the RTK quality of position.

    • RTK Extra-Safe / RTK SureFix: available for some GNSS receiver models. The receiver gets corrections from a source and has fixed the ambiguities in RTK Extra-Safe / RTK SureFix.

    • RTK Fixed: the receiver gets corrections from a source and has fixed the ambiguities with maximum precision.

    • Quick-Fix: available for some GNSS receiver models. The receiver has fixed the ambiguities but has not reached the maximum precision level yet.

    • RTK Float: the receiver gets corrections from a source but it has not yet fixed ambiguities.

    • DGPS: the receiver gets differential corrections in DGPS mode.

    • Autonomous: the receiver gets positions without receiving corrections from any source in minimum precision.

    • PPP-Fixed: the receiver is receiving corrections using PPP service and ambiguity is fixed.

    • PPP-Float: the receiver is receiving corrections using PPP service and ambiguity is still not fixed.

  • Precision 2D: precision of the current position regarding coordinates.

  • Precision Elev: precision of the current position regarding elevation.

  • RTK Extra-Safe / RTK SureFix: available for Zenith 35/Zenith 60/ Zenith 60 Pro. Using this option in environments with signal partially blocked allows to have a solution slower getting the fix status but likely less to be erroneous.

  • Satellites: number of satellites of the different constellations.

  • HDOP: Horizontal Dilution of Precision.

  • VDOP: Vertical Dilution of Precision.

  • PDOP: General Dilution of Precision related to the satellites position.

  • Age corrections: delay in receiving corrections in seconds. A high value indicates missing reception of corrections.

  • GSM Signal: level of GSM signal.

  • NTRIP Server: name of the used NTRIP server.

  • Mountpoint: name of the mountpoint with available access. Click on the mountpoint to change mountpoint.

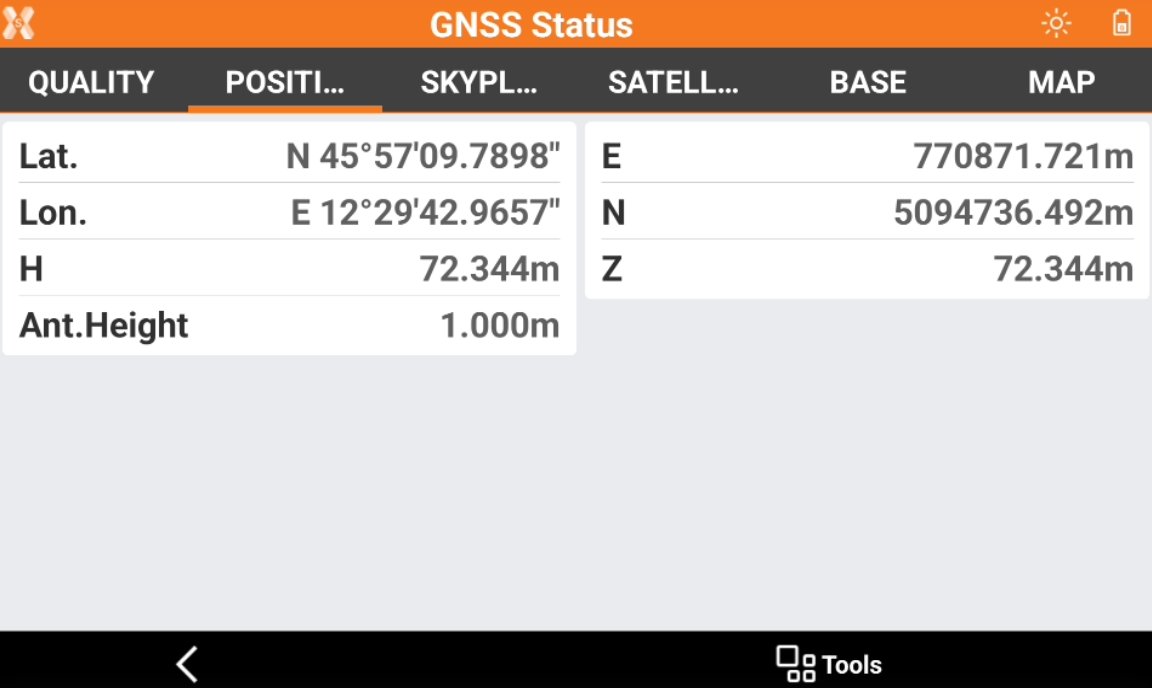

Position page

• The Position page shows the current GNSS receiver position with its geodetic coordinate and local coordinate based on the defined GNSS localization method.

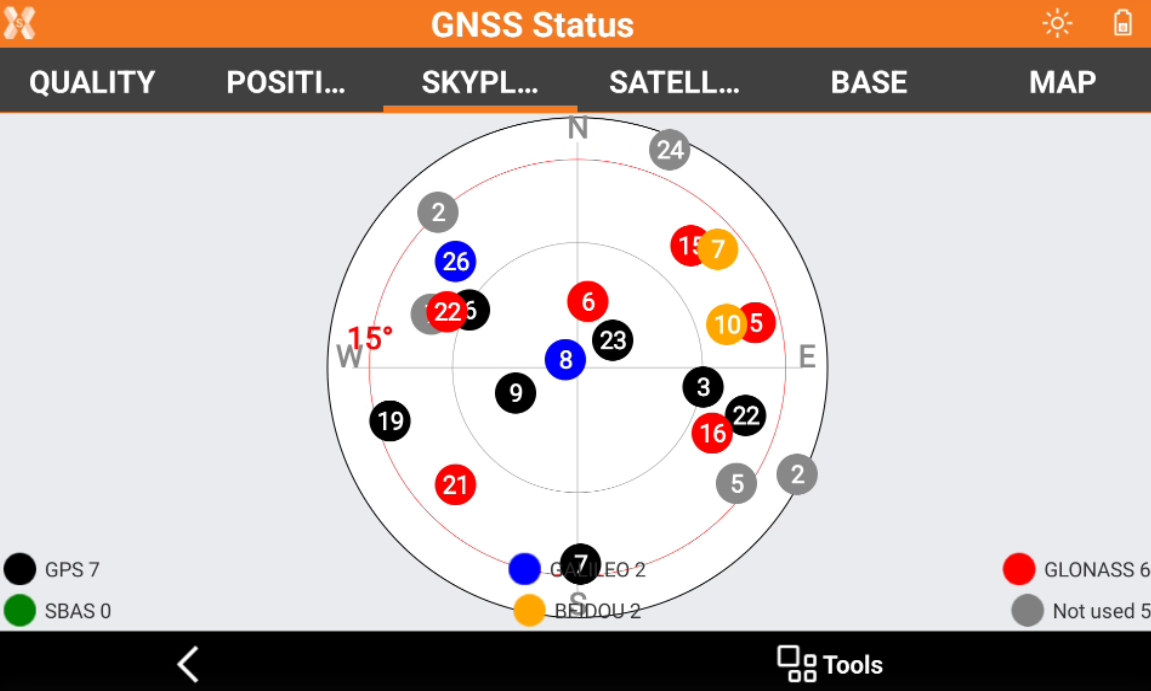

Skyplot page

• Displays position and elevation of the tracked satellites. Click a satellite open a window showing all related information.

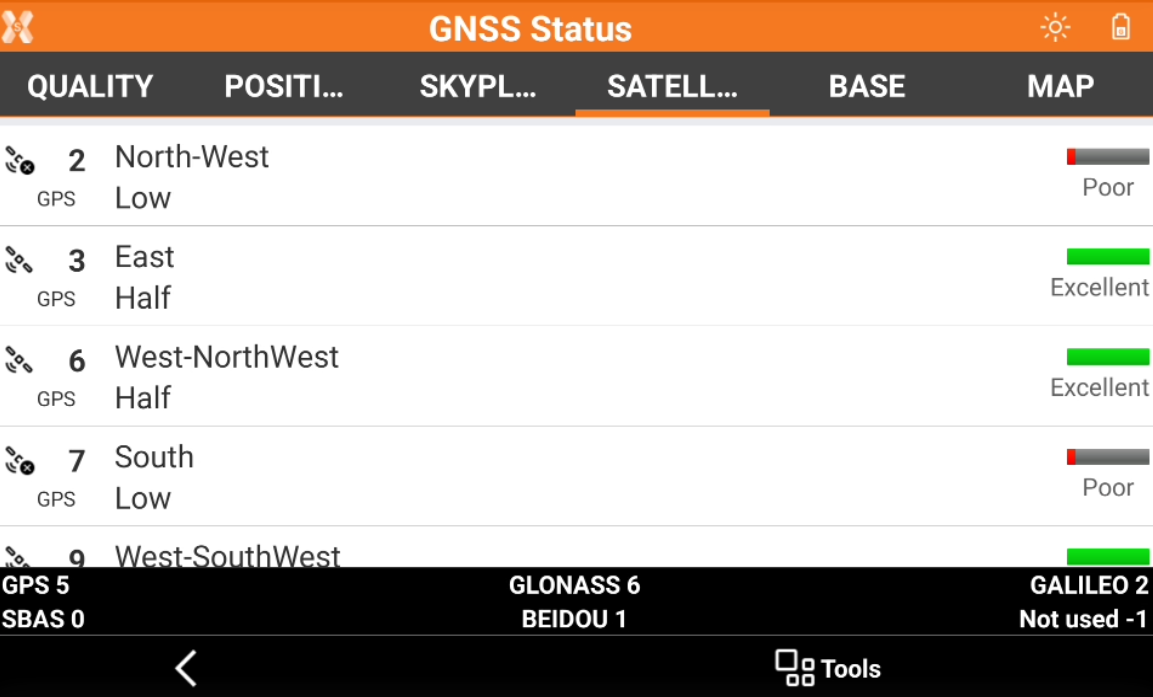

Satellite page

• Displays a list of all tracked satellites including related information.



  • : satellite contributing to the position calculation.

  • : satellite ignored.

  • : number of the satellite, constellation and satellite position and elevation.

  • : signal quality.

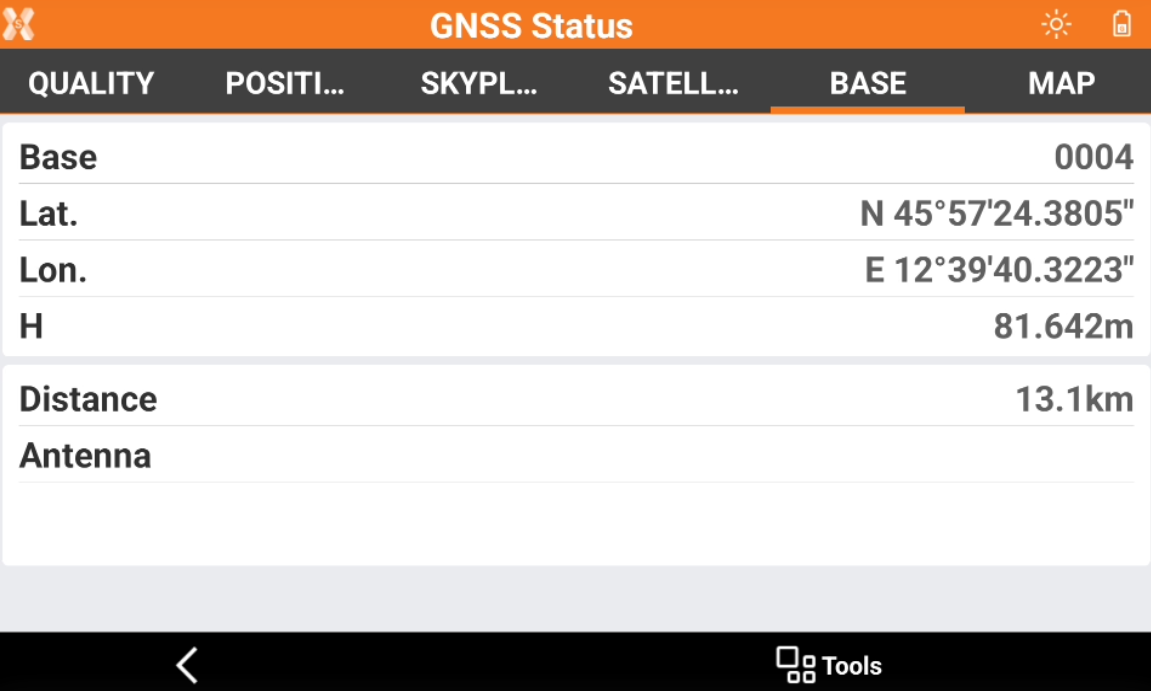

Base page

• Displays information related to the reference base.



  • Base: name of the base.

  • Lat., Lon., Elevation: coordinates of the base.

  • Distance: distance between base and current position.

  • Antenna: antenna model of the base.

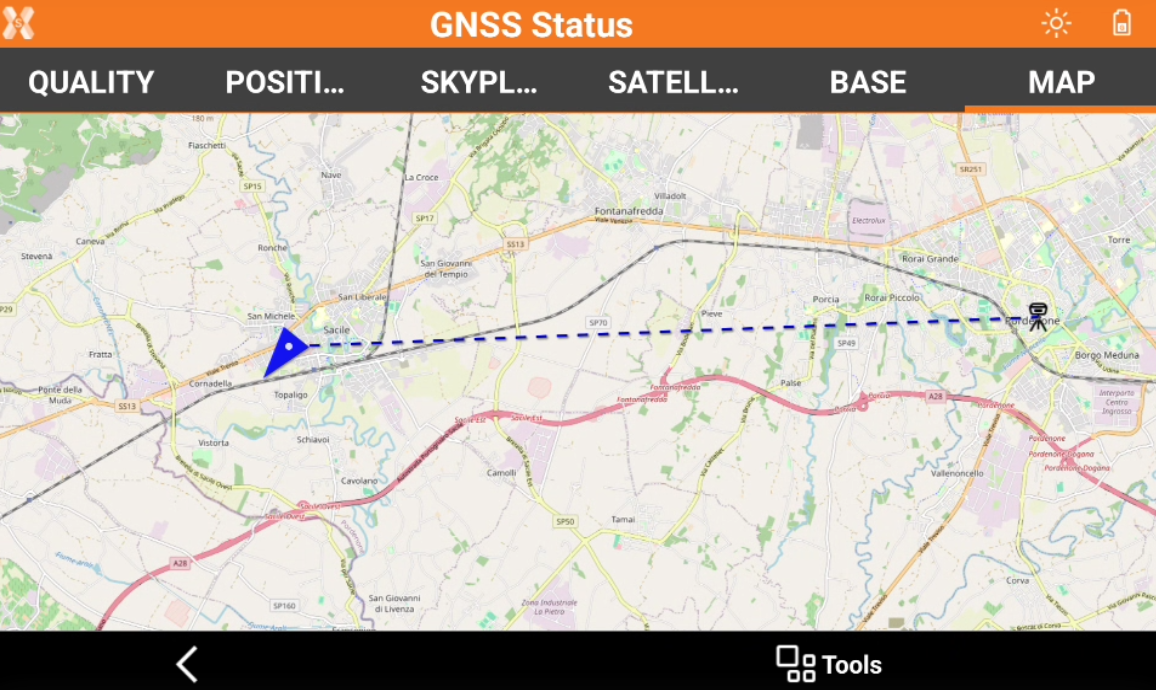

Map page

• Displays the current position in a map.
