Import and export reference points to different job

• The software allows to import and export reference points from the current job to a different job.

• Click Job.

• Click Points/Measurements/Codes.

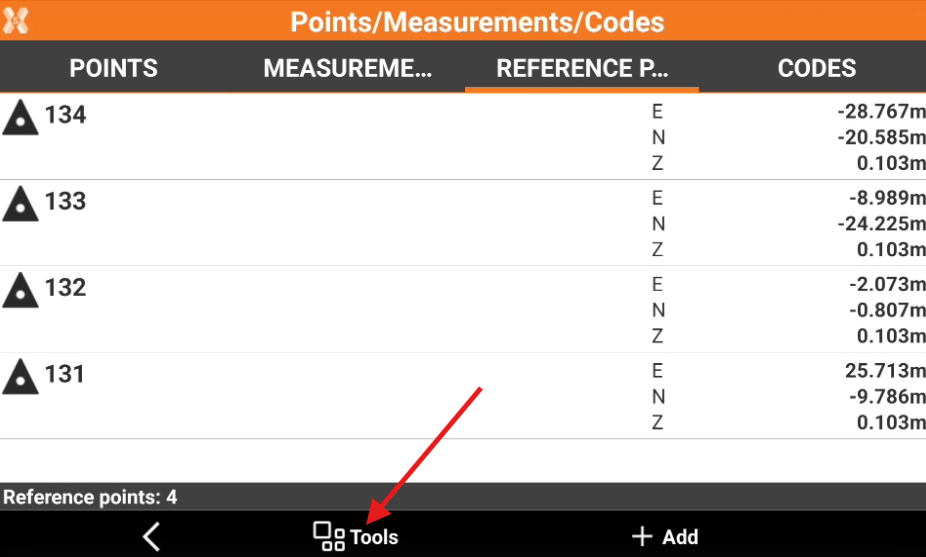

• Open the Reference points tab.

• Click Tools to open the list of available tools.



Import reference points from another job

• Click Tools.

• Click Save/Load.

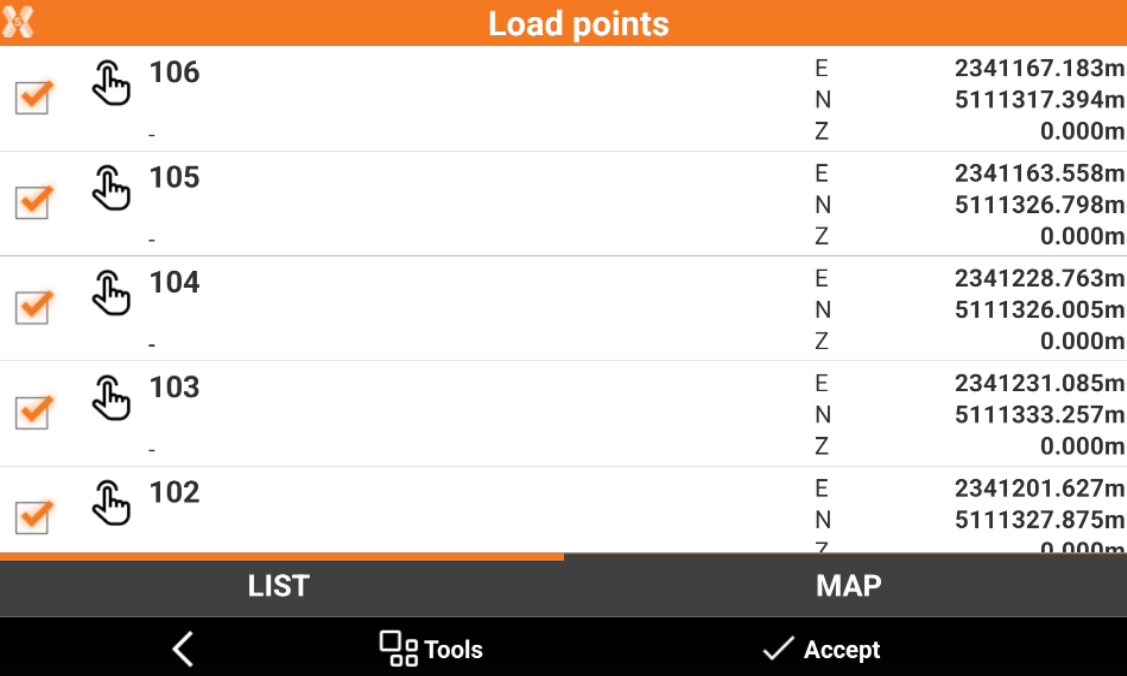

• Select Load points from job.

• Select the job from the list of available job.

• Check the reference points from the list, or click Tools to use Selection rules or select/deselect all the points.



• Click Accept to import the selected points in the current job.

Export reference points to another job

• Click Tools.

• Click Save/Load.

• Select Save points to job.

• Check the points from the list, or click Tools to use Selection rules or select/deselect all the points.

• Select the job from the list of available job to export the reference points to the selected job.
