Instrument simulator for exhibitions and game mode

• The software offers modes to show the instrument in exhibitions with a simulation mode and a game mode.

Configuring the robotic total station in simulator mode for exhibitions

• The software, when working with a robotic total station, offers the possibility to configure the total station to automatically rotate.

• This configuration can be used in exhibitions when displaying the instrument.

• Crete a new job called FAIR.

• Open the Survey page.

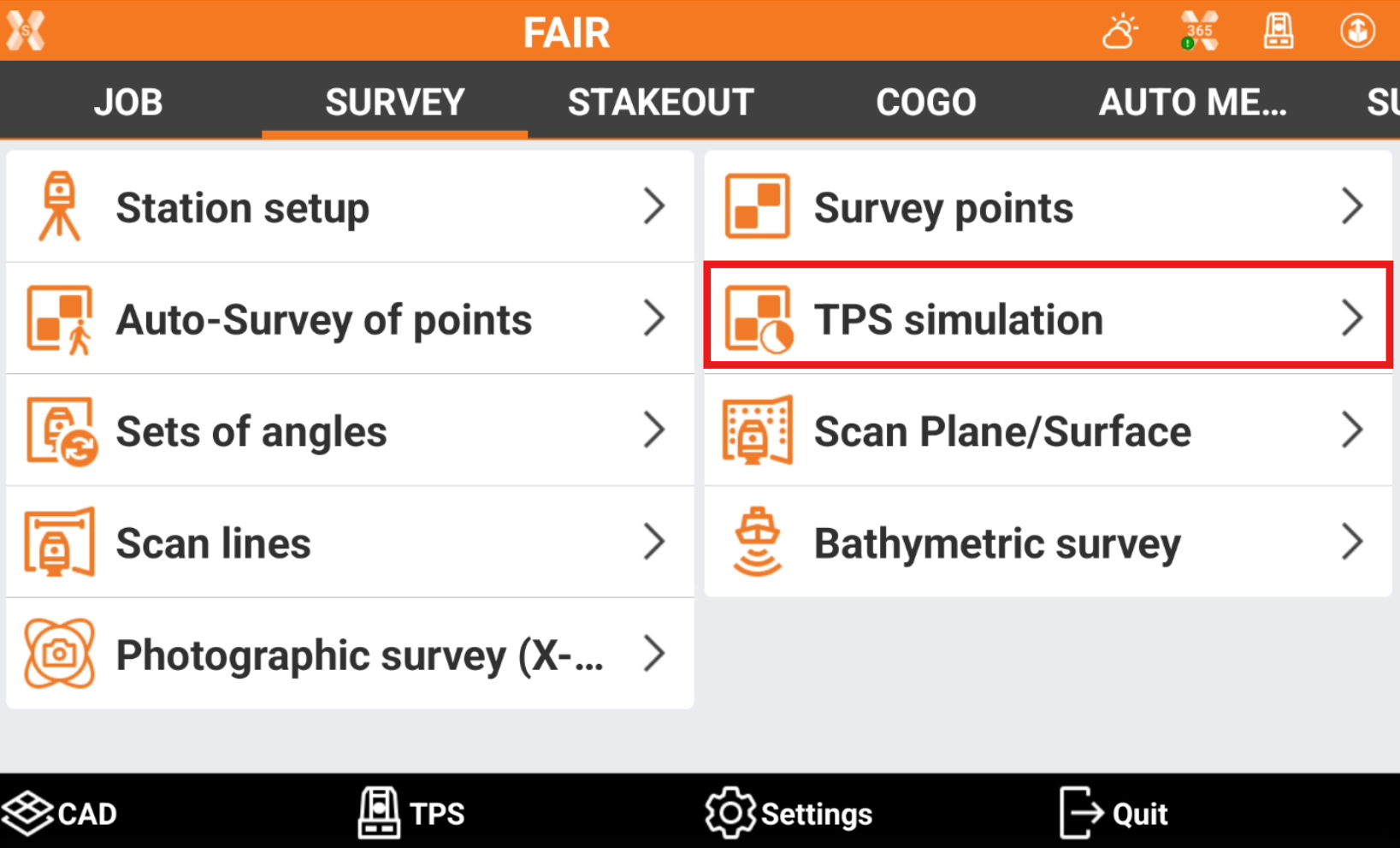

• Click TPS simulation.

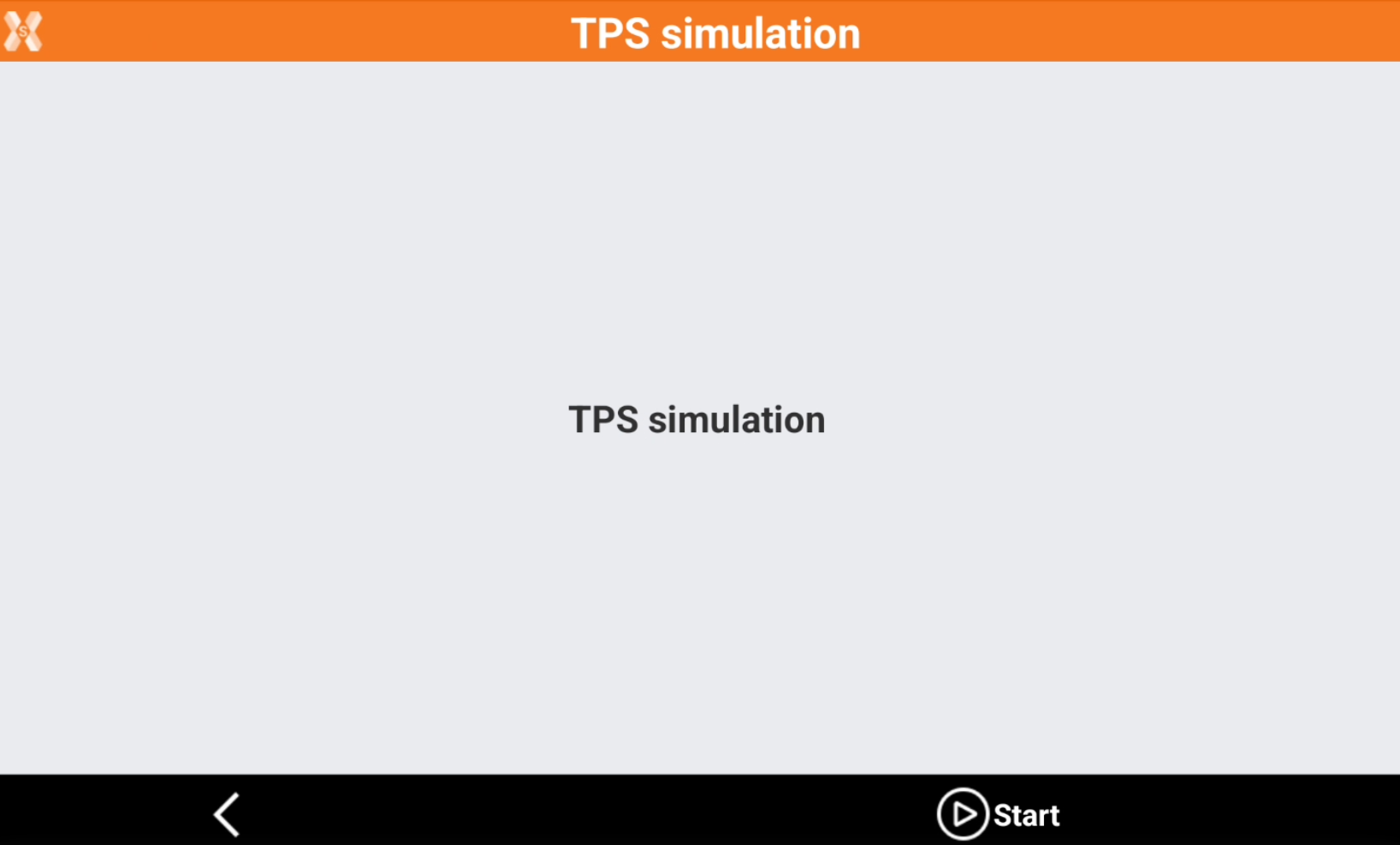

• Click Start to start the automatic instrument rotation.



Configuring the robotic total station in game mode for exhibitions

• The software, when working with a robotic total station, offers the possibility to configure the total station in a stakeout game mode to be used during exhibitions.

• The goal of the game is to stakeout four points. Each time a point is measured an image is visualized.

• To enable the game mode, unzip and copy the StakeoutGame folder with the images and texts in folder X-PAD/_Data folder on controller.

• It is possible to edit the game texts in the StakeoutGame_Strings.txt file and replace the images, keeping same name.

  • StakeoutGame.zip

• Crete a new job. The job name must contain words “Stakeout” and “Game”.

• Check that these 4 requirements are satisfied.

  1. Job Name must contain words “Stakeout” and “Game”,

  2. A TPS profile set as current instrument,

  3. The job must have at least 4 points.

  4. StakeoutGame folder has been copied in X-PAD\_Data folder.

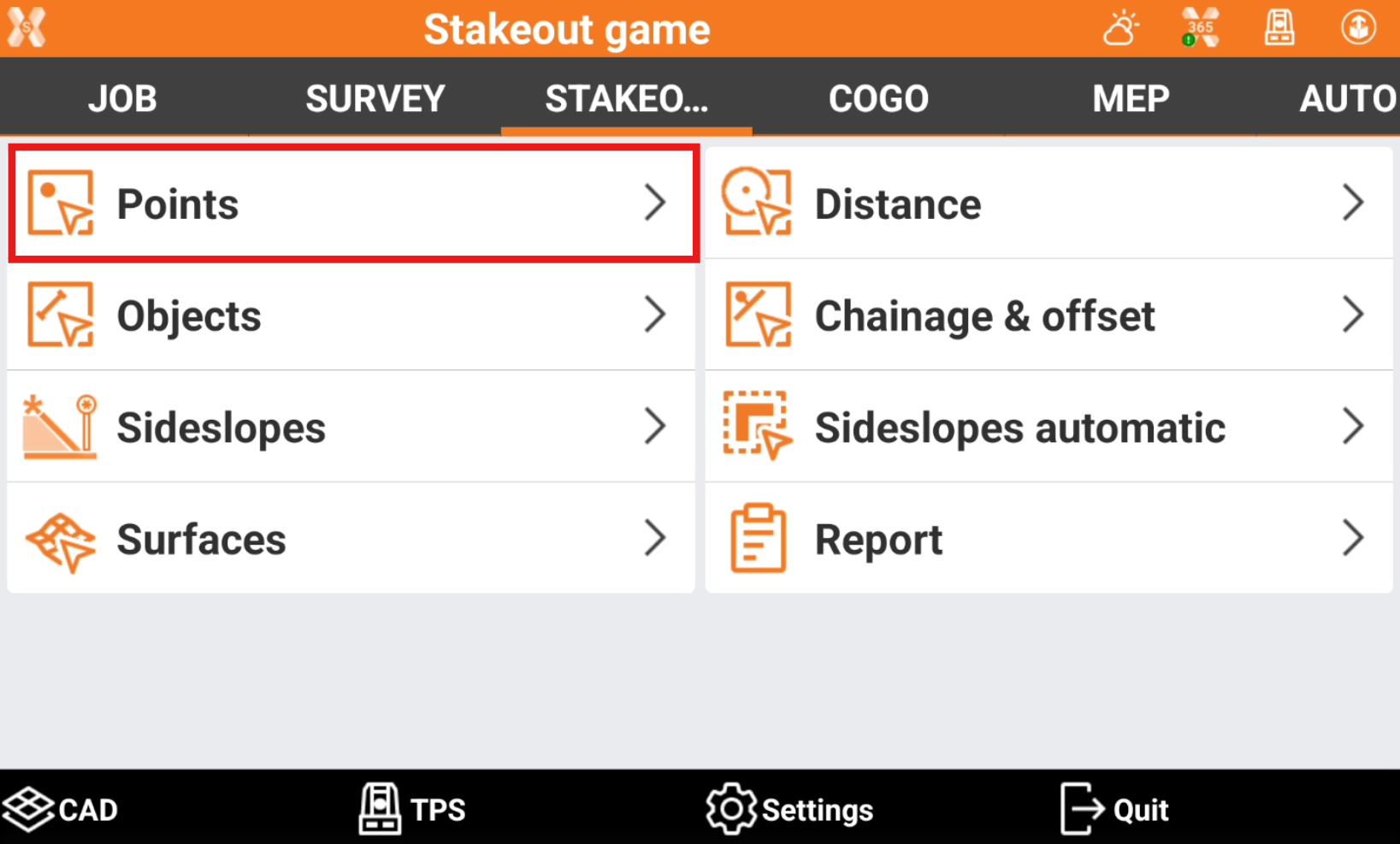

• Select Stakeout and Stakeoue points page.

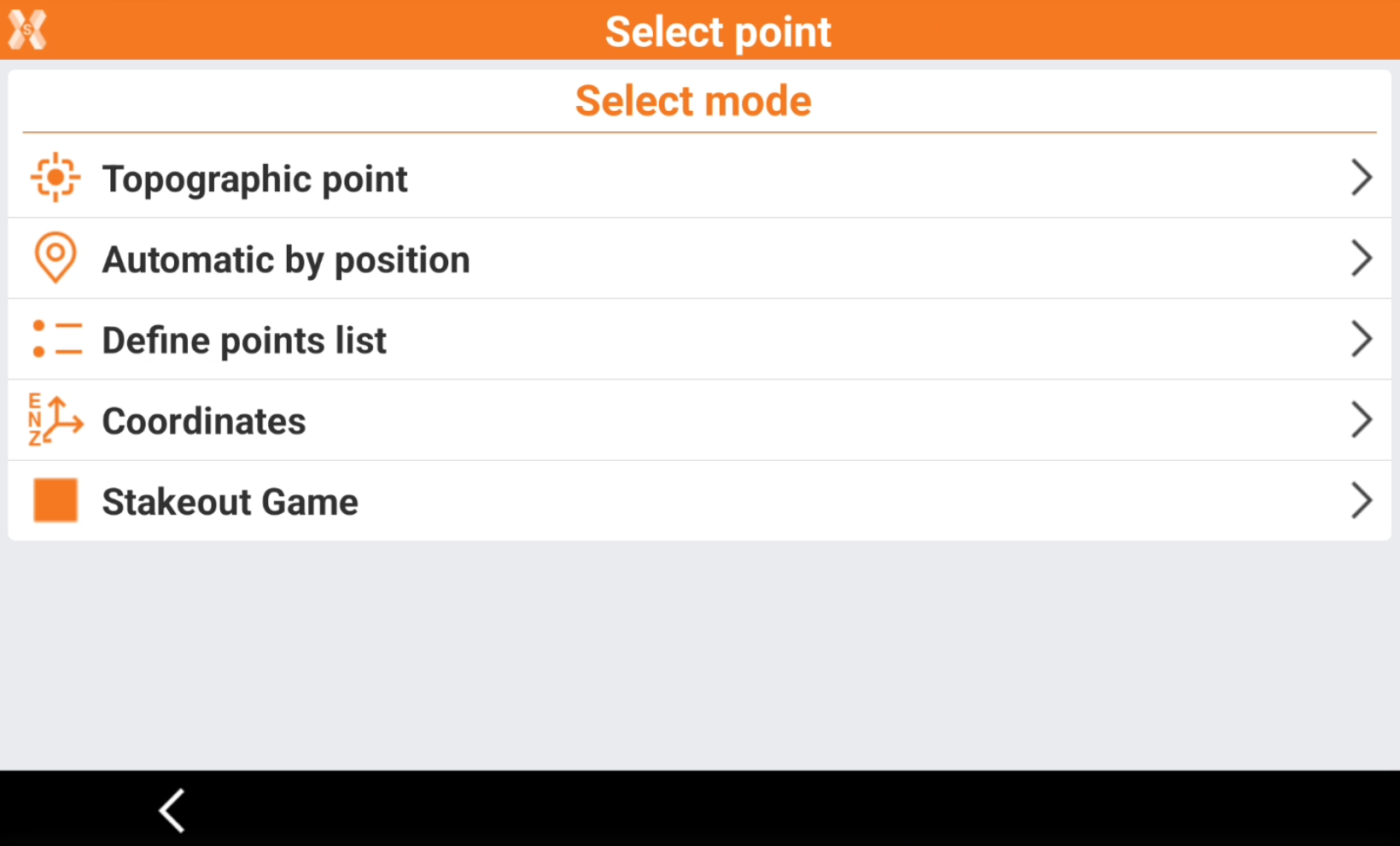

• Select Stakeout Game.

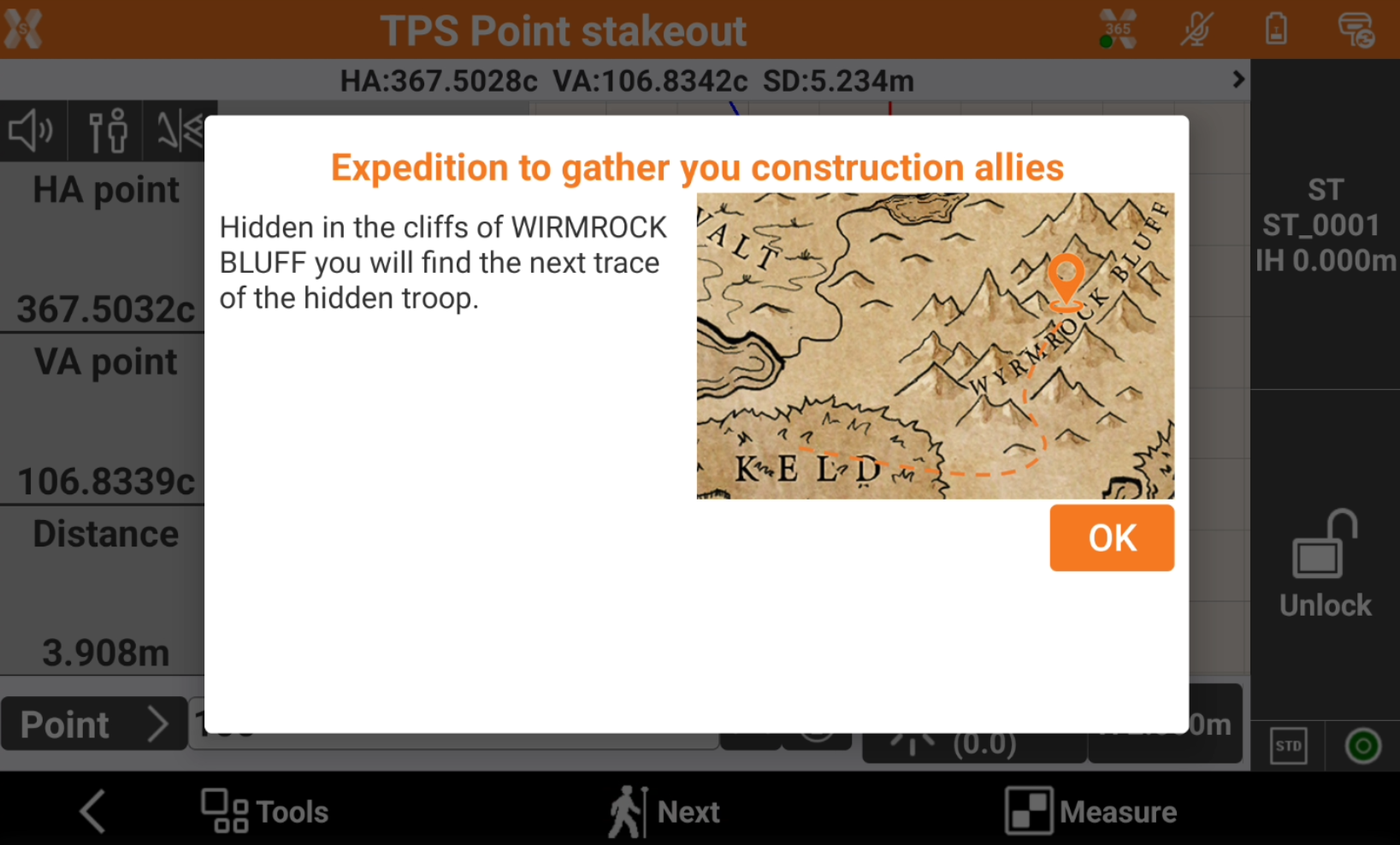

• The game starts.

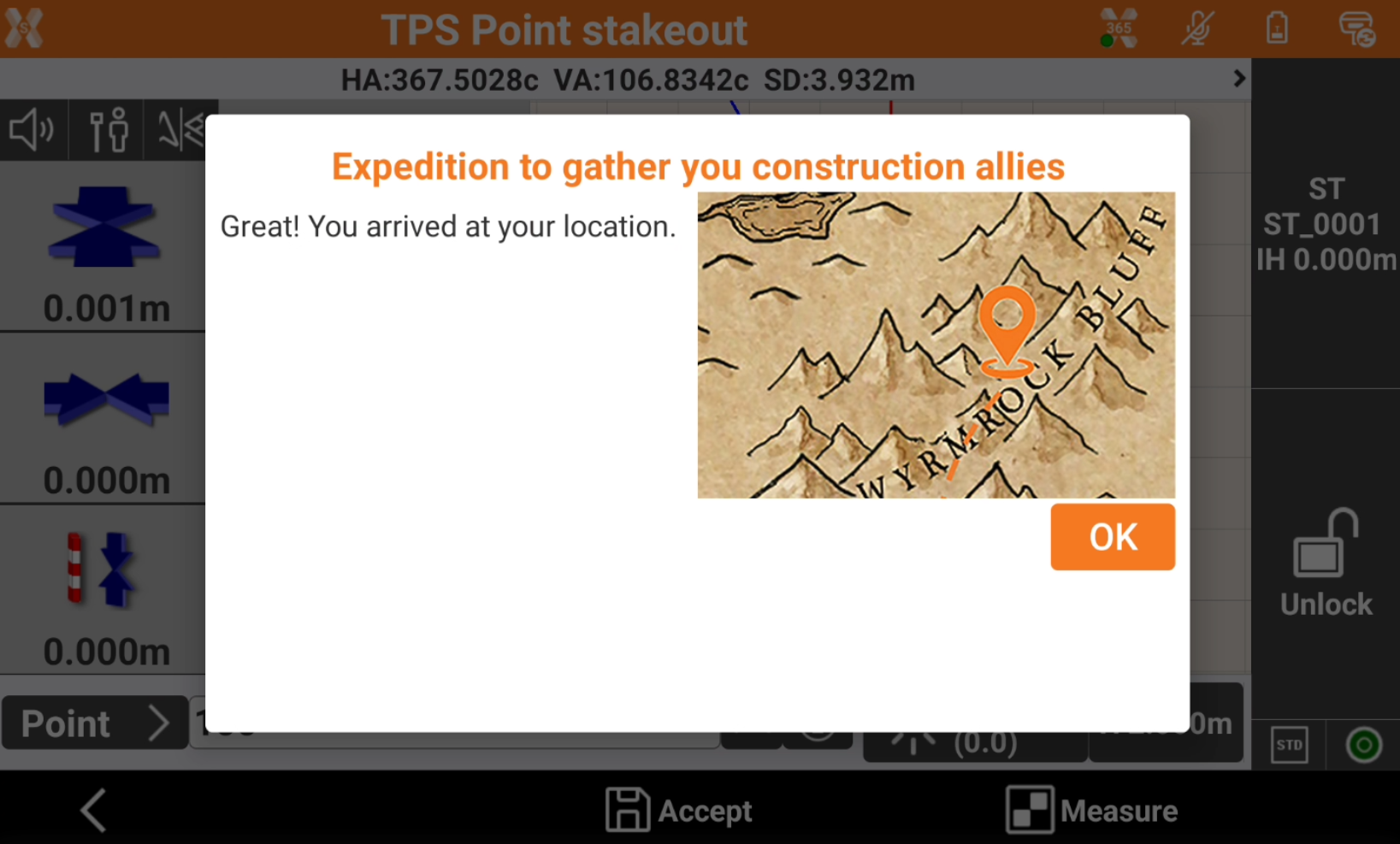

• Stakeout the correct point to proceed with the game.

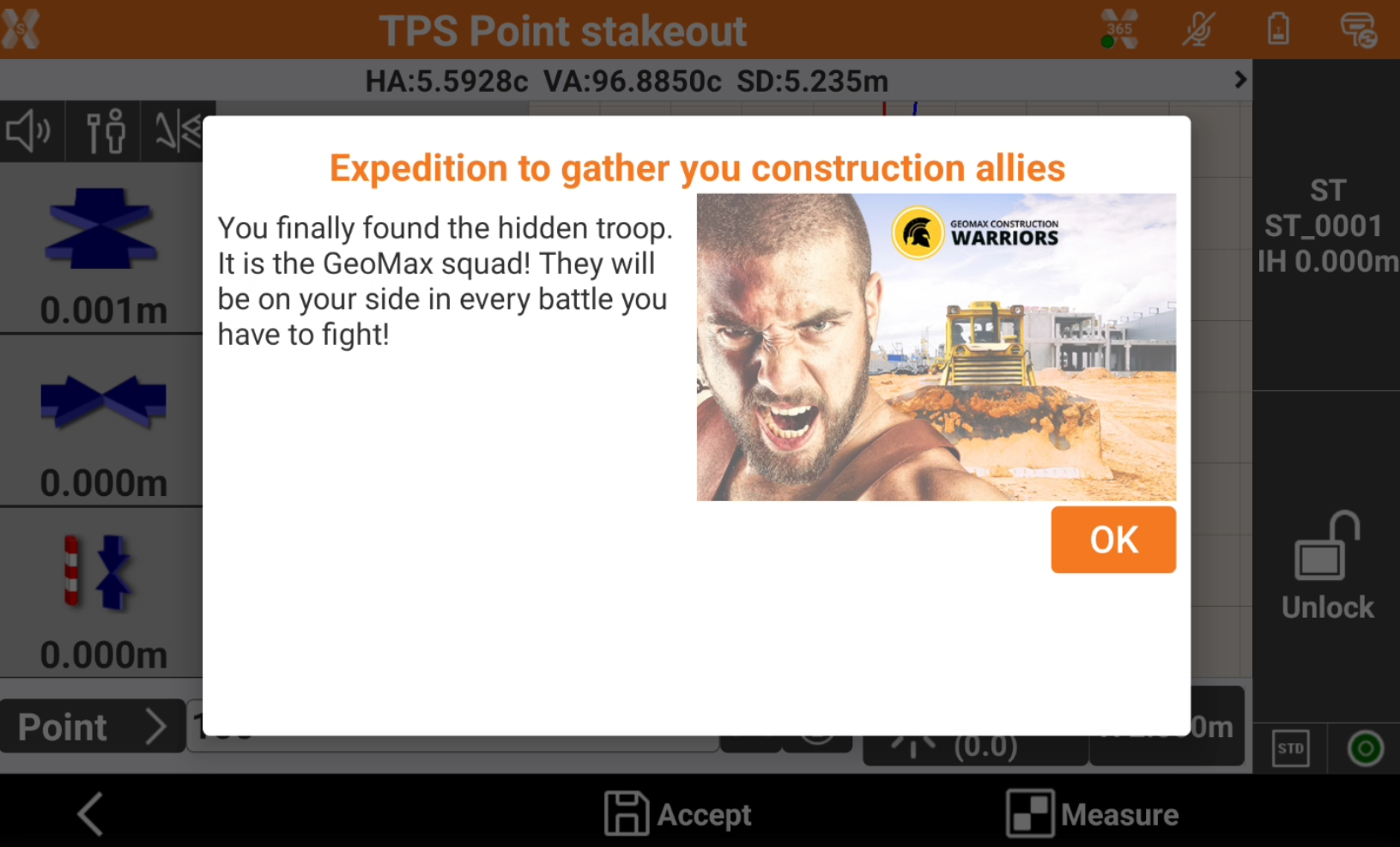

• When all points available in point list have been measured, the game is concluded.
