Join

|

• Join merges several entities so that they have one point in common. Example: Multiple lines that must be managed as a single polyline.

• Click Edit.

• Select Join.

• Select the object in CAD.



  • Cancel: cancel the current operation.

  • Select area: select all objects inside the defined area.

  • Select all: select all CAD objects.

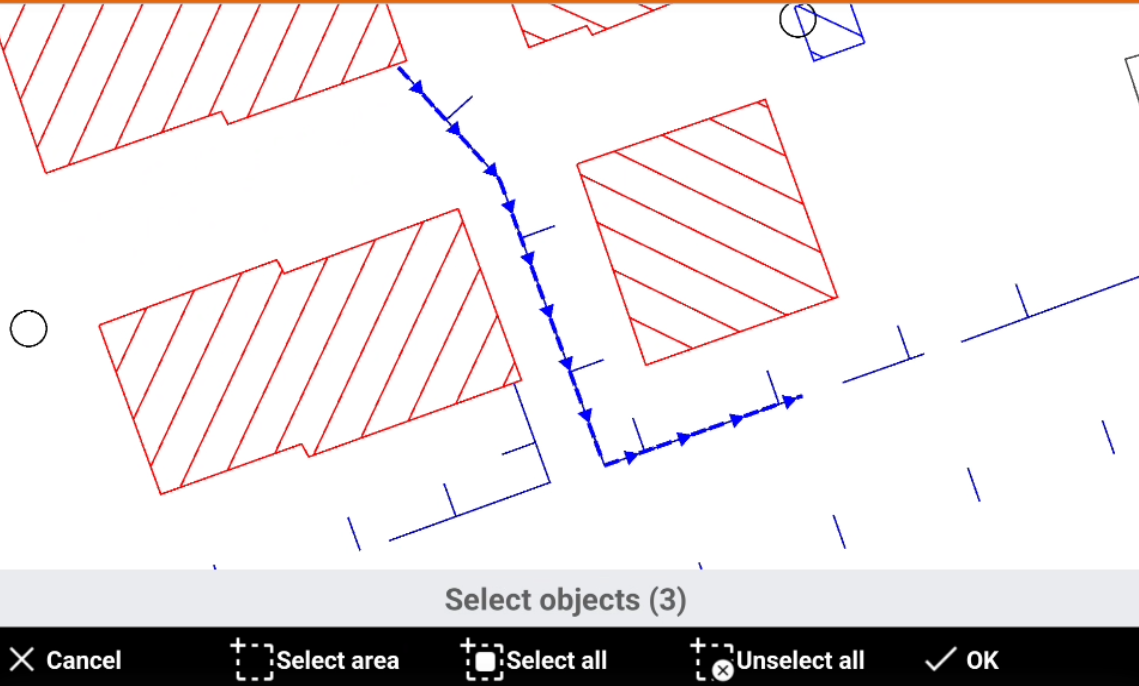

  • More options: after object are selected, click here to access additional options:

    • Select all: select all CAD objects.

    • Unselect all: unselect all CAD objects that have been selected.

    • Invert selection: inverts the selection. Selected elements become unselected, and unselected elements become selected.

  • OK: confirms the selection.

• The selected objects are joined together.
