Lengthen

|

• Lengthen extends an object like a line, a polyline or an arc to a defined length. Or extend a line defined by two points which also indicates the direction where to create the point.

• Click Edit.

• Select Lengthen.

• Enter the distance by which to lengthen an object.

• Select in CAD the object to extend or select the first point.

• For first point, select the second point.

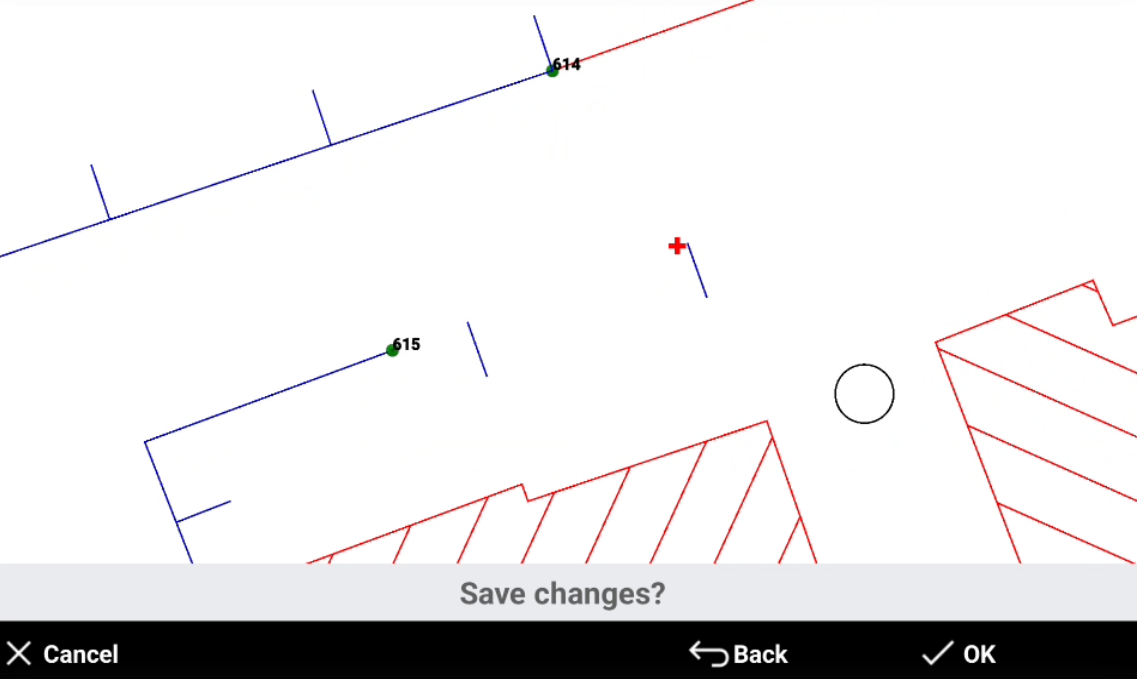

• The software shows a preview of the result. Click OK to save the changes.

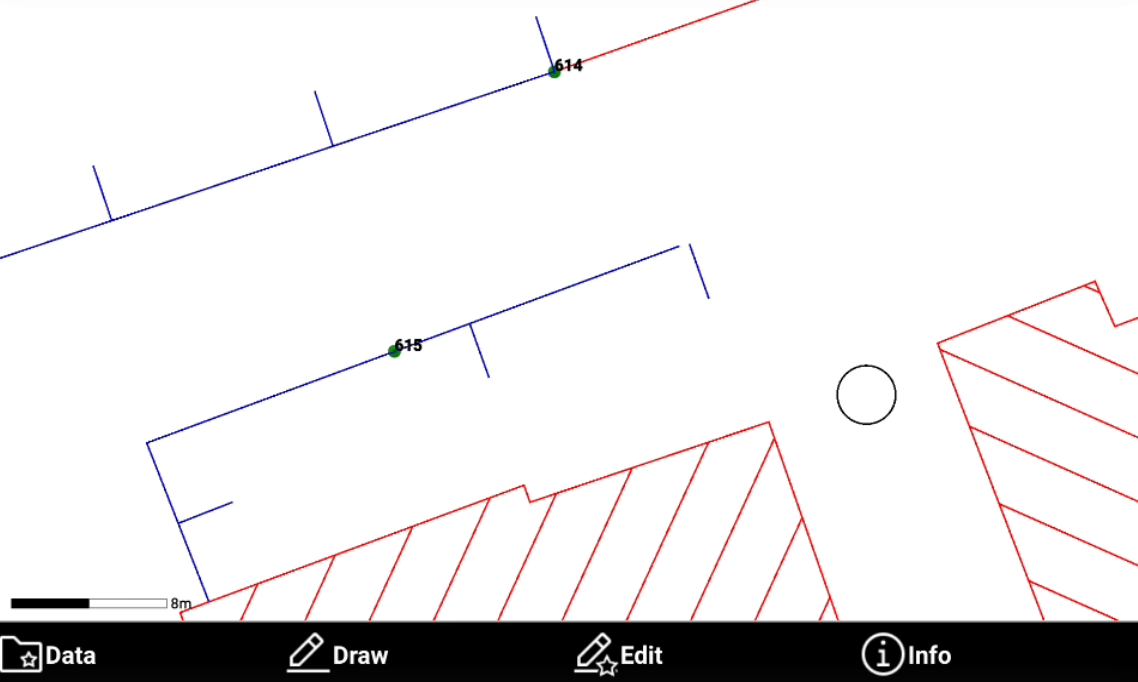

• The object has been created.
