Offset

X-PAD Ultimate Survey 1.png | X-PAD Ultimate Build 1.png

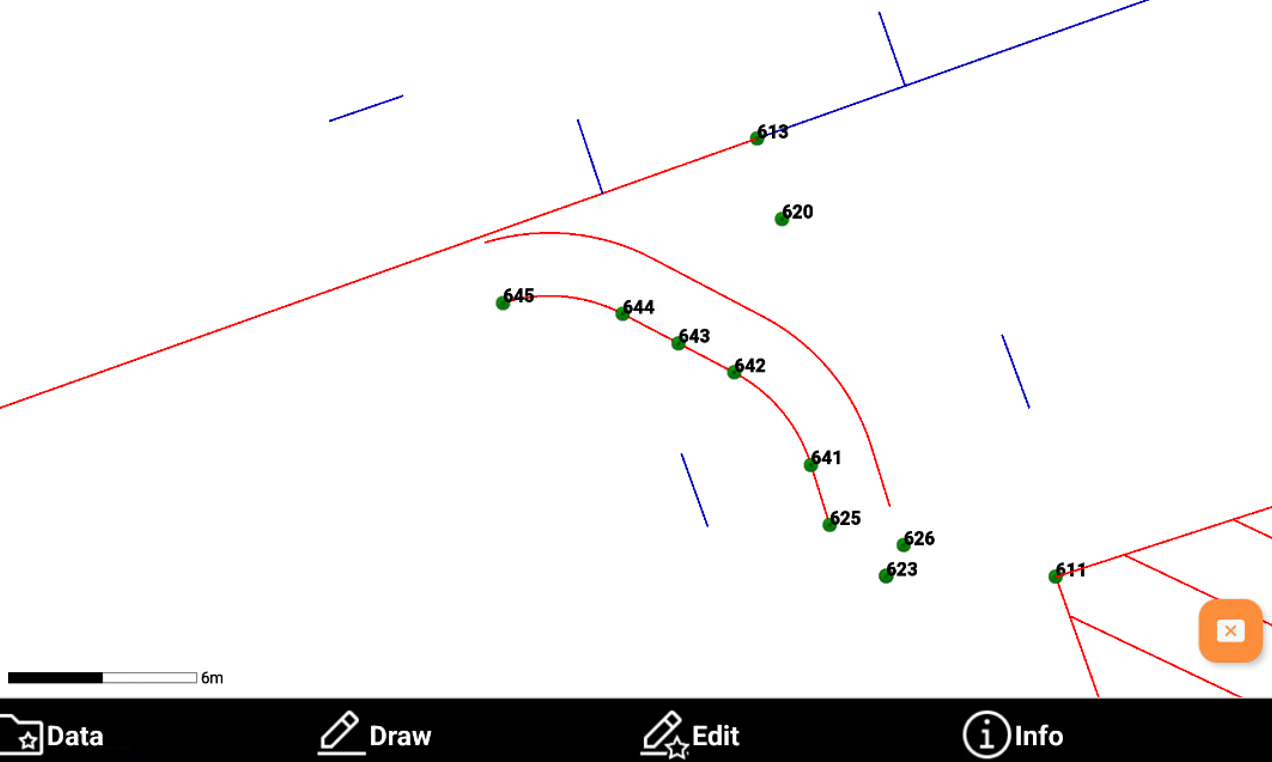

  • Offset function creates an object parallel to reference object at a defined distance.

  • Click Edit.

  • Select Offset.

  • Select the objects to offset.

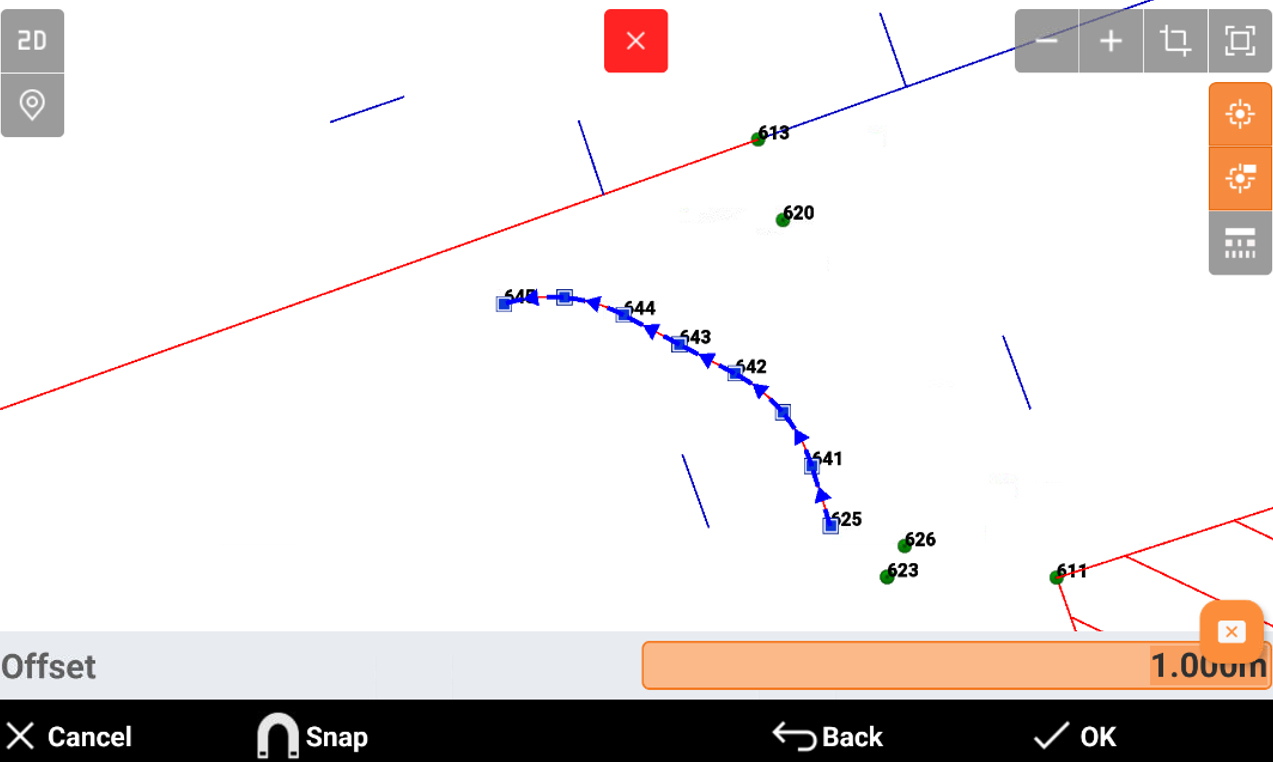

  • Enter the horizontal offset and the vertical offset.

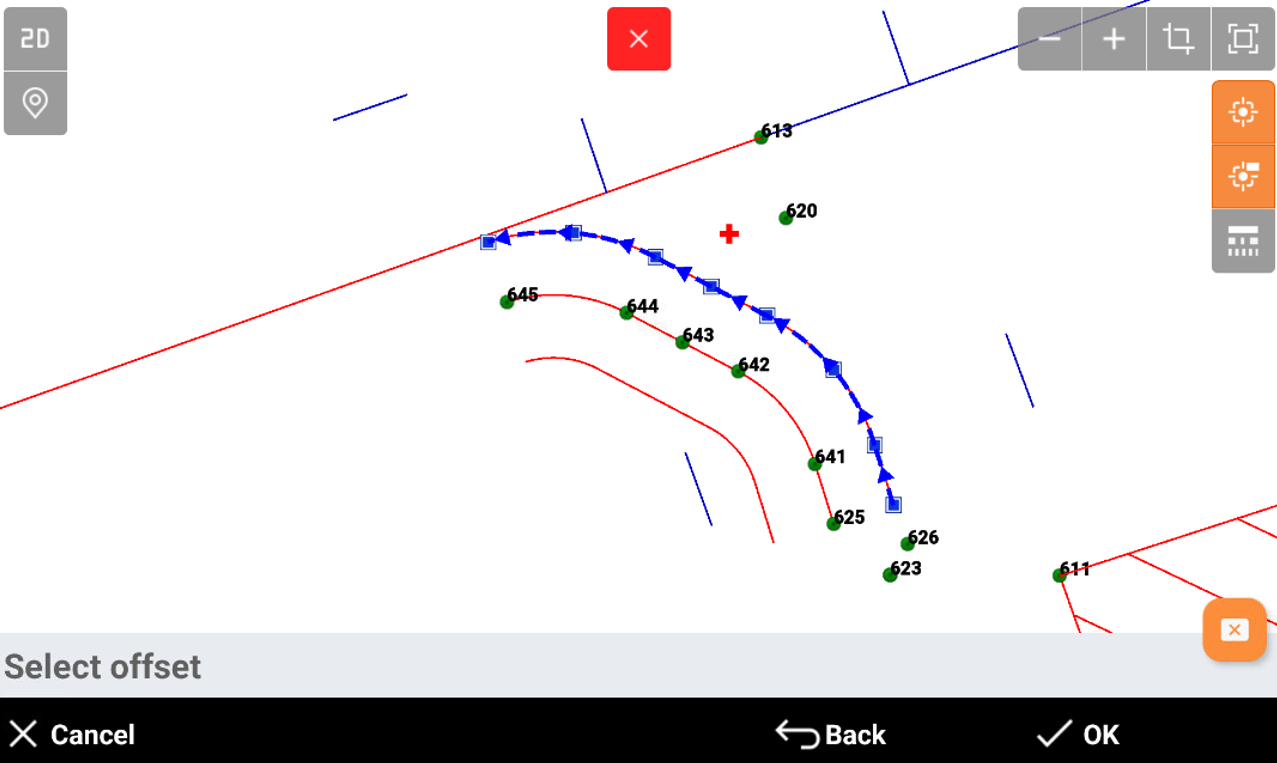

  • Software proposes the two possible options, select the offset direction and click OK.


  • Enter the offset repetition and click OK.
