Reference axis

+BUILD |

• The system is created based on the measurement of a point of origin and the measurement of a second point which defines the direction of the axis.

• From GNSS localization select Reference axis.

• Click Next.

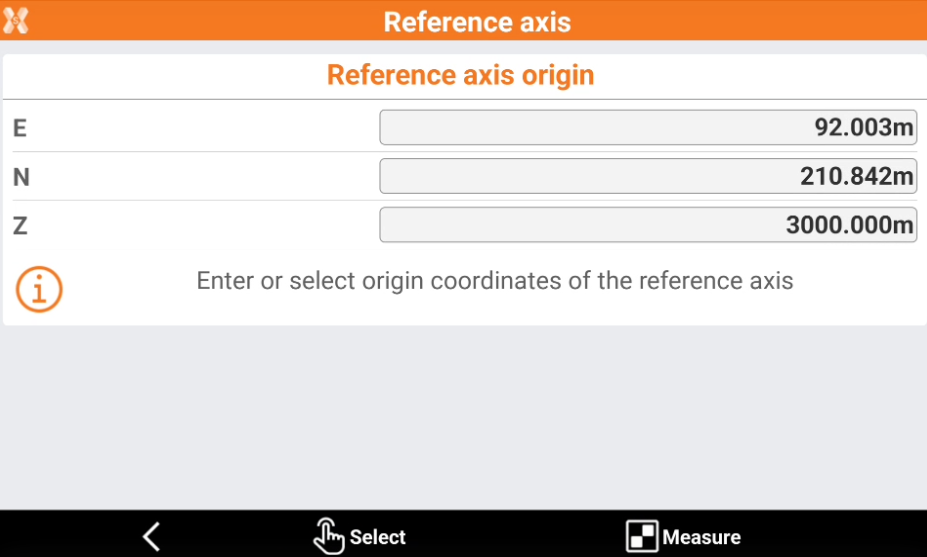

• Enter the coordinates for the Reference axis origin.

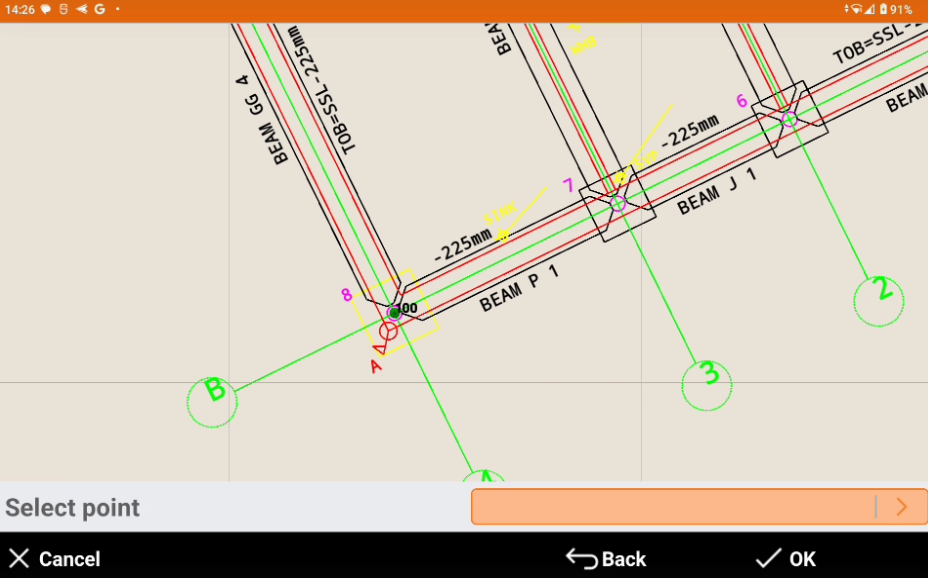

• Click Select to choose the same point from the CAD window.



• Click Measure to measure the reference point with the current GNSS profile.

• Click Measure also in the following page to define the direction of the reference axis.

• Select the calculation method to be used for elevation and click Accept.
