Share a reference point

| |

• It is possible to share a reference point from the reference points list. For the selected point, the information related to coordinates (geographic and plane), code, description and eventually the photo/sketch associated is sent.

• Click Job.

• Click Points/Measurements/Codes.

• Open the Reference points tab.

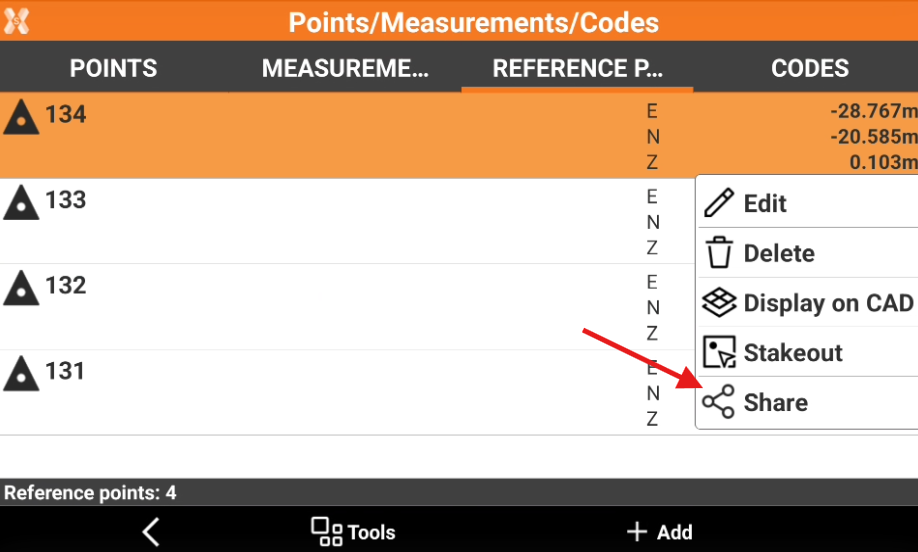

Share a point from point list

The command Share allows to share point information using available Android applications, like email client.

• Select a point from the list and click Share.



• This opens a window with Android applications that is possible to use to share the point. For example click on email application to share the point in an email.

Share a point to X-PAD 365

The command allows to share a reference point in the X-PAD365 chat to contacts.

An X-PAD 365 Professional or Enterprise account is required.

• Open the Points tab.

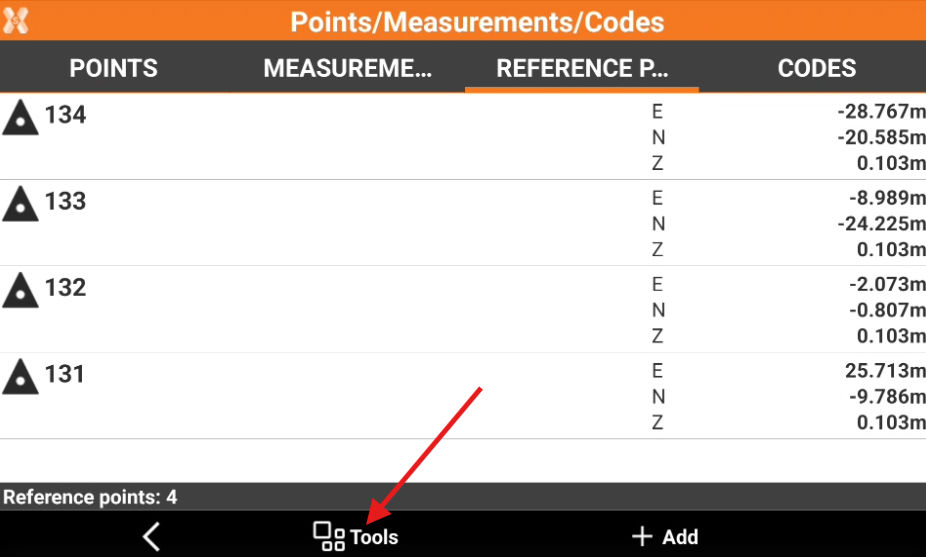

• Click Tools to open the list of available tools.



• Click Save/Load.

• Select Share to X-PAD 365.

• Check the points from the list, or click Tools to use Selection rules or select/deselect all the points.

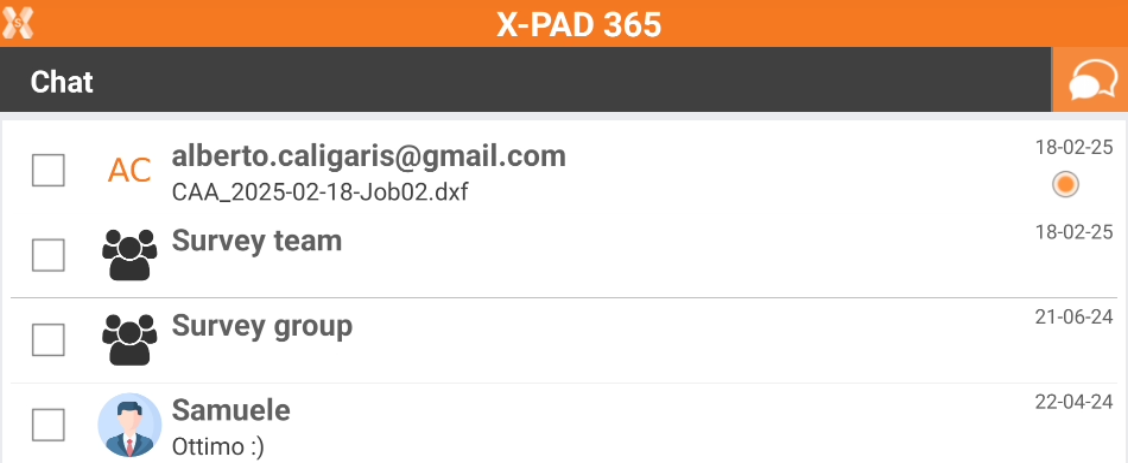

• Click Edit and select the chat from available active chats to share the points with selected contact or within the chat group.
