Stakeout distance

+ BUILD |

• The function allows to stakeout at a defined distance from a reference point.

• Click Stakeout.

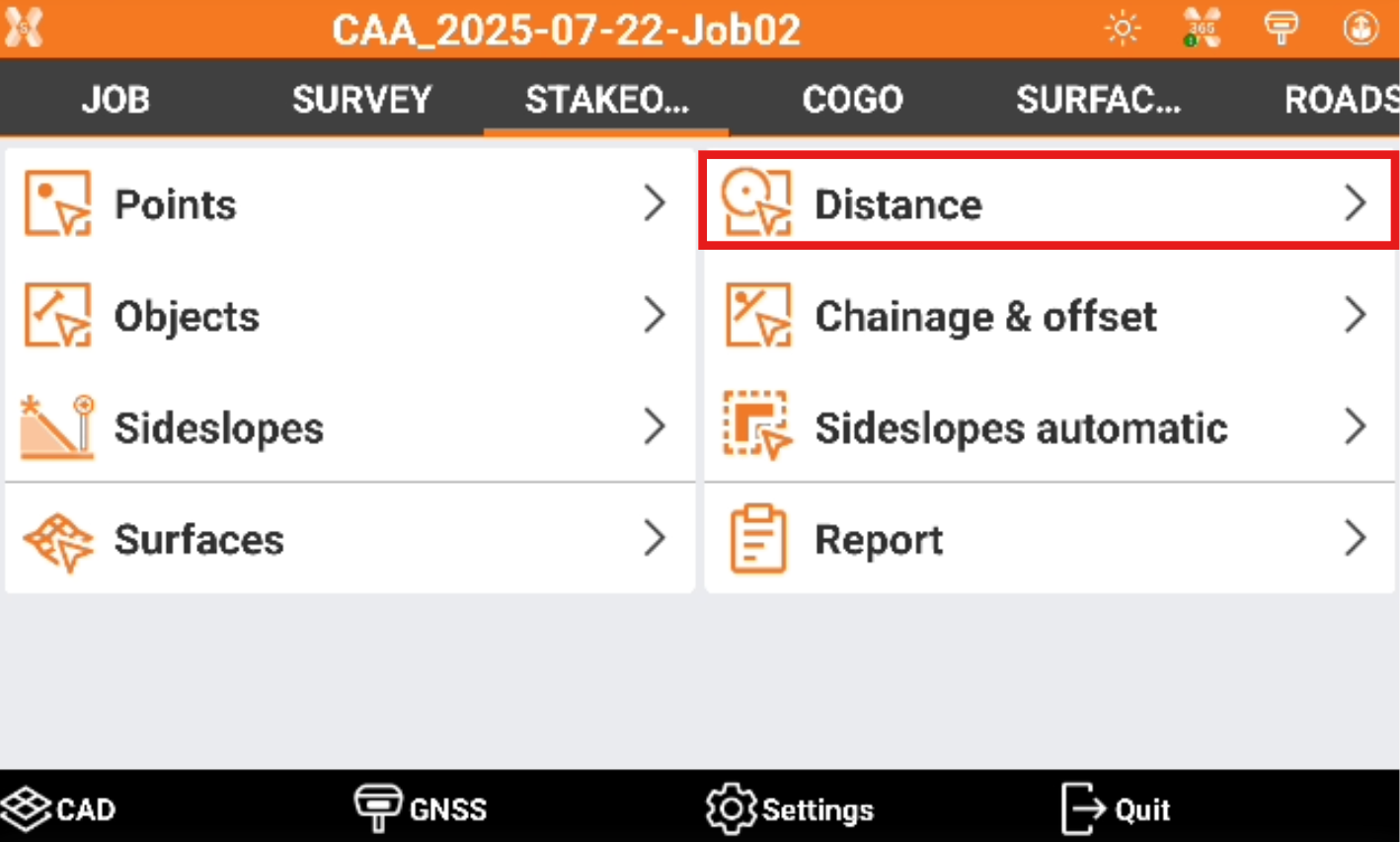

• Click Distance.

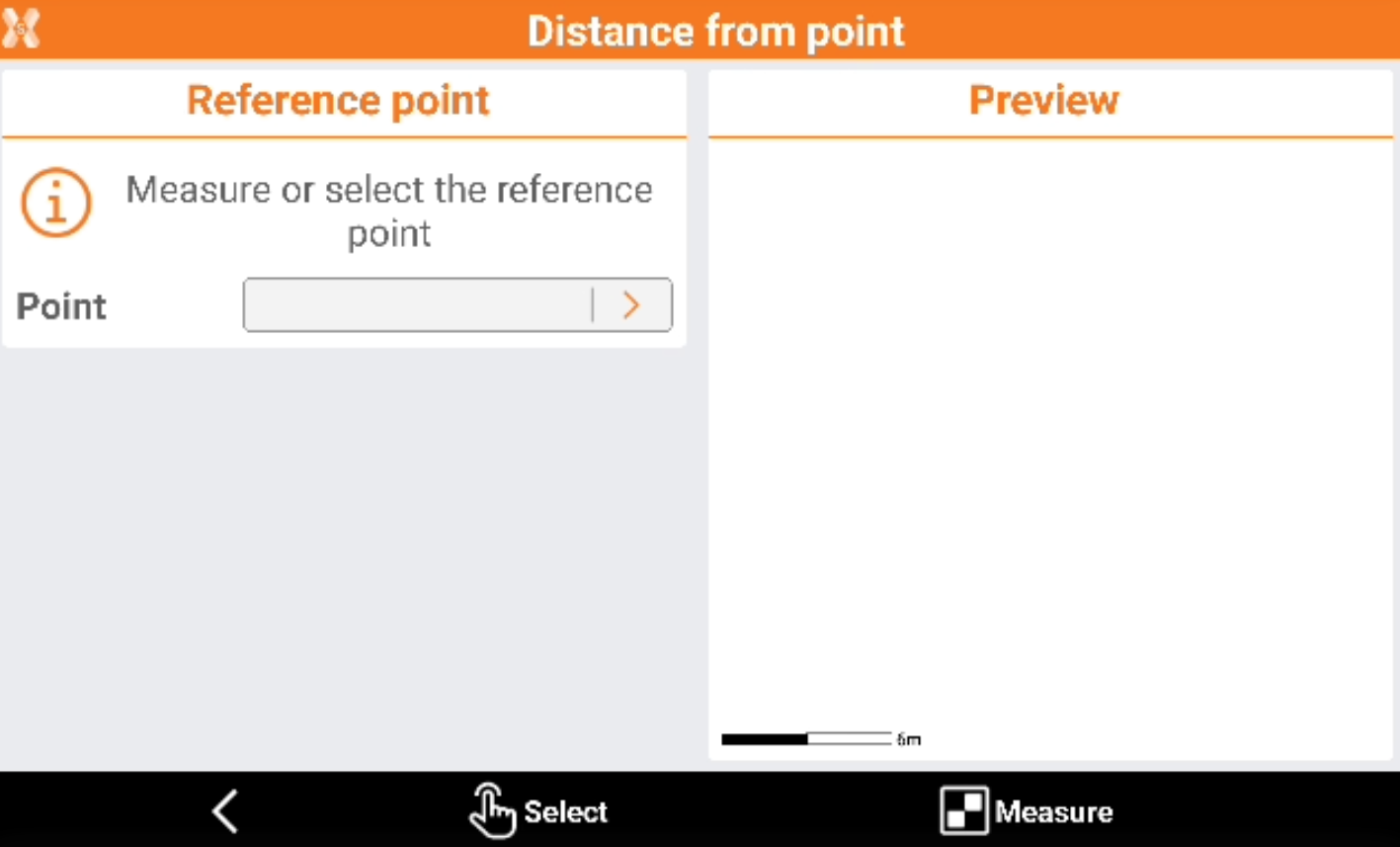

• Select from CAD, from the list of points or measure the reference point.

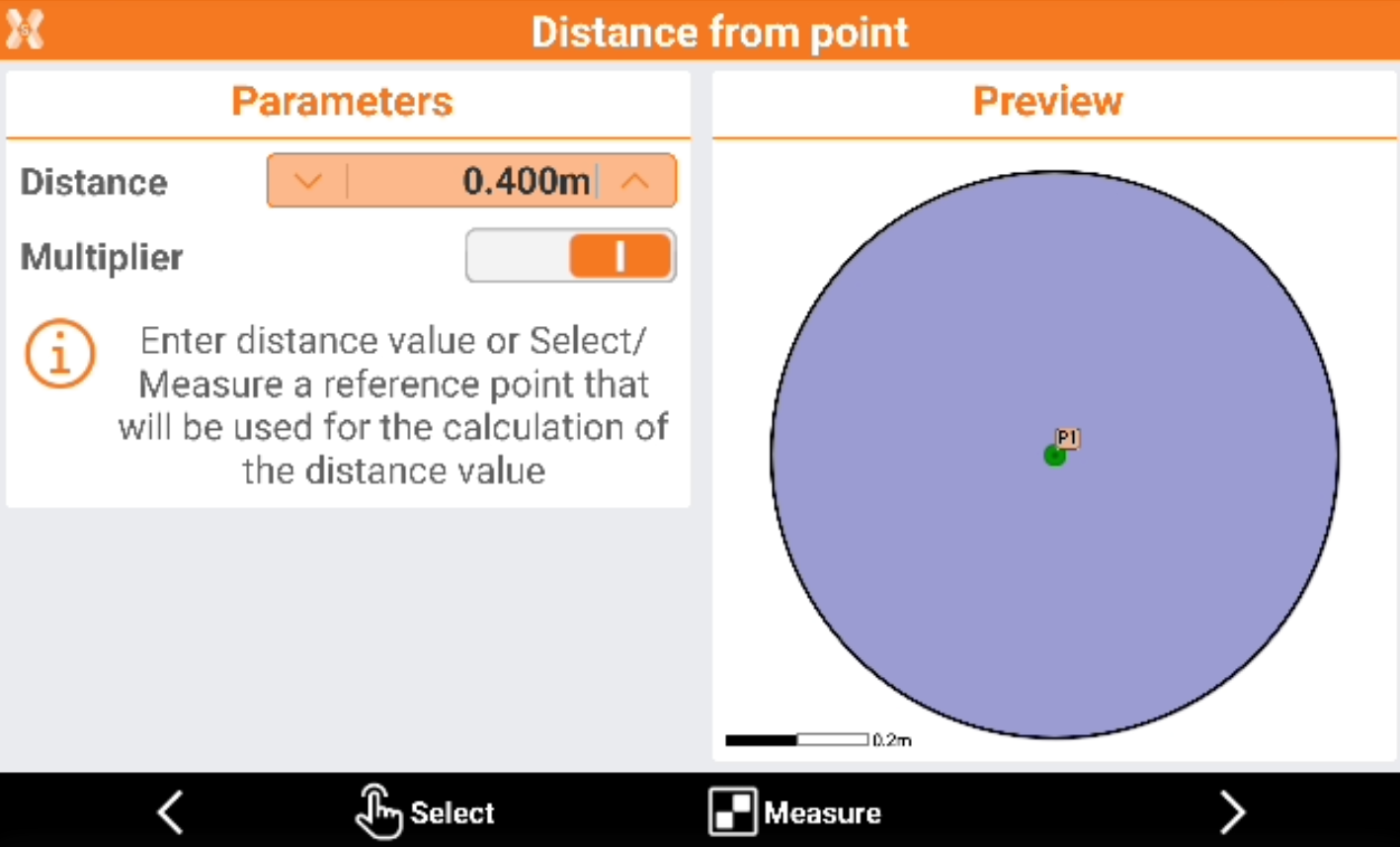

• Enter the stakeout information.



  • Distance: the distance to stakeout from the reference point.

  • Multiplier: enables the multiplier. If enabled allows to stakeout from the reference point at the defined distance with a multiplier factor.

• Click Select or Measure to define the distance from the reference point using another point or a measured point.

• Click Next to stakeout the distance.

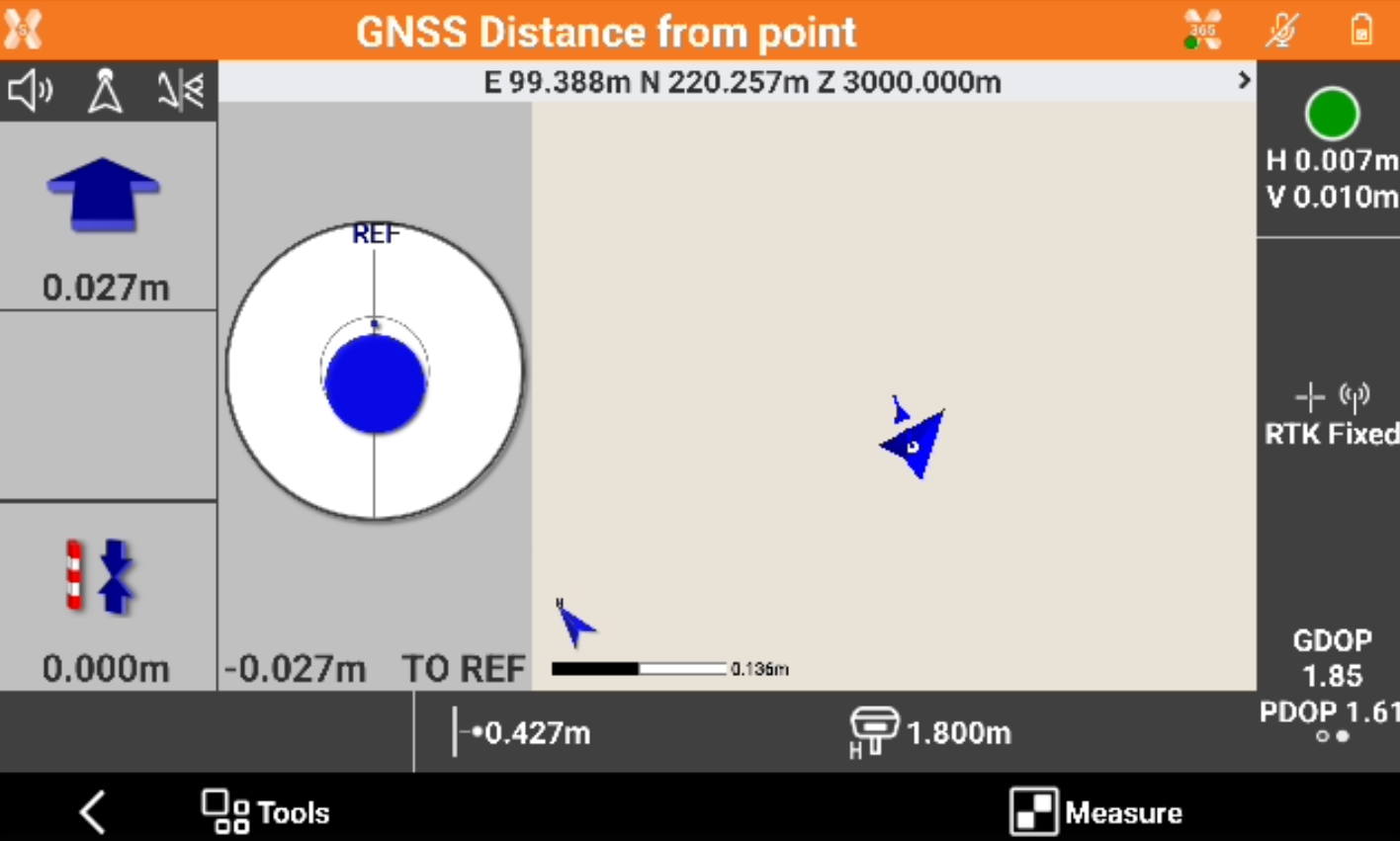

• The software shows the information to stakeout the selected distance from the reference point.

• In case the multiplier was enabled, the software shows also the multiplier factor.
