Stakeout object

| |

• Stakeout with precision along geometric elements such as lines, arcs or drawing elements.

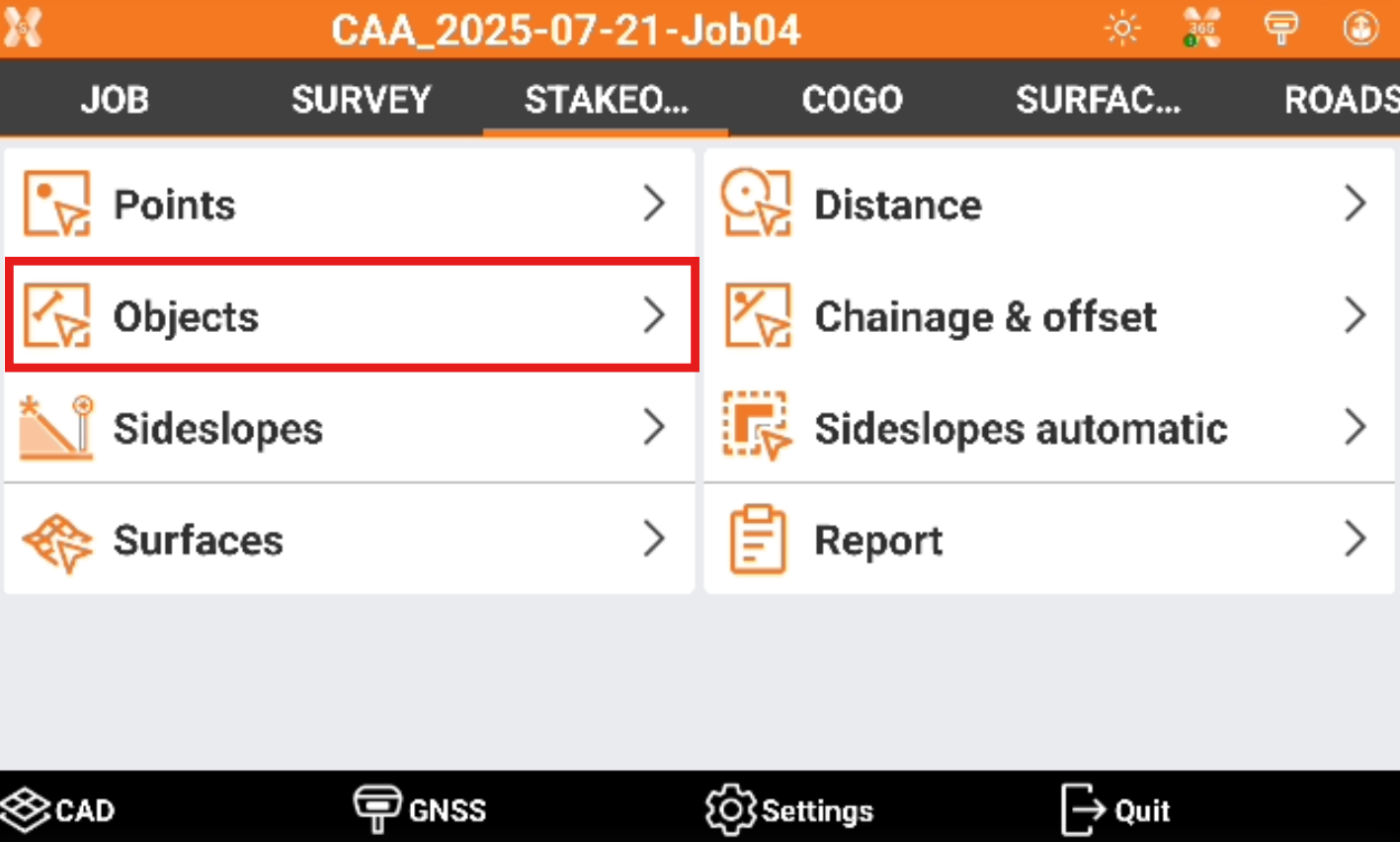

• Click Stakeout.

• Click Object.

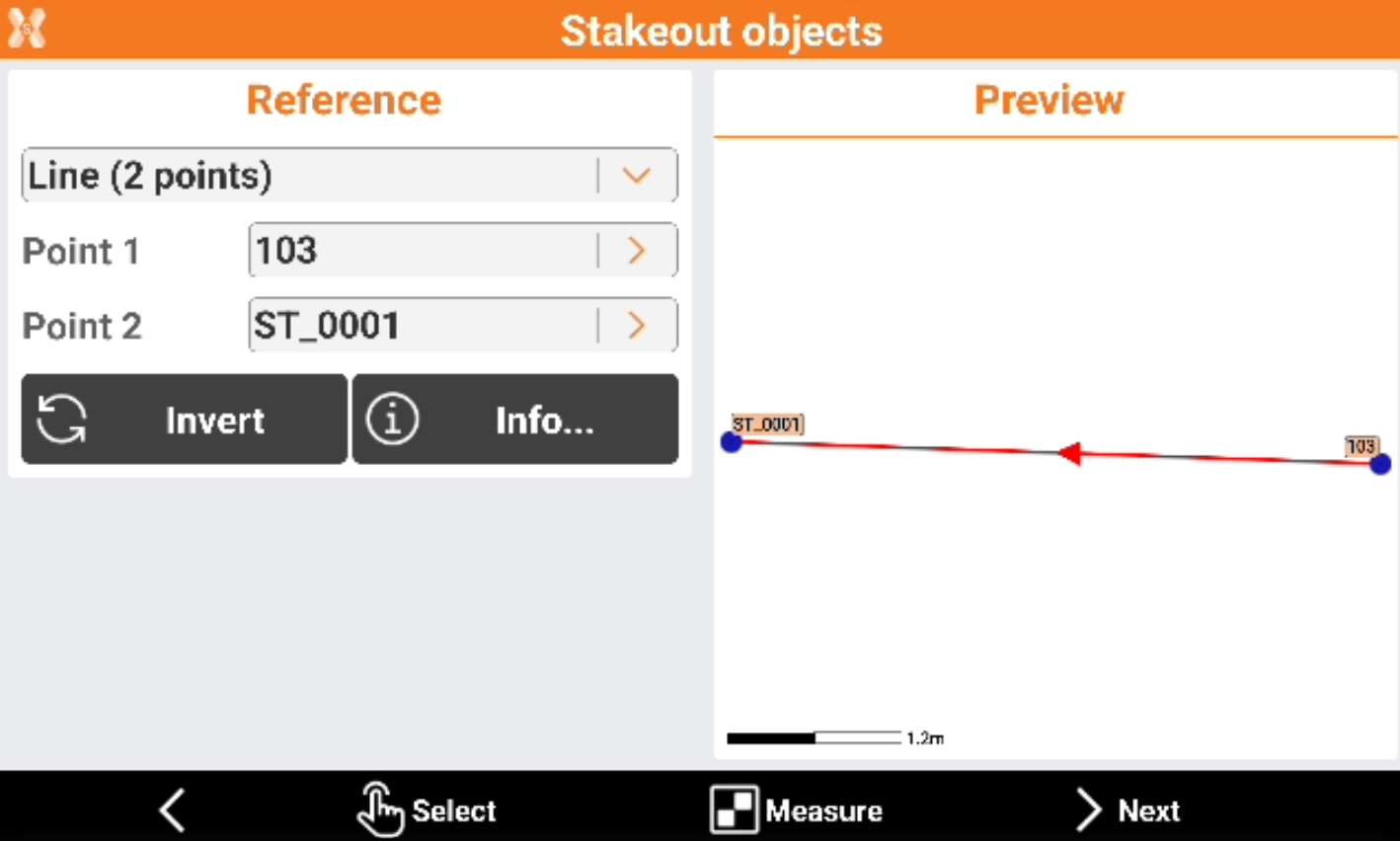

• Select the reference to stakeout.



  • Reference to stakeout.

    • Line (2 points): line defined by two topographic points. Requires to select Point 1 and Point 2.

    • Arc (3 points): arc defined by three topographic points. Requires to select Point 1, Point 2 and Point 3.

    • Arc (2 points+R): arc defined by two topographic points and by the radius. Requires to select Point 1, Point 2 and arc radius.

    • Drawing object: select a line, polyline, arc or circle in the graphic window. This option allows for example to stakeout a drawing element imported.

• Click Invert to invert the reference direction.

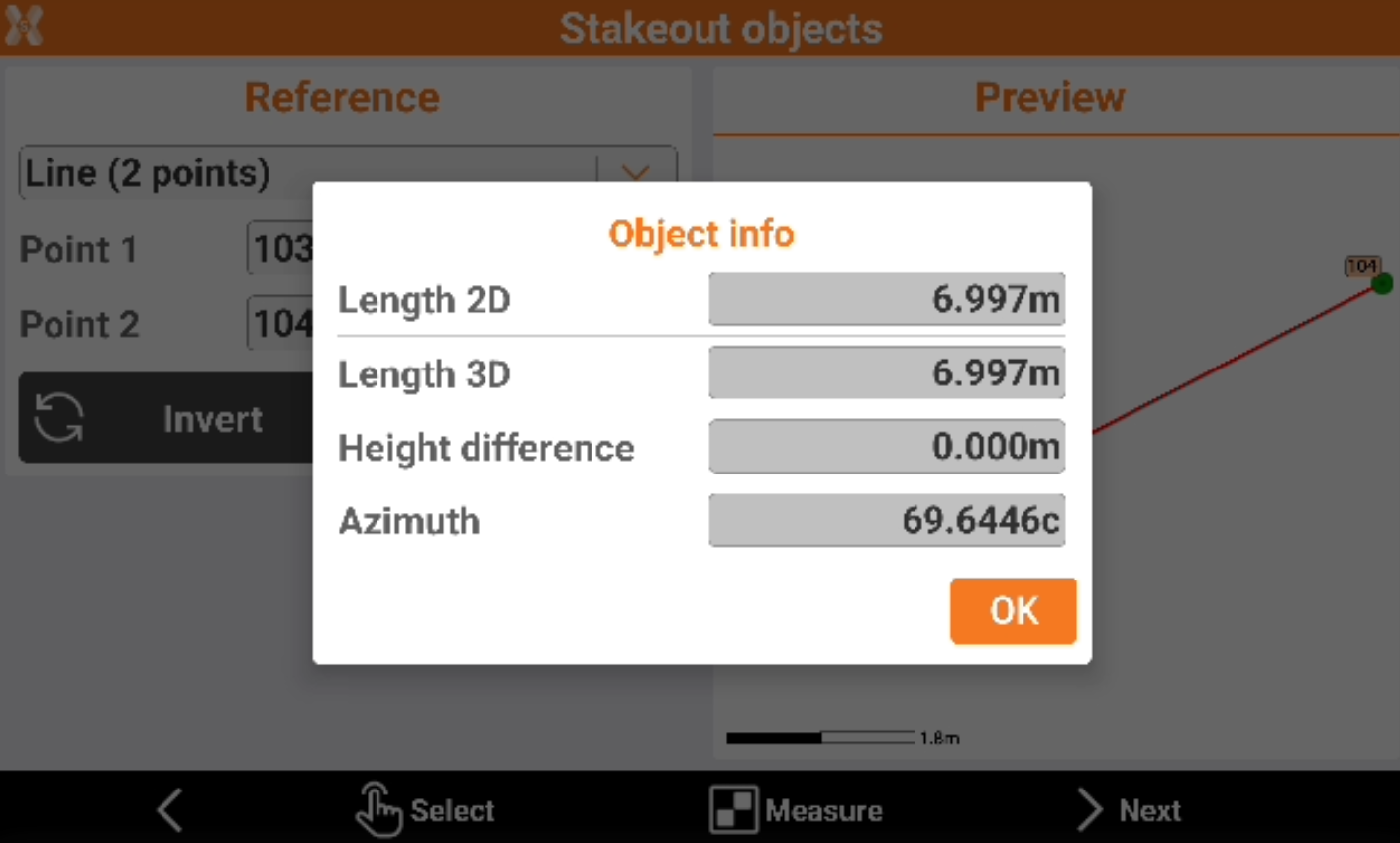

• Click Info to have information on the reference object.



• Click Select to pick the points directly from CAD or click Measure to measure the reference points.

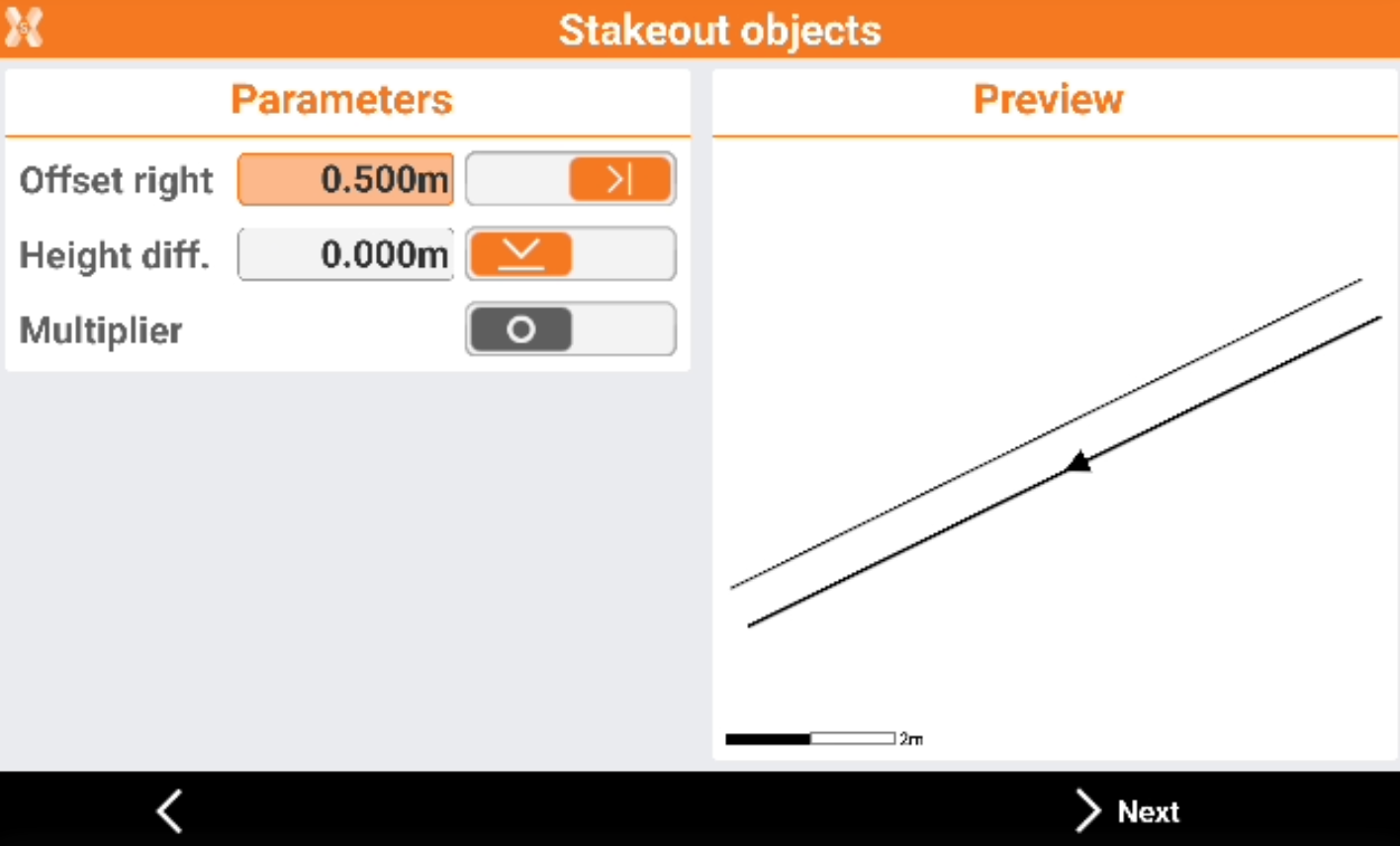

• After the reference object has been selected click Next to define the parameters.



  • Offset: distance to observe referring to reference element. Select if offset is left or right.

  • Height diff.: vertical offset. Start from a reference object and apply a 3D offset. Select if offset is up or down.

  • Multiplier: actives the stakeout of multiple offsets according to the set value of reference offset. When the option is active, the software shows the distance from the nearest offset and displays the multiplication factor of the offset distance.

• Click Next to stakeout the object.

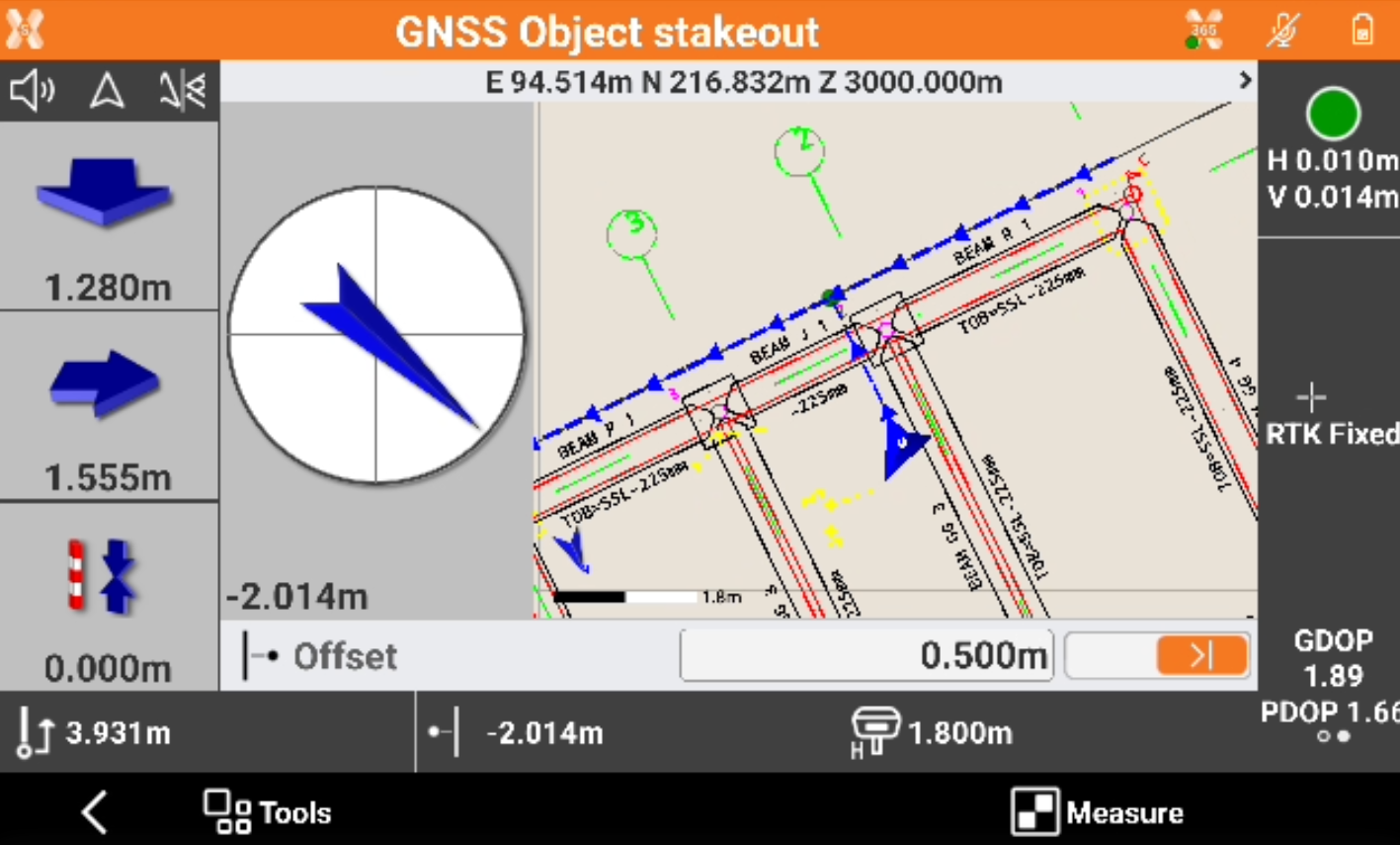

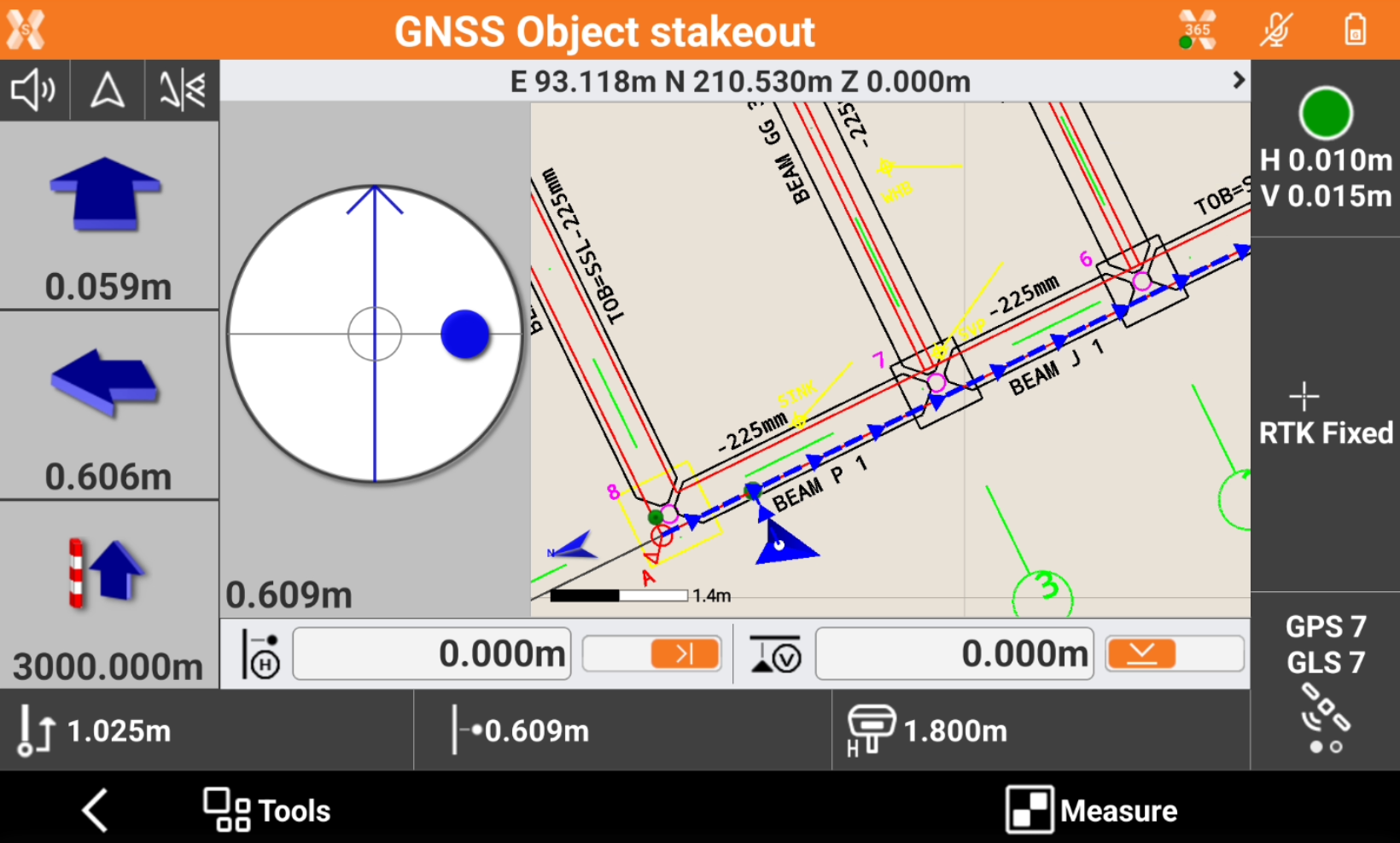

  • Information of stakeout:

    • : visualizes the distance from the end of the object.

    • : visualizes the distance from the beginning of the object.

  • Offset: allows to change directly in the stakeout page the horizontal offset and change the left/right.

• Refer to Stakeout - GNSS and Stakeout - TPS for the commands in this page.

• Tap Measure to start measuring the stakeout point. The acquisition of positions for the number of epochs set in survey parameters starts. The epochs are acquired if the conditions defined for accuracy check are met. Otherwise the software keeps waiting for a manual stop or until the conditions are met.

• When the number of defined epochs is reached, confirm the Stakeout results are displayed.

• Click Accept to store the point.
