Stakeout view mode for GNSS receivers

X-PAD Ultimate Survey 1.png | X-PAD Ultimate Build 1.png | X-PAD Ultimate GO 2.png

  • During stakeout operations it is possible to change the View mode.

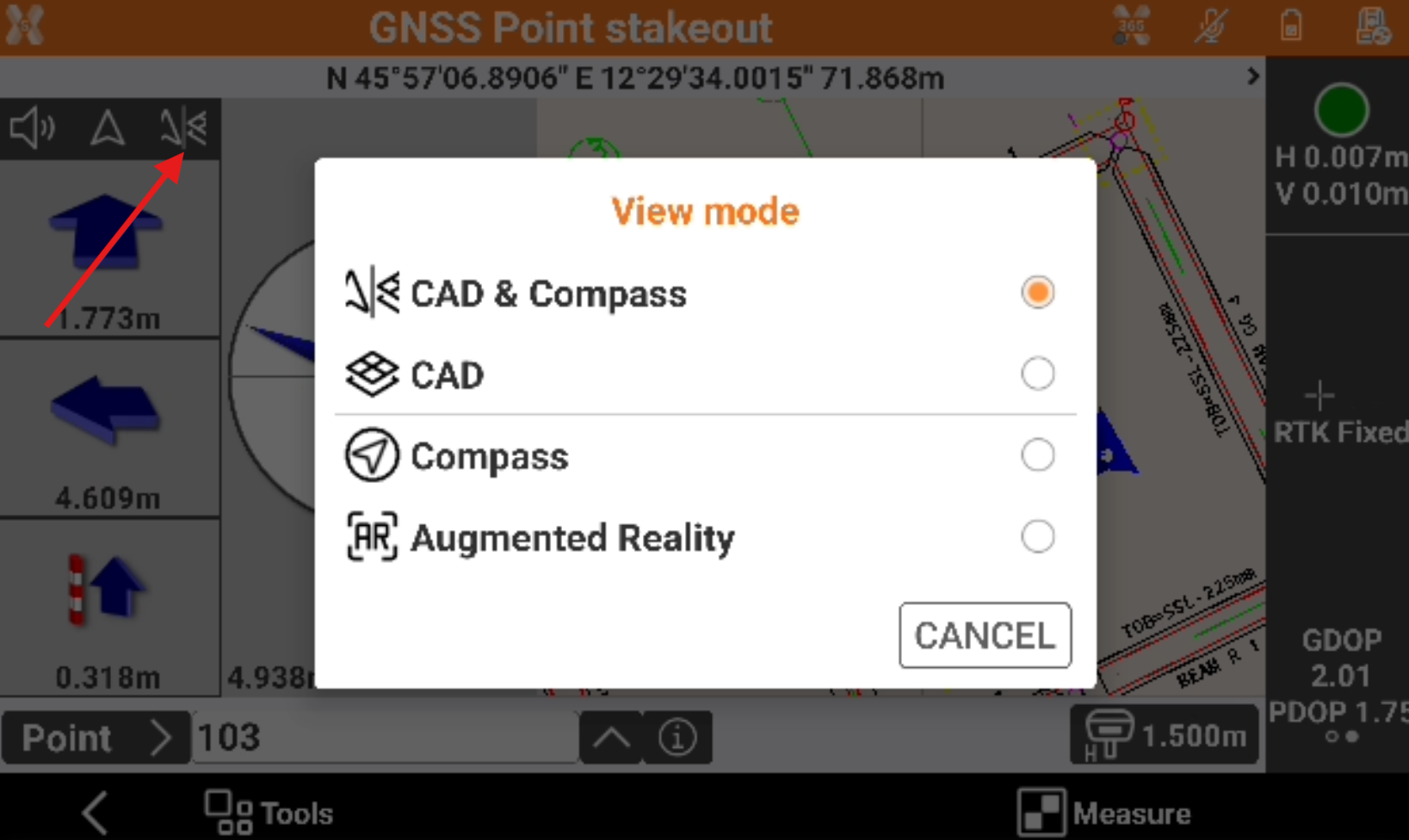

  • Click the corresponding button to change the view mode.

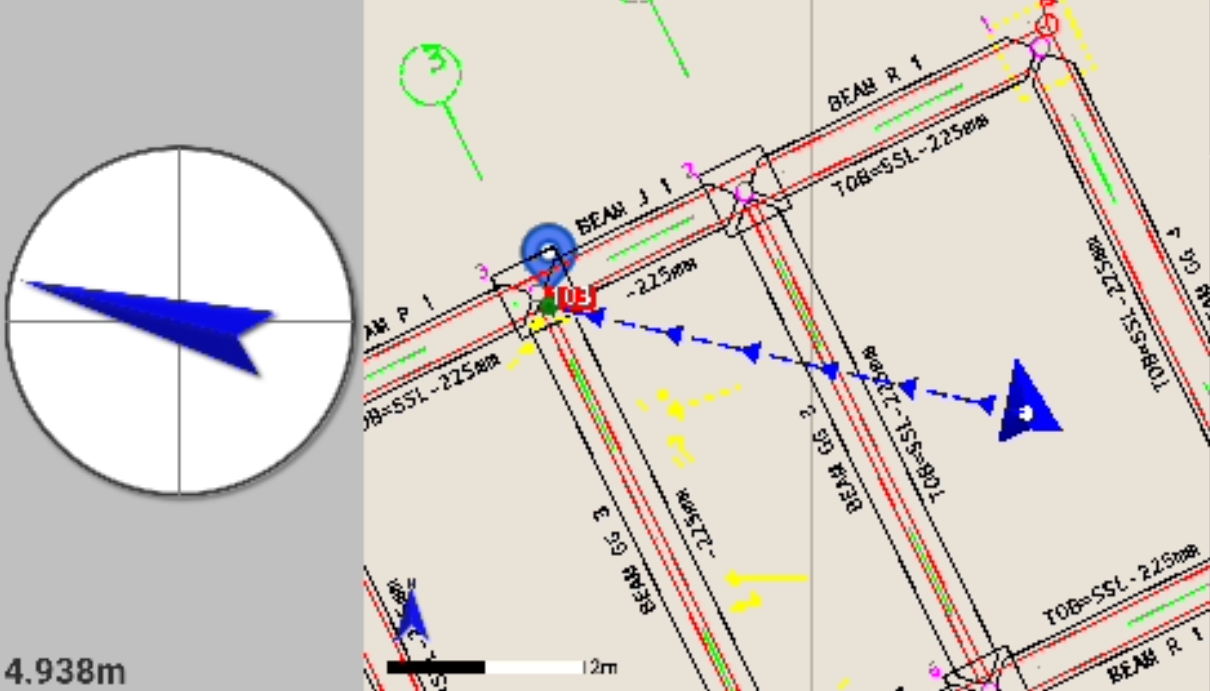

  • CAD & Compass: enables the mixed display that shows distance from the point and the graphical window.

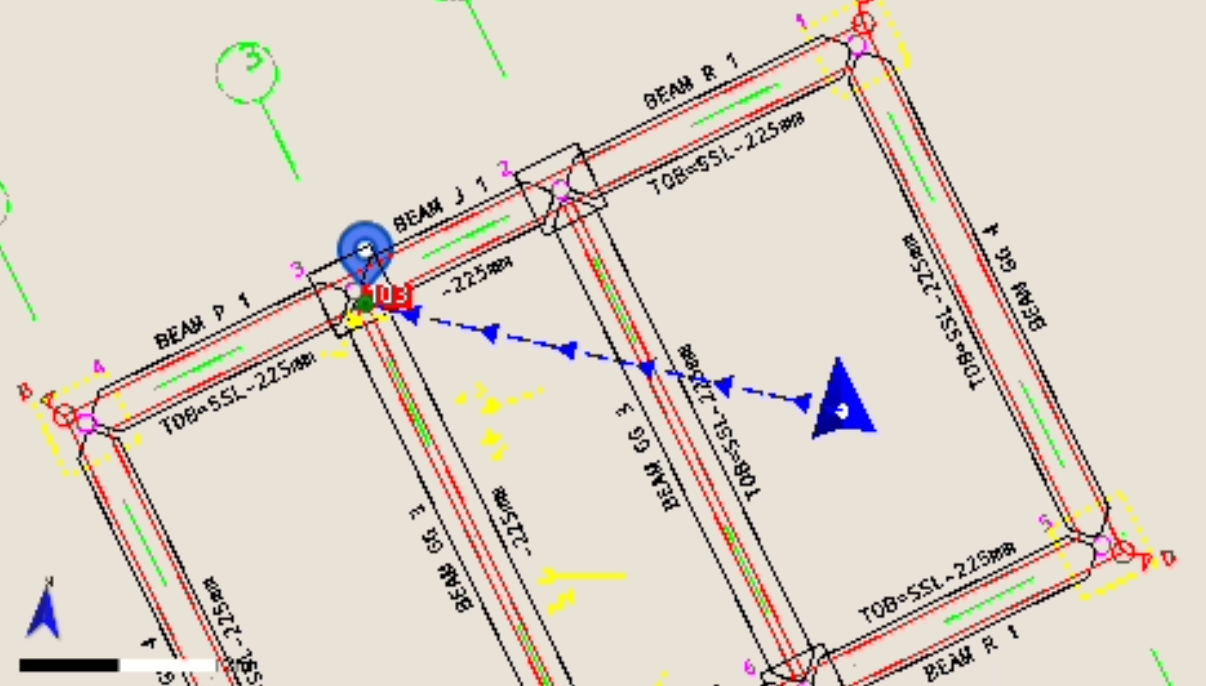

  • CAD: enables the graphic window display.

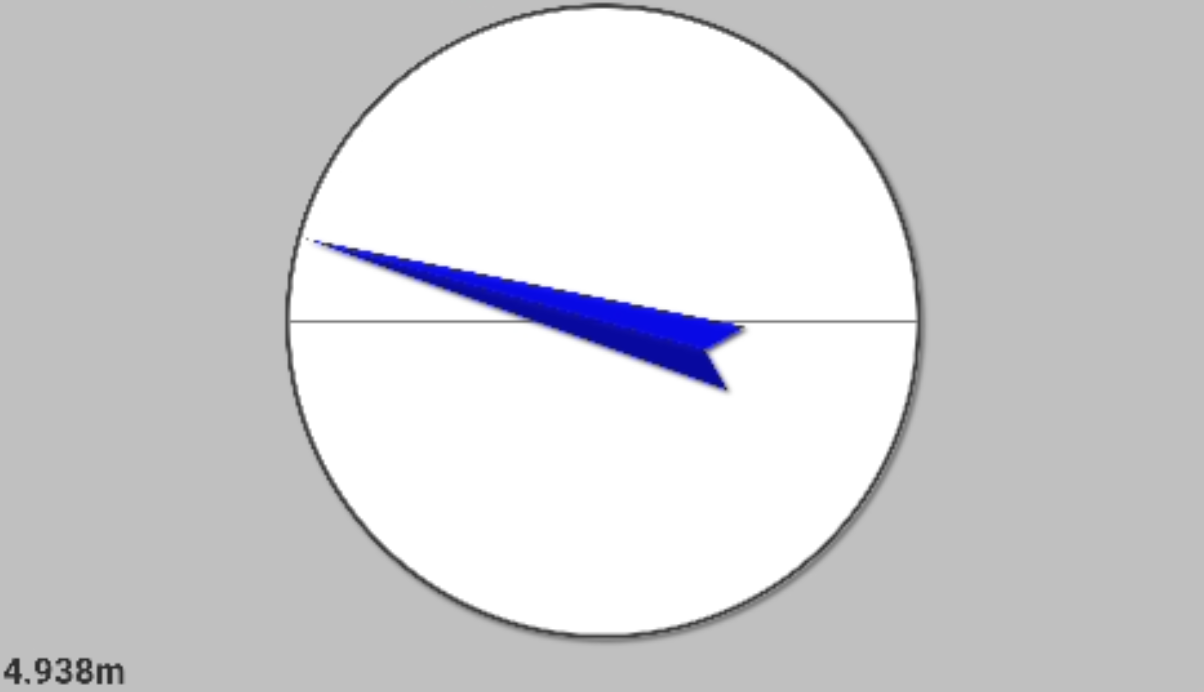

  • Compass: enables the view of analytical mode only, which indicates the distance from the point.

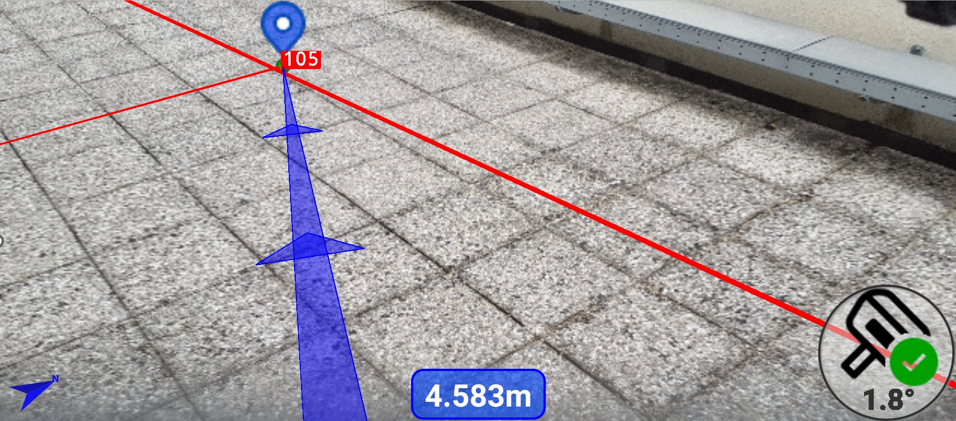

  • Augmented reality: uses the field controller camera to give visual indications to the point to stakeout.
