Surfaces management

+ SURFACE&VOLUME | + SURFACE&VOLUME | + SURFACE&VOLUME

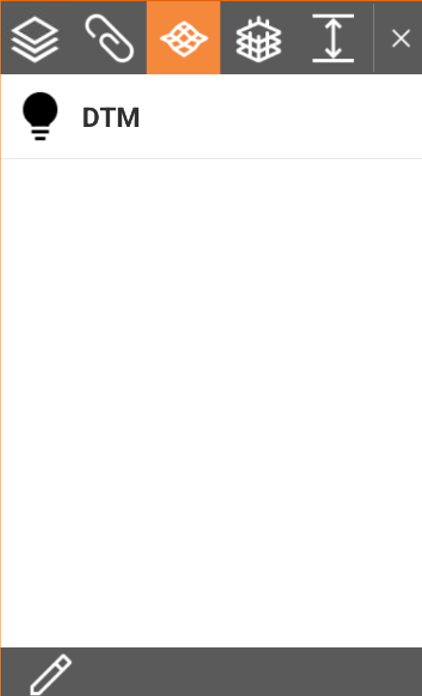

• The Project Manager surface panel allows to manage the surfaces available in the job.

• The panel allows to make them enabled/disabled.

• Open the CAD Project Manager.

• Click Surface .

• The panel shows the list of available surfaces.



Making a surface visible or invisible

• Visible surfaces are marked by .

• Invisible surfaces are marked by .

• Click the symbol to change the visibility of a surface.

Manage surfaces

• To open the Surface page click .



• This page lists the available surfaces. Click icon to change a surface visibility.

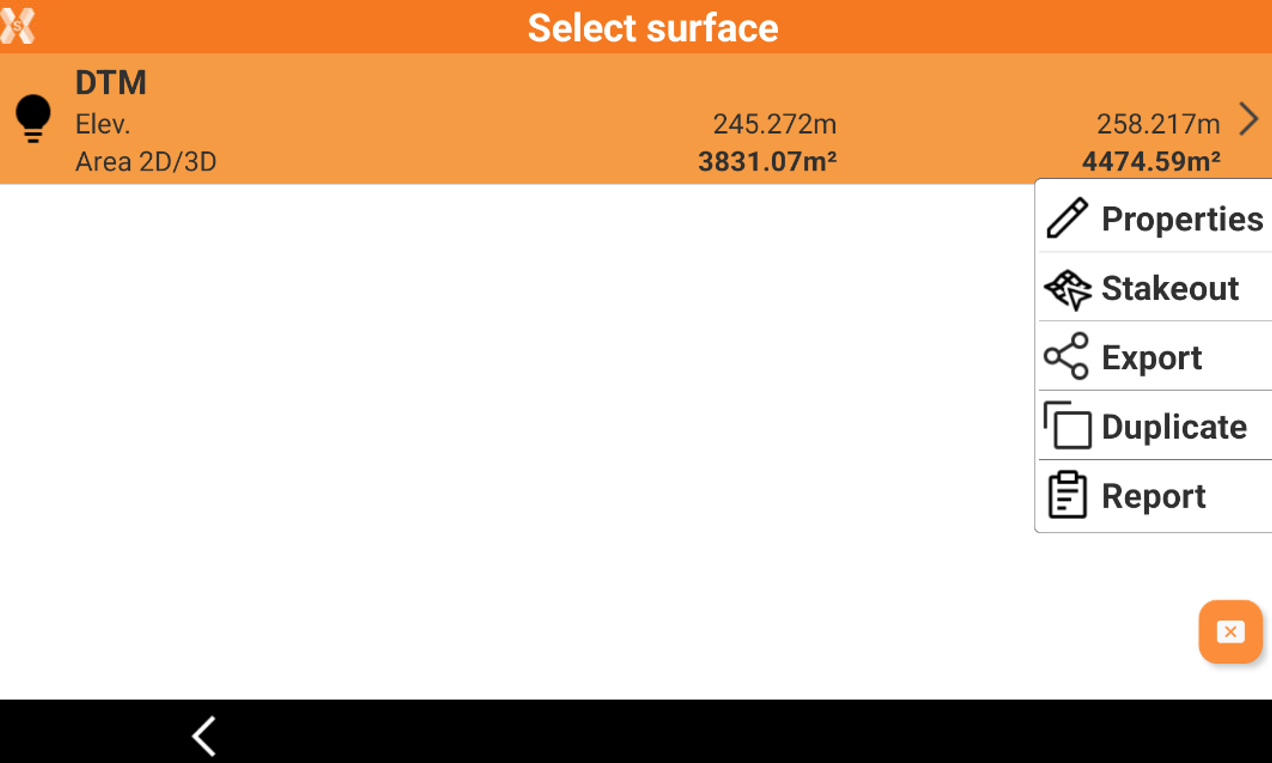

• Click on a surface to open a drop-down menu with different functions:

  • Properties: opens the surface properties page.

  • Stakeout: opens the function to stakeout the selected surface using the current instrument profile.

  • Export: exports the selected surface in an office format (DXF or SBG Geo TRM).

  • Duplicate: duplicates the selected surface.

  • Report: generates a report of the selected surface.
