Vertical system

X-PAD Ultimate Survey 1.png | X-PAD Ultimate Build 1.png | X-PAD Ultimate GO 2.png

  • X- PAD allows to select a vertical system independently from the used projection.

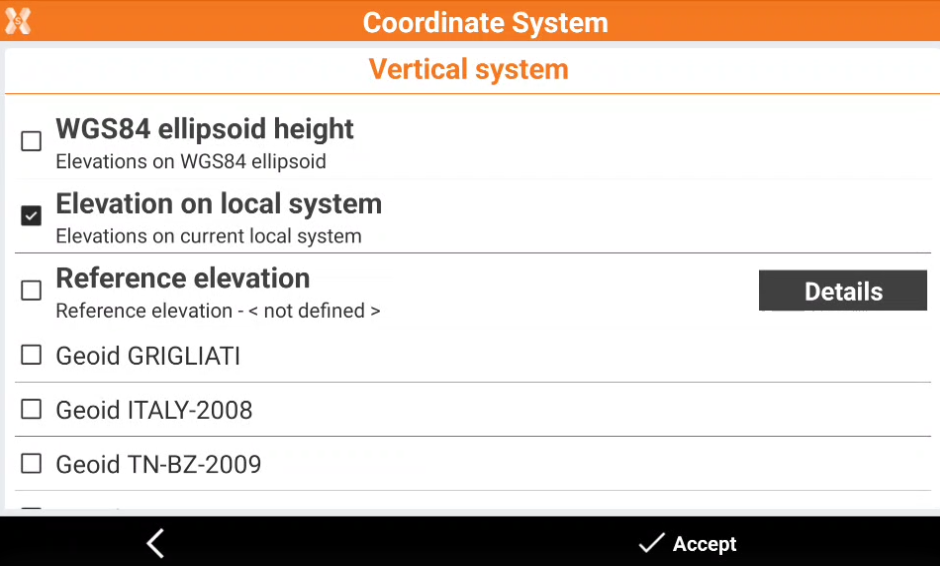

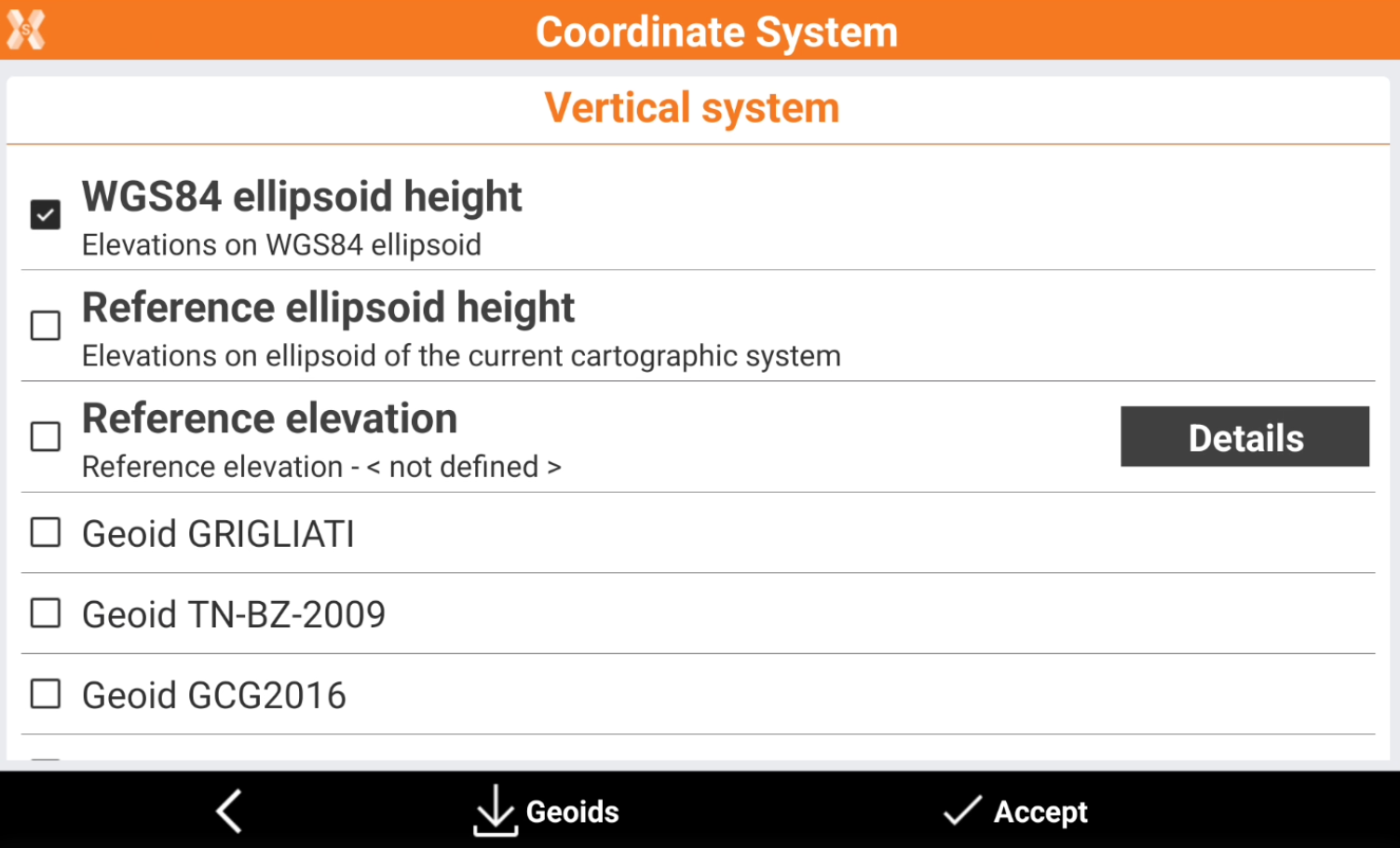

  • At the end of each GNSS localization selection, the Vertical system page is visualized. This page allows to select the vertical system to use.


    • WGS84 ellipsoid height: the elevation is calculated on the WGS84 ellipsoid.

    • Elevation on local system: the elevation is calculation using the parameters from the current local system. For example if a single point or site calibration local systems have been calculated, the elevation is calculated from the local system parameters.

    • Reference elevation: allows to define a reference elevation. Click Details to measure a GNSS point and assign to it a reference elevation. The elevations will be calculated referred to a plane passing by this point.

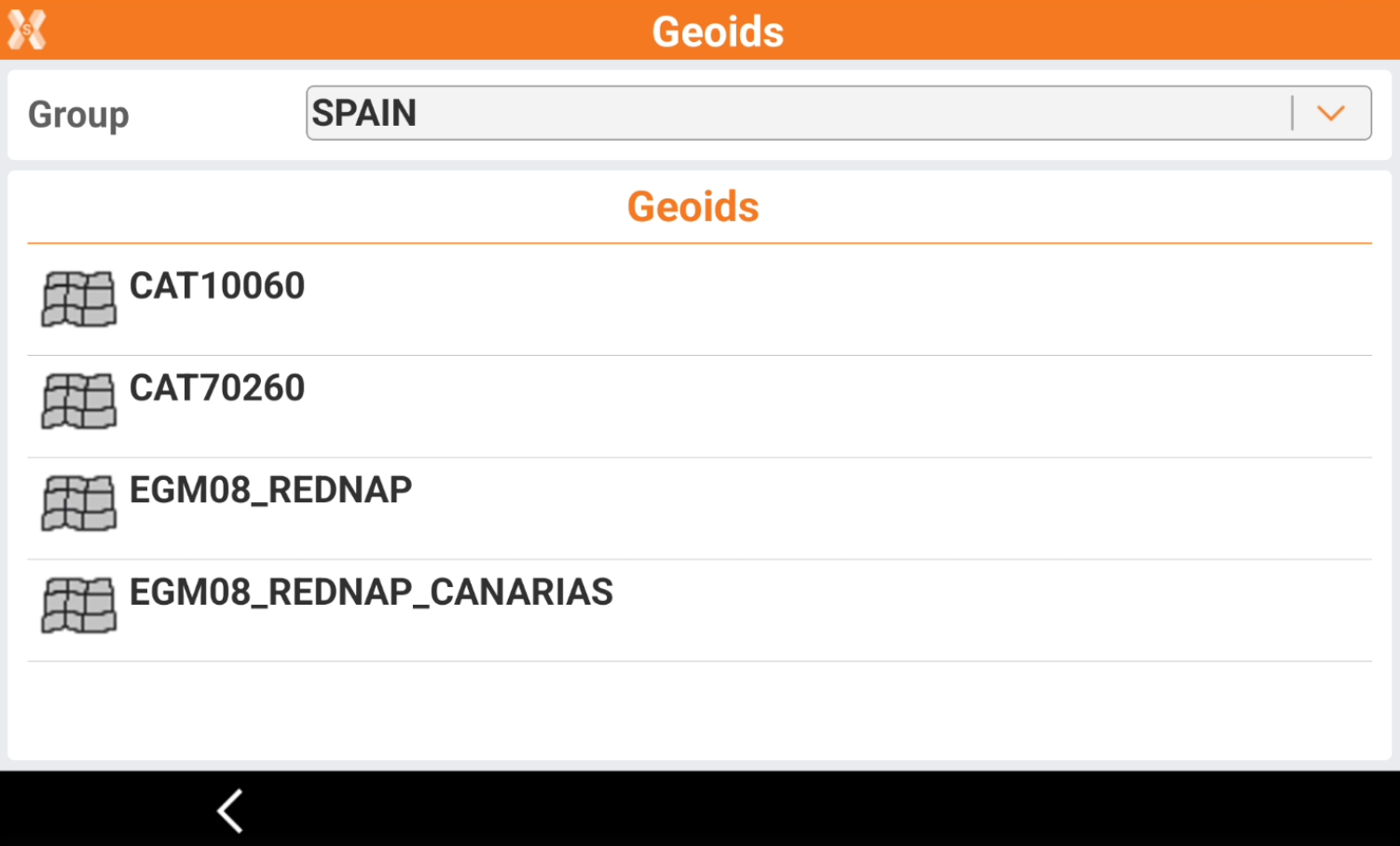

    • Geoid: allows to calculate the elevation over the sea level using a geoid. In order to get geoids from your country you must download the corresponding country package.
