X-pole pole height

X-PAD Ultimate Survey 1.png + X-POLE | X-PAD Ultimate Build 1.png + X-POLE

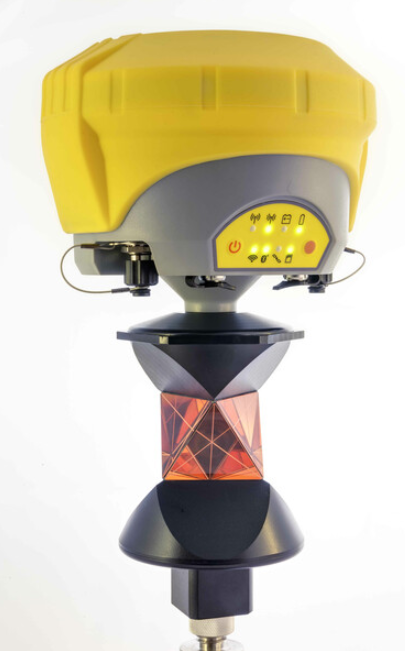

  • X-Pole system requires the installation of the GPS receiver over the prism.


  • The height of the GPS receiver is then the height of the pole plus the distance between the center of the prism and the reference point of the receiver.

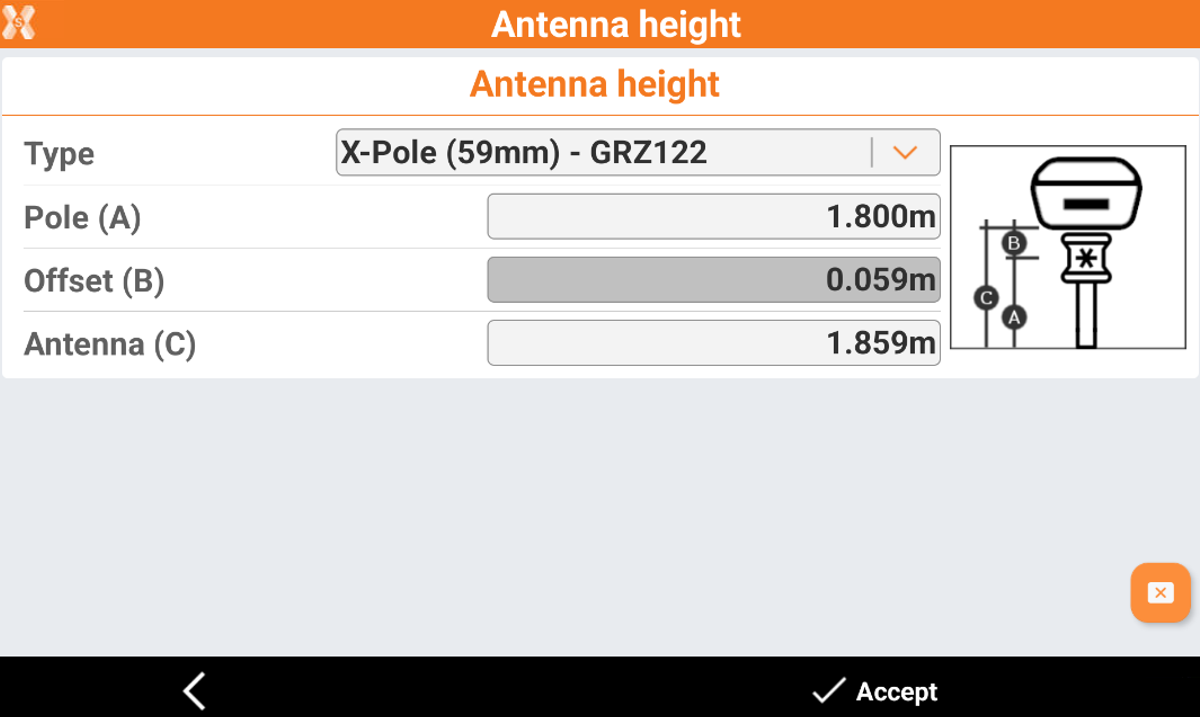

  • When starting X-Pole system, the pole height of the receiver is automatically managed keeping in consideration the offset between center of the prism and receiver.

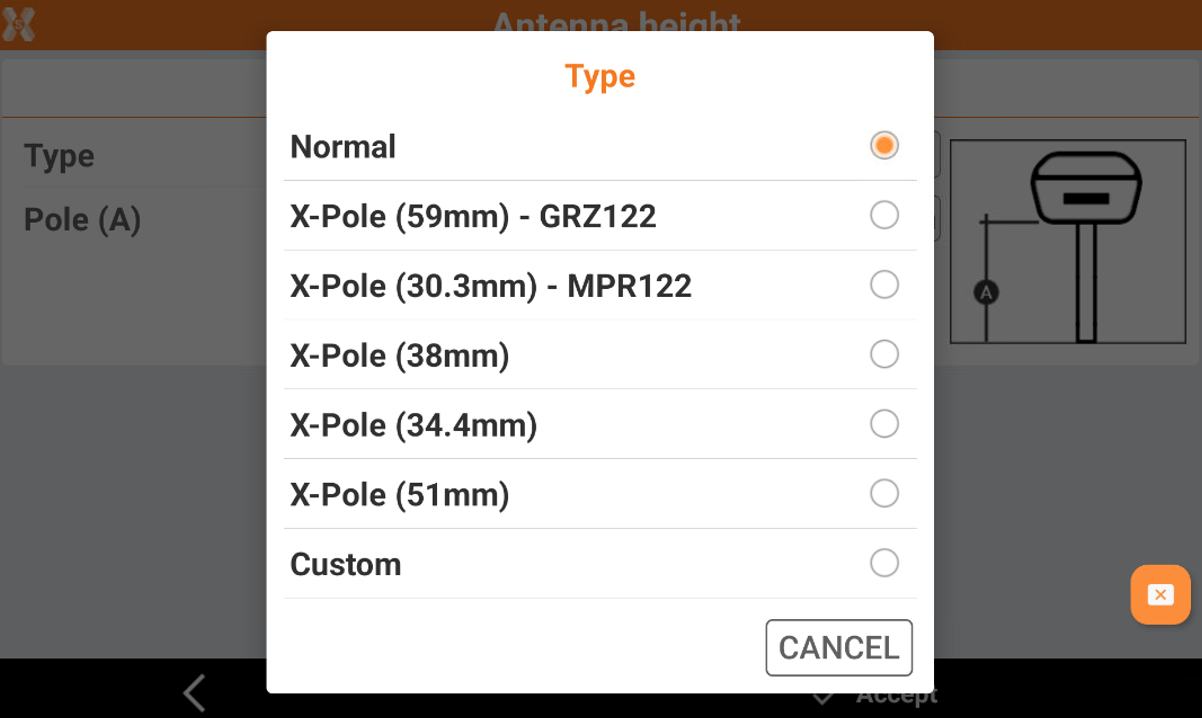

  • When you modify the pole height, a window appears allowing to specify the correct height to avoid errors.
