Antenna manager

  • When working with a single base station, it is important that the rover GNSS receiver adjust the base position by its phase center offset.

  • If working with a local base with a GNSS receiver not from GeoMax, the antenna phase center information is not available. In this case it is necessary to create the antenna. Instead GeoMax GNSS receiver are preloaded.

  • This do not apply when the connection is to an NTRIP caster, even if corrections are coming from a single antenna, because usually NTRIP caster provides a ADVNULLANTENNA.

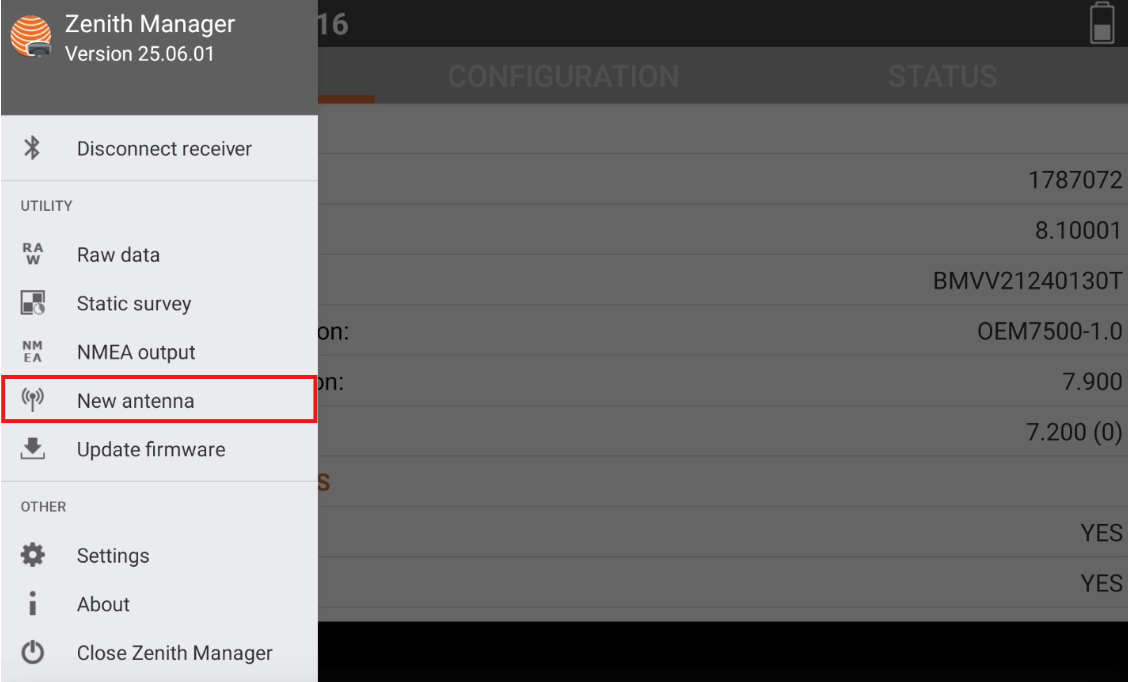

  • To create a custom antenna in the database click New Antenna from the toolbar.

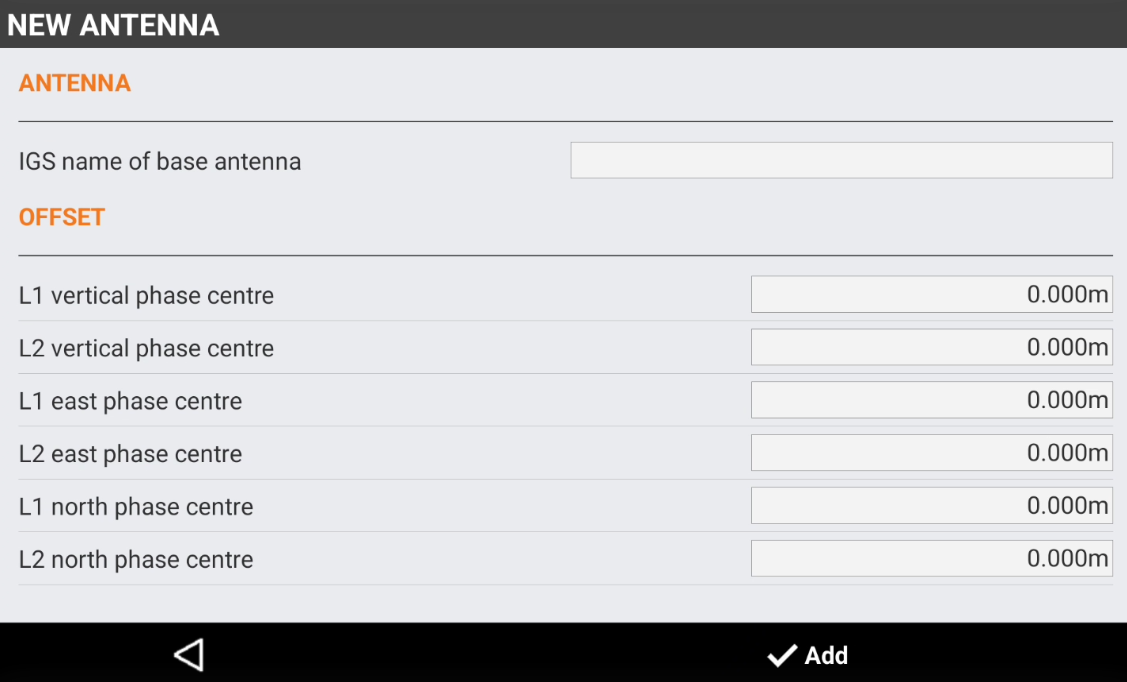

  • Enter the antenna parameters.


You can find the antenna parameters in different online database, for example in Antenna Calibrations
