Connection to Zenith Manager
Zenith Manager for Windows
Turn on the Zenith16/40 receiver.

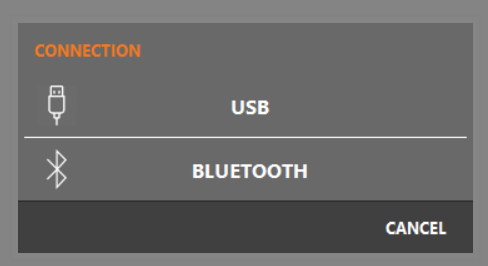

Click Connect and select bluetooth.

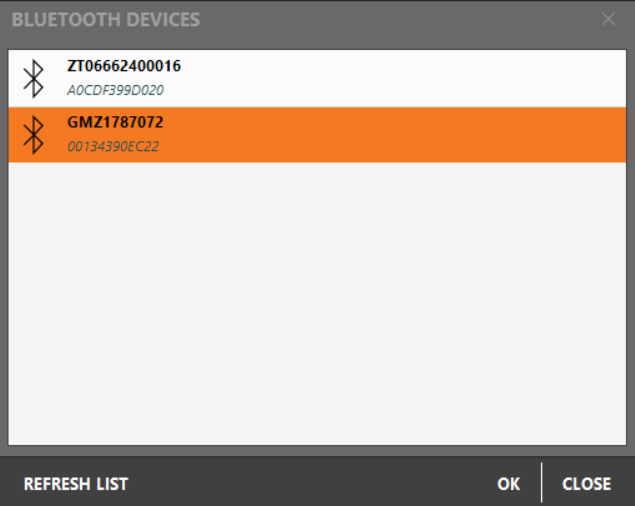

Select the Zenith16 receiver and click OK.

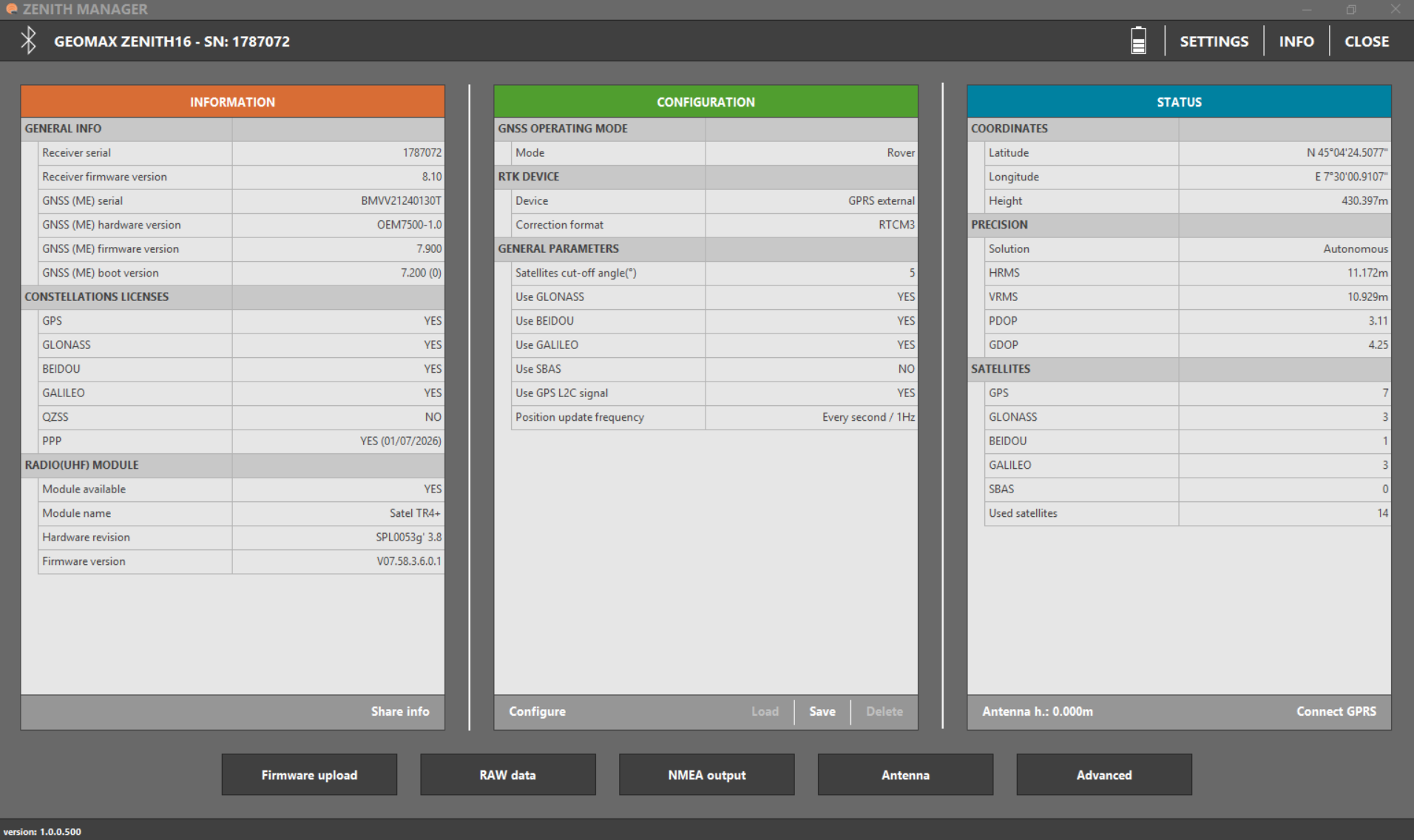

The software shows the receiver status.
Information: shows the information of the GNSS receiver.
Configuration: shows the current configuration of the receiver.
Status: shows the current status and position of the receiver.
The software offers some commands to configure the receiver and manage the receiver.
Share info: to save the receiver information on a file that is possible to share.
Configure: allows to configure the receiver.
Antenna h: allows to define the GNSS receiver antenna height.
Connect/disconnect GPRS: available after receiver is configured to connect to a NTRIP service. Allows to connect/disconnect to NTRIP caster to receive RTK corrections.
Load/Save/Delete: allows to load a saved instrument profile, to save the current profile and to delete one saved profile.
The buttons allows to perform different operations:
Firmware upload: to upload a new firmware to the receiver.
Raw data: to download raw data recorded in the microSD card.
NMEA output: to start the NMEA output.
Antenna: to create new antenna models to the receiver database.
Advanced: to upload new license keys.
Zenith Manager for Android
Turn on the Zenith16/40 receiver.
Click Connect receiver.

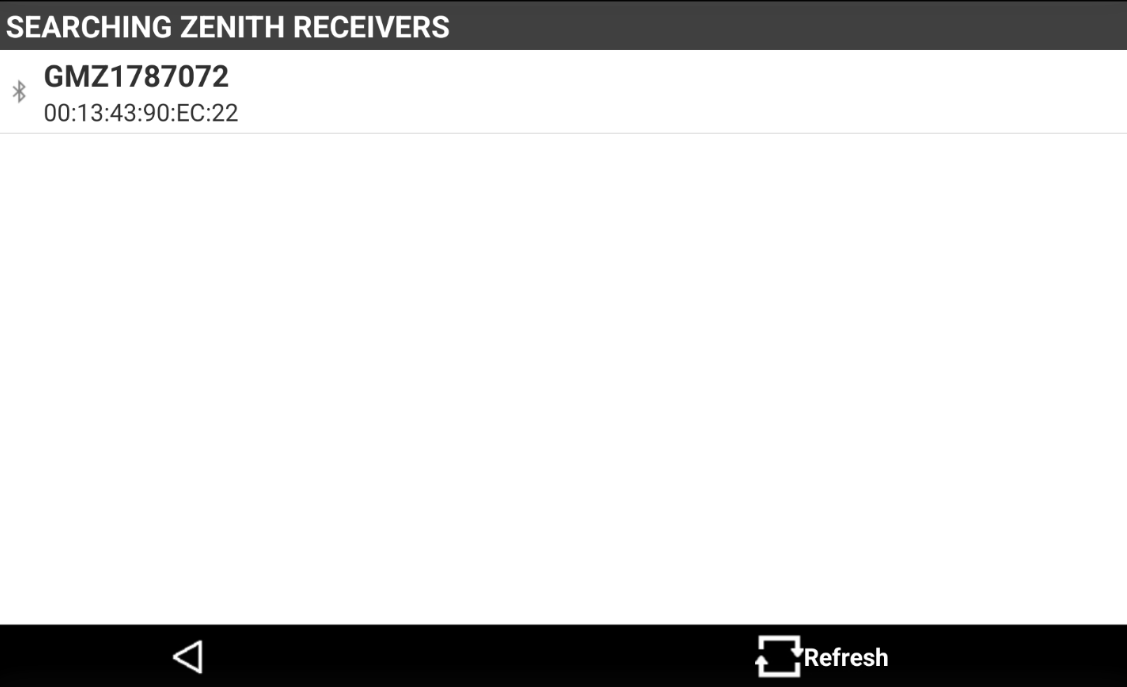

Click Search and select the serial number of the instrument.

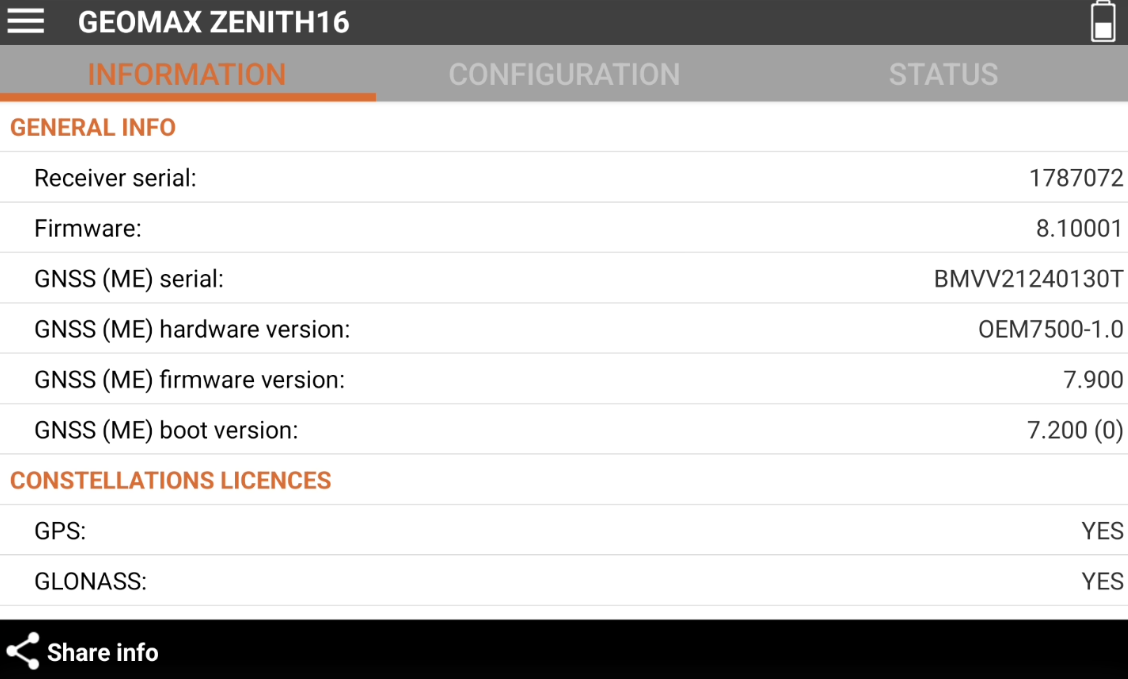

Receiver is connected.
Information: shows the information of the GNSS receiver.
Configuration: shows the current configuration of the receiver.
Status: shows the current status and position of the receiver.
The software offers some commands to configure the receiver and stream the NMEA.
Share info: to save the receiver information on a file that is possible to share.
Configure: allows to configure the receiver.
Connect/disconnect GPRS: available after receiver is configured to connect to a NTRIP service. Allows to connect/disconnect to NTRIP caster to receive RTK corrections.
Load/Save: allows to load a saved instrument profile and to save the current profile.
Antenna h: to modify the height of the antenna.
The toolbar allows to perform different operations:
Firmware upload: to upload a new firmware to the receiver.
Raw data: to download raw data recorded in the microSD card.
Static survey: to start static survey from Zenith Manager.
NMEA output: to start the NMEA output.
New antenna: to create new antenna models to the receiver database.
Advanced: to upload new license keys.
